Prod Model: |
LMCK185-10 |
Standards: |
IEC60044-1; IEC 61869-2; Ntc 2205; GB1208-2006; an |
Accuracy Class: |
0.5%, 1% |
Range Of Primary Rated Current: |
300-3000A |
Range Of Rated Load: |
≤25va |
Rated Frequency: |
50/60Hz |
Rated Secondary Current: |
5A or 1A |
Safety Factor Rating: |
(Fs) <10 |
Output Signal: |
1A, 5A, 333mv, 1V or 5V(Customized) |
Cable Length: |
2.5m, 5m, 10m(Customized) |
Aperture (mm): |
Φ185 |
Application: |
Instrument |
Type: |
Current Transformer |
Phase: |
Single |
Product Description

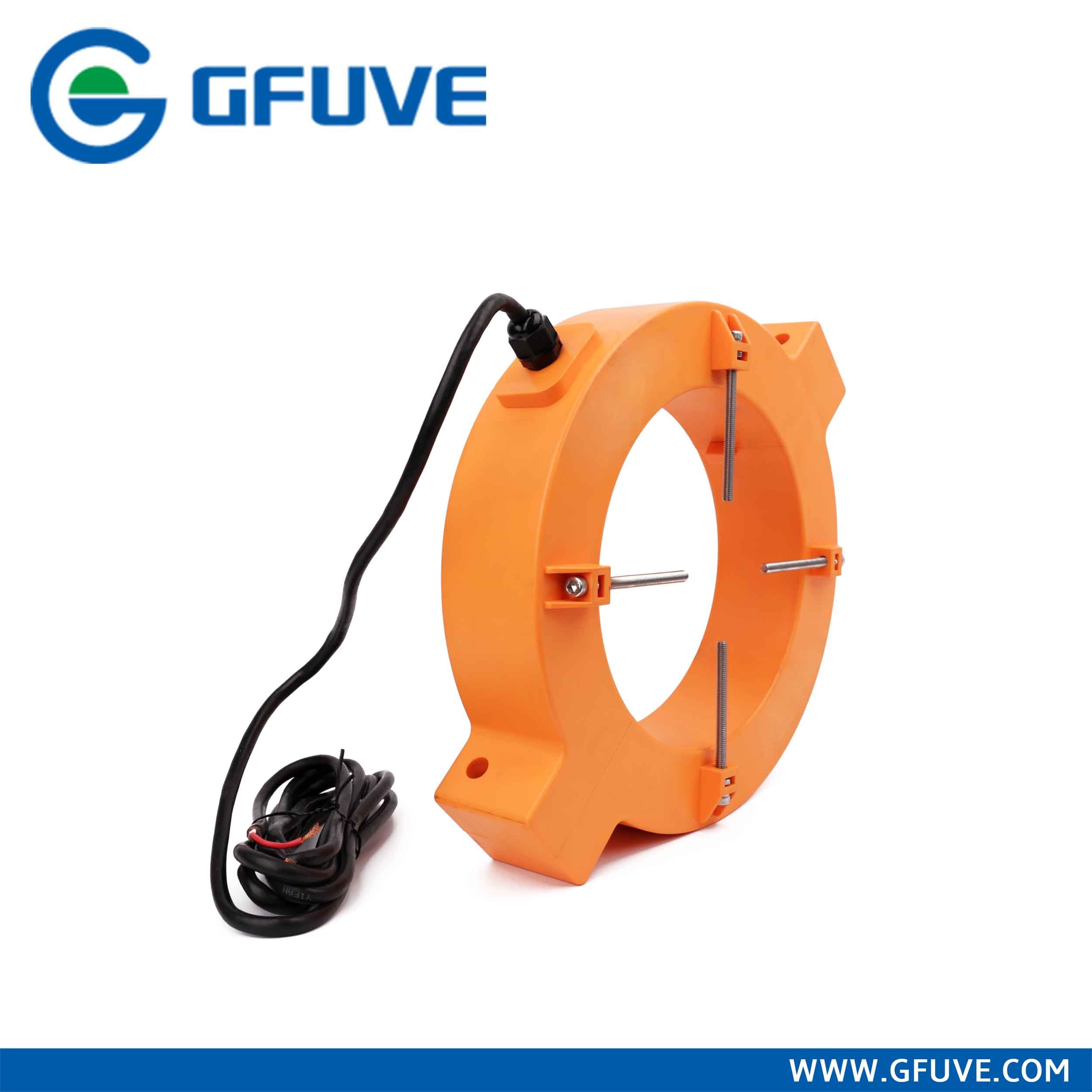

LMCK185-10 low cost true rms ac current transformer split core
LMCK series current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.
Parameters
Rated short-time thermal current | 40kA, 1S |
Rated continuous thermal current | 150%I1n |
Secondary winding power frequency withstand voltage | 3kV, 1min |
Safety Factor Rating | (FS) <5 |
Output signal | 1A, 5A, 333mV, 1V or 5V(customized) |
Cable length | 2.5m, 5m, 10m(customized) |
Dimensions (W×D×H) (mm) | 350×283×55 |
Weight (kg) | 4.5 |
Ingress Protection | IP65 |
Environment | outdoors or indoors |
Selection guide
Model | Primary rated current | Rated load | Aperture (mm) | Description (mm) | Weight (kg) | Material | Water-proof |
LZCK-55 | 100-1500A | ≤10VA | φ55 | 180×138×52 | 2 | PC | IP65 |
LMCK185-10 | 300-3000A | ≤25VA | φ185 | 350×283×55 | 4.5 | PC | IP65 |
LZCK310-10 | 300-600A | ≤10VA | φ50 | φ50 x φ110 x 32 | 1 | Resin | silicon case (option) |
LZCK322-10 | 30-600A | ≤10VA | φ50 | φ50 x φ110 x 52 | 1.6 | Resin | silicon case (option) |
LZCK350-10 | 20-600A | ≤25VA | φ50 | φ50 x φ110 x 105 | 3.1 | Resin | silicon case (option) |
LZCG530-10 | 30-600A | ≤20VA | φ45 | φ45 x φ120 x 65 | 5 | Resin | silicon case (option) |
