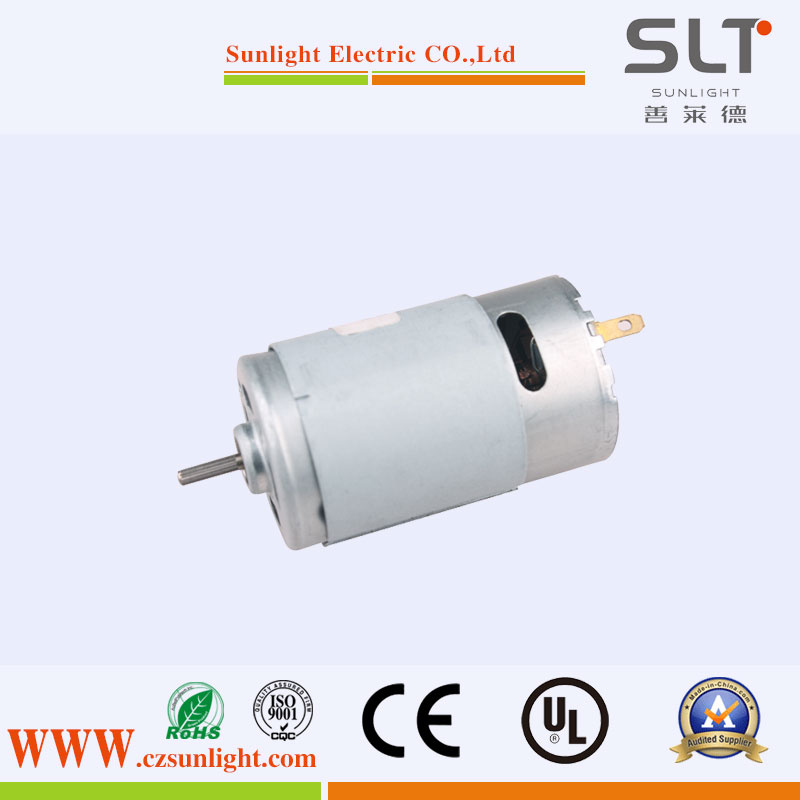

| Prod Model: |
SLT-385PA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
12V |
| No Load Speed: |
8114rpm |
| No Load Current: |
0.103A |
| Load Speed: |
6768rpm |
| Load Current: |
0.5182A |
| Load Torque: |
61.8 G.Cm |
| Output: |
3.99W |
| Stall Torque: |
372.7g.Cm |
| Stall Current: |
2.606A |
| Application: |
Medical Equipments |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brush |
| Certification: |
CE |
| Brand: |
Slt |
Product Description
1,Normal Voltage:6V-36V
2,No load speed:3000-10000 r/min
3,At Max Efficiency speed:3000-1000 r/min
4,At Max Efficiency torque:3-60 mN.m
5,Product range: diameter 13mm-130mm
Advantages of Micro DC Motor
A:Save cost, price is low
B:Better reliability.
C:Low energy consumption.
D:Speed is steady.
E:Easy to run and adjust the speed.
F:Small size, easy to carry.
G:Application range is super wide.
| Model | RS-380PA-20150 | RS-385PA-15120 | RS-385PA-10280 | RS-385PA-13220 |
| Voltage | Operating Range (V) | 9.0-15.0 | 9.0-15.0 | 18.0-30.0 | 18.0-30.0 |
| Nominal (V) | 12.00 | 12.00 | 24.00 | 24.00 |
| NO Load | Speed | r/min | 8114 | 5491 | 5276 | 6750 |
| Current | A | 0.103 | 0.065 | 0.033 | 0.051 |
| At Max Efficiency | Speed | r/min | 6768 | 4445 | 4168 | 5525 |
| Current | A | 0.518 | 0.276 | 0.124 | 0.23 |
Torque | mN.m | 6.06 | 4.54 | 3.95 | 6.3 |
| g.cm | 61.8 | 46.3 | 40.3 | 64.2 |
| Output | W | 3.99 | 1.94 | 1.61 | 3.34 |
| Stall | Torque | mN.m | 36.53 | 23.85 | 18.82 | 34.69 |
| g.cm | 372.7 | 243.4 | 192 | 354 |
| Current | A | 2.606 | 1.175 | 0.467 | 1.038 |
Applications
A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Applicance ( Electric cooker, Electric mop and other products.)
C.Medical equipments and beauty products.
D.Office products (such as printer, scanner......)
E.High efficiency for power saving
