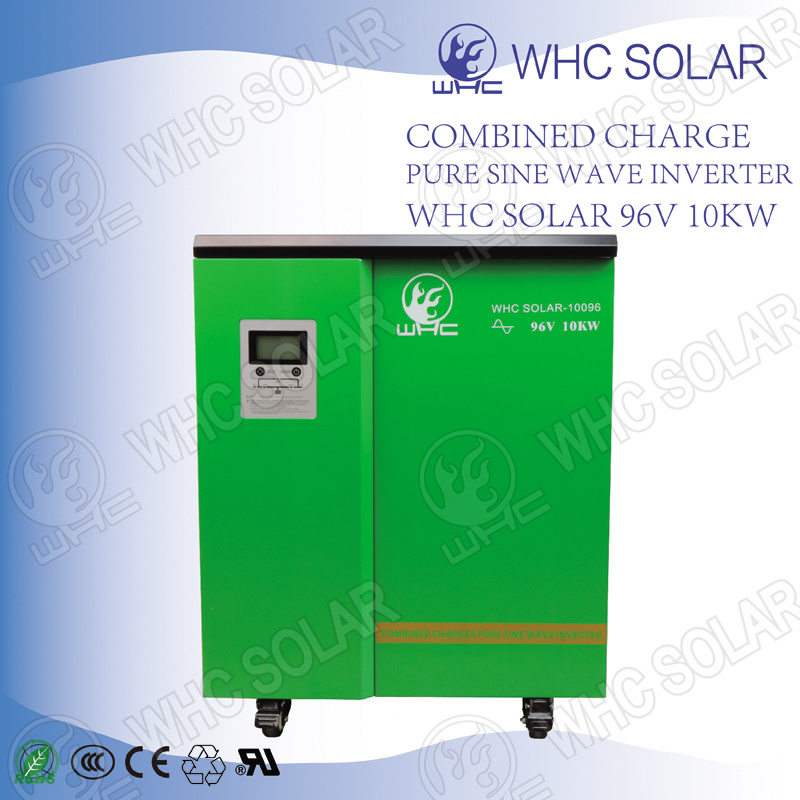

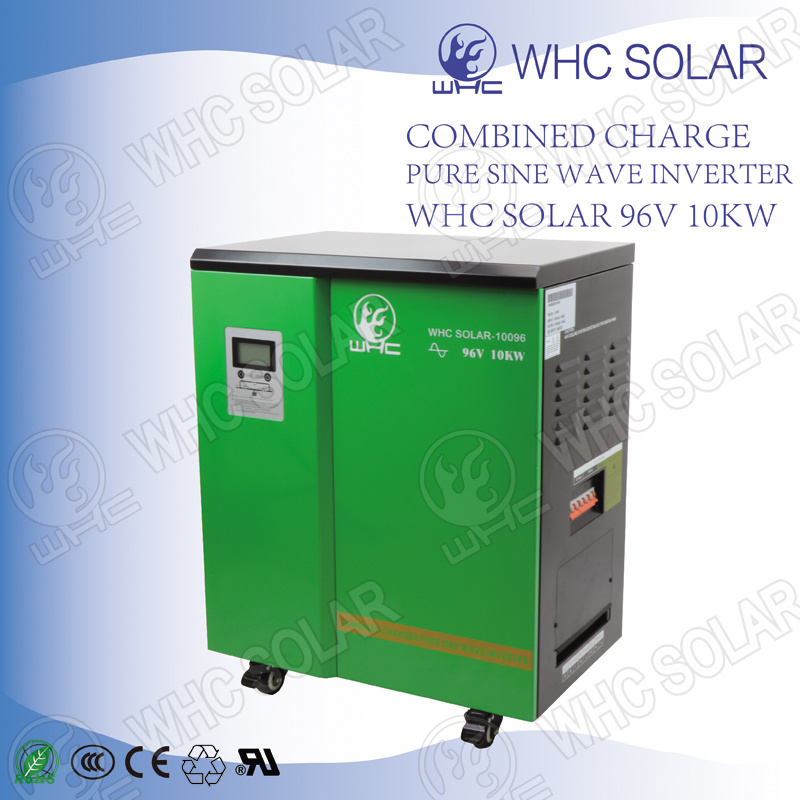

Low Frequency off Grid Solar Power Pure Sine Wave Inverter
Price: |
US $ 1144.9-1347.8/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Money Gram |
Prod Model: |
WHC SOLAR 10096 |
Name: |
off Grid Solar Power Pure Sine Wave Inverter |
Application: |
Commercial Industry |
Cooling: |
Fan |
Main Circuit Type: |
Voltage |
Weight: |
112kg |
Display: |
LCD Digital |
Function: |
Change The Voltage |
Key Words: |
off Grid Solar Power, Pure Sine Wave Inverter |
Product Description
Low frequency off Grid Solar Power Pure Sine Wave Inverter MAIN FEATURES1, Excellent performance because of double CPU intelligent control.2, Settable mains supply preferred mode, energy-saving mode and battery preferred mode.
3, Controlled by smart fan that is safer and more reliable.
4, Pure sine wave AC output, which is able to adapt to various types of load.
5, LCD display device parameters in real time, showing you the running state.
6, All kinds of automatic protection and alarm of output overload and short circuit.
7, Intelligent monitor the device status because of the RS232 communication interface design.Technical indexesModel: | WHC SOLAR-1096 | WHC SOLAR-20192 |
Rated power | 10KW | 20KW |
Battery | Rated voltage | 96VDC | 192VDC |
Charge current | 10A |
Low-voltage protection | 84VDC | 168VDC |
Input | Voltage range | 99-138VAC/189-275VAC |
Frequency | 45-65Hz |
Output | Voltage range | 50/60Hz±1%( Inversion mode) |
Frequency | 110VAC/220VAC;±5%(Inversion mode) |
Output waveform | Pure sine wave |
Switching time | <4ms( Typical load) |
Efficiency | >85%(100% resistive load) | >90%(100% resistive load) |
Overload | 110-120%/30S;>160%/300ms; |
Protection function | Battery overvoltage protection, battery undervoltage protection, overload protection, short circuit protection, overtemperature protection,etc. |
Ambient temperature for operation | 0-40ºC |
Ambient temperature for storage | -15 - +50ºC |
Operation/storage conditions | 0-90% (no condensation) |
External dimensions: D*W*(mm) | 555*368*695 mm | 655*383*795 mm |
G.W.(KG) | 112 | 170 |

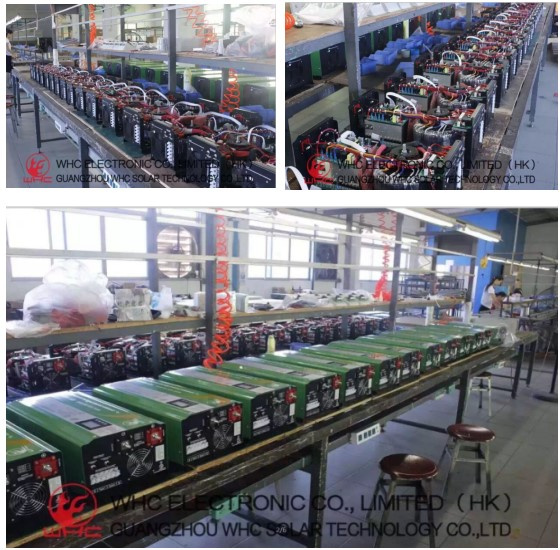

Our teamFactory Show
FAQQ1.Are you a factory or trading company?we are factoryQ2: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case, and you can offer your logo.Q3. What kind of certificate you have ?
which won a number of national patent and passed CE, RoHS, ISO9001: 2008 quality management system certification.
Q4.How long is the Inverter life?
Please charge the product every 4~6 months, if it is not used for a long time. In the normal conditions, the battery can be used for 3~5 years.
Q5.Where is your main market?
Our main market, Africa, South America, Middle East, Occident, etc..
Q6.How to pay for Inverter?
We accecpt Money Gram,western union, T/T,etc.. If you have any good payment, we also can accept.
Q7.What is your company Web Site?WWW.WHCSOLAR.CCWelcome to ask me for price reference on specific models and quantity of Inverter at any time.
We are sure any your question will get our prompt reply.
WHC SOLAR Technology Co., Ltd. is a collection development, production, and sales of photovoltaic tech enterprises, It's the first one in China dedicated solar home systems research and development, production and sales of photovoltaic enterprises, the company since its inception in 2005 established the quality of priority, the concept of brand management, and the use of simple, easy to maintain, reliable quality as a product design, which won a number of national patent and passed CE, RoHS, ISO9001: 2008 quality management system certification. Our main products include: Solar Power Systems, Solar Panels, Solar Controller, Solar Inverter, Solar Battery, Solar Energy kits etc. WHC SOLAR has advanced production testing equipment and strong R & D team, professional QC team and excellent business sales team. The company currently produces the vast majority of products covered by the requirements of customers on the use of solar home systems, and products in the industry with the most comprehensive and professional characteristics. Sold to: Africa, South America, India, Nepal, Cambodia, Bangladesh, Vietnam, the United States, Japan, Korea, and other countries and regions. WHC SOLAR as committed to providing customers: Reliable products, efficient service, as well as more specialized solutions. We can provide OEM & ODM, and product design and packaging services according to customer needs.
