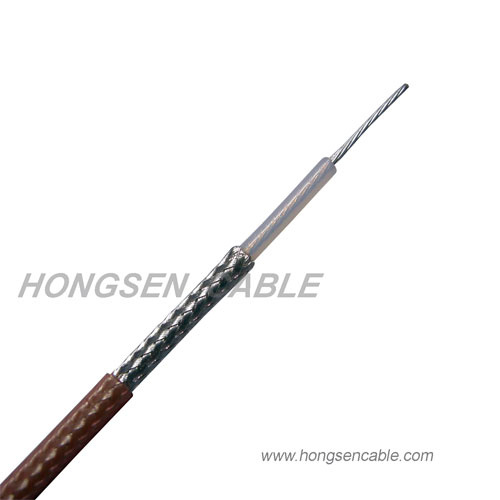

Low Loss RF Coaxial Cable RG142 double shield

Low Loss RF Coaxial Cable RG142 double shield
Price: US $ 1.4-1.6/Meter
Trade Terms: others
Min Order: 3000/Meter
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: RG142
Jacket Material: FEP
Insulation Material: PTFE
Application: RF Cable
Certification: UL
Conductor Material: Silver Plated Copper Clad Steel
Cover Material: FEP
Model: RG

Product Description

RG142 coaxial cable is commonly used for interconnects and jumpers.
Silver Plated Copper covered steel as inner conductor, PTFE as dielectric,Silver Plated copper as braid wire, double shield,and FEP as jacket.

RG142 Coaxial Cable Double shield

Physical properties:

Inner Conductor: 0.94mm Silver Plated Copper Clad Steel
Dielectric: 2.95mm PTFE
First Shield: 95% Silver Plated Copper Braid
Second Shield: 95% Silver Plated Copper Braid
Jacket: 4.95mm Brown FEP

Electrical properties:

Capacitance (pF/m): 96.5
Impedance (Ω ): 50.0
Velocity of Propagation (%): 70.0
Conductor DCR (Ohm/km): 63.3
Outer Shield DCR (Ohm/km): 7.5
Max Operating Frequency (MHz): 8000.0
Max Operating Voltage (RMS): 1900.0
Operating Temp Range (º C): -55 to 200

Attenuation ( @ 20 ºC)
Frequency                                          (MHz)Max

Attenuation                              (dB/100ft) 		Max Attenuation                                 (dB/100m)
50 2.6 8.5
100 3.8 12.5
400 7.9 25.9
900 12.3 40.4
1000 13.1 43.0
3000 24.2 79.4


Appliction:

RG142 CABLE are used in wireless communication, broadcast and military equipments for transmission of radio frequency signals. Silver Plated Copper covered steel as inner conductor,PTFE dielectric,Silver Plated copper as braid wire, and FEP or PTFE as jacket.
Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
