| Prod Model: |
RG6 Standard Shield with Messenger |
| Jacket Color: |
White or Customized |
| Trade Term: |
EXW/Fob/CFR/CIF |
| Length: |
Customized |
| Application: |
Submarine Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ETL, CPR |
| Type: |
RG6 |
| Wire Core Material: |
Customized |
| Model: |
RG6 Standard Shield with Messenger |
| Brand: |
Shengda |
Product Description
-------------------------------------------------------Product-------------------------------------------------------
1. Name: Low Loss RG6 Coaxial Cable for Digital Audio Video
2. Item Code: RG6 Standard Shield with Messenger
3. Characteristics:
1) High velocity of propagation, low attenuation, low return loss;
2) Perfect connecting cable for digital video and audio signals for the highest quality image;
3) Perfect cable for satellite tv & high speed internet;
4) Durable & flexible pvc jacket is ideal for running cable through dry wall and over drop ceilings girders;
5) Allows for bending cable without damaging the quad shielded insulated wiring.
4. Certificate: UL, ETL, CE, RoHS etc
5. Picture:
---------------------------------------------------Specification---------------------------------------------------
| Name | Material | Parameter |
| Inner conductor | Bare copper, tinned copper or copper clad steel | 1.02 mm (diameter) |
| Dielectric | Physical foam PE | 4.57 mm (diameter) |
| 1st shield (Tape) | Bonded aluminum foil | 4.75 mm (diameter) |
| 2nd shield (Braid) | Aluminum braid | 60% coverage |
| 3rd shield (Tape) | N/A | N/A |
| 4th shield (Braid) | N/A | N/A |
| Jacket | PVC, LSOH, LSLH | 6.91 mm (diameter) |
| Messenger | Steel | 1.30 mm (diameter) |
-------------------------------------------Electrical Characteristics-------------------------------------------
Characteristic Impedance | 75 Ohms |
Velocity of Propagation | 82% |
Capacitance | 53 pF/m |
Return Loss | (5-470MHz)≥23dB
(470-1000MHz)≥20dB
(1000-3000MHz)≥20dB |
Operation Temp. | -20~+80ºC |
-----------------------------------------------Attenuation at 20ºC-----------------------------------------------
Frequency (MHz) | 5 | 55 | 300 | 500 | 750 | 1000 |
Maximum(dB/100m) | 1.90 | 5.25 | 11.64 | 15.09 | 18.54 | 21.49 |

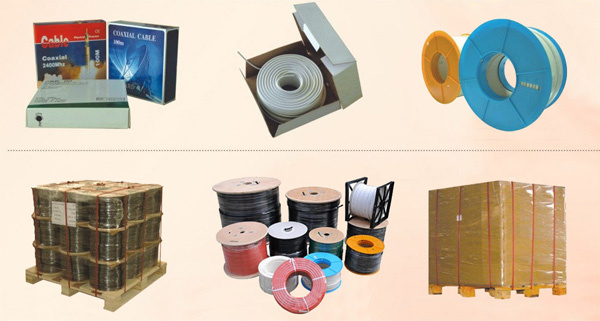

-------------------------------------------------------Packing-------------------------------------------------------
-----------------------------------------------Company Overview-----------------------------------------------
-----------------------------------------------------Workshop-----------------------------------------------------
-----------------------------------------------------Storehouse-----------------------------------------------------
----------------------------------------------------Trade Show----------------------------------------------------
-------------------------------------------------------Contact-------------------------------------------------------
Shengda Cable Co Ltd - Manufacturer
Address: No.100, Changbao West Rd, Ronggui, Shunde, Foshan, Guangdong, China
Website: www.shengda-cable.com
Contact::Derek Li
Tel: 86-757-2638 9090
Fax: 86-757-2662 5464
Cell: 86-139-2487-1973
Shengda Cable Co Ltd, formerly known as Shun Fat Electric Manufactory, is affiliated to Shun Fat Innovations Limited, a company incorporated in Hong Kong. Located in Pearl River Delta, the most dynamic region in China Mainland, Shengda enjoys the benefits of what a center of advanced manufacturing and modern service industries brings.
Established in 1985, Shengda has over 300 skilled workers and a team of marketing and engineer experts. In October 2006, Shengda moved its office and factory into Shunde High Tech. Industrial Park, the most famous high tech. Industrial center in China. Shun Fat has a factory site of over 40, 000 square meters. In its 20, 000- square- meter gardenesque workshop, there are series of integrated production appliances, among which are 4 physical foaming machines, 4 PVC Jacket extrusion machines, 2 machines for production of alarm and security cables. There are also over 400 sets of braiding machines, 100 of them are of high speeding and the remaining are of multi-function. To make sure the quality control mechanism works effectively, Shengda is equipped with various kinds of testing instrument and facilities.
Shengda manufactures wide range of products from coaxial cables to security cables with a capacity of over 250, 000 kilometers and annual turnover of nearly RMB100 million. Its products meet standard globally and have been certified or approved by ISO9001, , CCC for China, UL & ETL for US, CSA for Canada, CE & LVD for Europe.
Shengda takes pride in its human assets, its professional staff with caring minds to serve and to improve. Shengda and its working team are making continuous efforts to pursue perfectionism in providing products and service.
