Low Voltage ABC Aerial Bundled Power Cable

Low Voltage ABC Aerial Bundled Power Cable
Price: US $ 1/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile

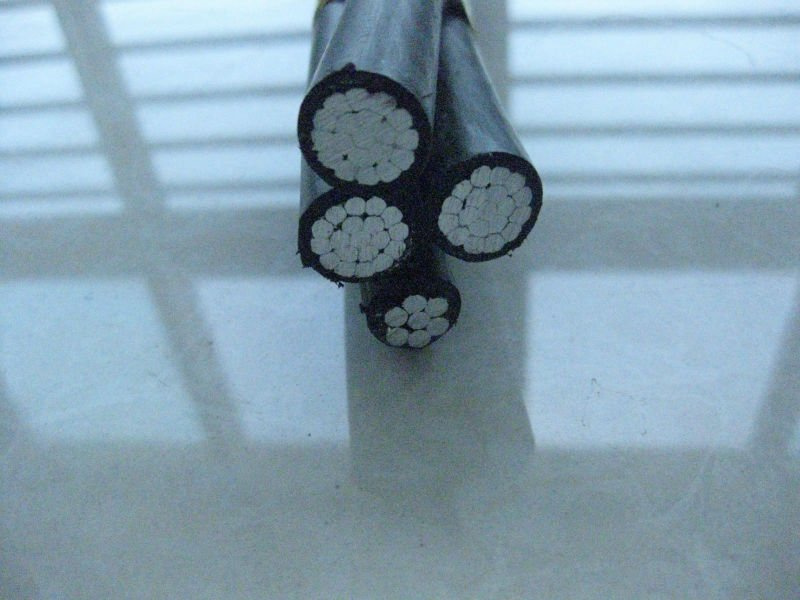

Low Voltage ABC Aerial Bundled Cable (JKLYJ)

1. Features
RUS accepted.
Extruded ridges for easy Phase identification.

2. Standards
ICEA S-76-474
Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulated rated 600V.

3. Application
For overhead distribution of electrical energy, such as a supply power, from pole-mounted transformer to the user's service head where connection to the service entrance cable is made.
Also for temporary services and street light installations.

4. Specification
Maximum operating voltage: 600 volts, Maximum conductor operation temperatures:
Wet and dry locations:
Normal: 90° C
Emergency: 130° C
Short Circuit: 250° C

5. Engineering Information
Conductor: Aluminum alloy 1350-H19, solid conductor per ASTM B230, Compressed Class B stranding, or Class A stranding or unilay-compressed per ASTM B231, or combination unilay (19 wires)Per ASTM B786. Upon Request: Copper Conductors.
Separator: Suitable opaque tape as required.
Insulation: Black thermoset croos-linked polyethylene (XLPE). Upon request: PE insulated.
Neutral: Bare aluminum alloy 1350-H19 classes A stranding per ASTM B231 or ACSR stranding per ASTN B232, or ACSR/AW per ASTM B549. Upon request cover neutral.
Conductor Phase ID: Extruded ridges.
Duplex: Consist of one black phase insulated conductor twisted around a bare neutral conductor

Specification:

(1)Self-supporting

Phase
Phase
Phase
Approx.Overall Diameter
Max. D.C. Resistance of Conductor at 20ºC

AAC+UV-XLPE
Compact Conductor
UV-XLPE Insulation

No.X Normal Cross Section of Cores
No.of Al Wires
Overall Diameter
Normal Thickness
Min.
Diameter

No. X mm2
-
mm
mm
mm
mm
mm
ohm/km

1 X 10
7
4.05
1.0
0.8
6.05
6.05
3.08

1 X 16
7
4.8
1.2
0.98
7.2
7.20
1.91

1 X 25
7
6
1.2
0.98
8.4
8.40
1.20

1 X 35
7
7.0
1.4
1.16
9.8
9.80
0.868

1 X 50
7
8.3
1.4
1.16
11.1
11.10
0.641

1 X 70
19
9.8
1.4
1.16
12.6
12.60
0.443

1 X 95
19
11.6
1.6
1.34
14.8
14.80
0.320

1 X 120
19
13
1.6
1.34
16.2
16.20
0.253

1 X 150
19
14.6
1.8
1.52
18.2
18.20
0.206

1 X 185
36
16.2
2.0
1.70
20.2
20.20
0.164

1 X 240
36
18.4
2.2
1.88
22.8
22.80
0.125

2 X 10
7
4.05
1.0
0.8
6.05
12.10
3.08

2 X 16
7
4.8
1.2
0.98
7.2
14.40
1.91

2 X 25
7
6
1.2
0.98
8.4
16.80
1.20

2 X 35
7
7.0
1.4
1.16
9.8
19.60
0.868

2 X 50
7
8.3
1.4
1.16
11.1
22.20
0.641

2 X 70
19
9.8
1.4
1.16
12.6
25.20
0.443

2 X 95
19
11.6
1.6
1.34
14.8
29.60
0.320

2 X 120
19
13
1.6
1.34
16.2
32.40
0.253

2 X 150
19
14.6
1.8
1.52
18.2
36.40
0.206

2 X 185
36
16.2
2.0
1.70
20.2
40.40
0.164

2 X 240
36
18.4
2.2
1.88
22.8
45.60
0.125

3 X 10
7
4.05
1.0
0.8
6.05
13.07
3.08

3 X 16
7
4.8
1.2
0.98
7.2
15.55
1.91

3 X 25
7
6
1.2
0.98
8.4
18.14
1.20

3 X 35
7
7.0
1.4
1.16
9.8
21.17
0.868

3 X 50
7
8.3
1.4
1.16
11.1
23.98
0.641

3 X 70
19
9.8
1.4
1.16
12.6
27.22
0.443

3 X 95
19
11.6
1.6
1.34
14.8
31.97
0.320

3 X 120
19
13
1.6
1.34
16.2
34.99
0.253

3 X 150
19
14.6
1.8
1.52
18.2
39.31
0.206

3 X 185
36
16.2
2.0
1.70
20.2
43.63
0.164

3 X 240
36
18.4
2.2
1.88
22.8
49.25
0.125

4 X 10
7
4.05
1.0
0.8
6.05
14.64
3.08

4 X 16
7
4.8
1.2
0.98
7.2
17.42
1.91

4 X 25
7
6
1.2
0.98
8.4
20.33
1.20

4 X 35
7
7.0
1.4
1.16
9.8
23.72
0.868

4 X 50
7
8.3
1.4
1.16
11.1
26.86
0.641

4 X 70
19
9.8
1.4
1.16
12.6
30.49
0.443

4 X 95
19
11.6
1.6
1.34
14.8
35.82
0.320

4 X 120
19
13
1.6
1.34
16.2
39.20
0.253

4 X 150
19
14.6
1.8
1.52
18.2
44.04
0.206

4 X 185
36
16.2
2.0
1.70
20.2
48.88
0.164

4 X 240
36
18.4
2.2
1.88
22.8
55.18
0.125

(2) Phase + Neutral

Phase
Neutral
Phase
Neutral
Approx.Overall Diameter
Max. D.C. Resistance of Conductor at 20ºC

AAC+UV-XLPE
AAAC
Compact Conductor
UV-XLPE Insulation
Conductor

Phase
Neutral

No.X Normal Cross Section of Cores
No.X Normal Cross Section of Cores
No.of Al.Wire
Overall Dia.
Normal Thickness
Min.
No./Dia. of Al Alloy Wire

No. X mm2
No. X mm2
-
mm
   mm
Min.
No./mm
     mm
ohm/km
ohm/km

1 X 16
1 X 16
7
4.8
1.2
0.98
7/1.70
12.30
1.91
2.217

1 X 25
1 X 25
7
6
1.2
0.98
7/2.10
14.70
1.20
1.393

1 X 35
1 X 35
7
7.0
1.4
1.16
7/2.50
17.30
0.868
1.007

1 X 50
1 X 50
7
8.3
1.4
1.16
7/3.00
20.10
0.641
0.744

1 X 70
1 X 70
19
9.8
1.4
1.16
7/3.50
23.10
0.443
0.514

1 X 95
1 X 95
19
11.6
1.6
1.34
19/2.50
27.30
0.320
0.371

1 X 120
1 X 120
19
13
1.6
1.34
19/2.80
30.20
0.253
0.294

1 X 150
1 X 150
19
14.6
1.8
1.52
37/2.25
33.95
0.206
0.239

1 X 185
1 X 185
36
16.2
2.0
1.70
37/2.50
37.70
0.164
0.190

1 X 240
1 X 240
36
18.4
2.2
1.88
61/2.25
43.05
0.125
0.145

2 X 16
1 X 16
7
4.8
1.2
0.98
7/1.70
14.04
1.91
2.217

2 X 25
1 X 25
7
6
1.2
0.98
7/2.10
16.63
1.20
1.393

2 X 35
1 X 35
7
7.0
1.4
1.16
7/2.50
19.51
0.868
1.007

2 X 50
1 X 50
7
8.3
1.4
1.16
7/3.00
22.46
0.641
0.744

2 X 70
1 X 70
19
9.8
1.4
1.16
7/3.50
25.70
0.443
0.514

2 X 95
1 X 95
19
11.6
1.6
1.34
19/2.50
30.31
0.320
0.371

2 X 120
1 X 120
19
13
1.6
1.34
19/2.80
33.41
0.253
0.294

2 X 150
1 X 150
19
14.6
1.8
1.52
37/2.25
37.55
0.206
0.239

2 X 185
1 X 185
36
16.2
2.0
1.70
37/2.50
41.69
0.164
0.190

2 X 240
1 X 240
36
18.4
2.2
1.88
61/2.25
47.41
0.125
0.145

3 X 16
1 X 16
7
4.8
1.2
0.98
7/1.70
16.15
1.91
2.217

3 X 25
1 X 25
7
6
1.2
0.98
7/2.10
19.06
1.20
1.393

3 X 35
1 X 35
7
7.0
1.4
1.16
7/2.50
22.32
0.868
1.007

3 X 50
1 X 50
7
8.3
1.4
1.16
7/3.00
25.59
0.641
0.744

3 X 70
1 X 70
19
9.8
1.4
1.16
7/3.50
29.22
0.443
0.514

3 X 95
1 X 95
19
11.6
1.6
1.34
19/2.50
34.42
0.320
0.371

3 X 120
1 X 120
19
13
1.6
1.34
19/2.80
37.87
0.253
0.294

3 X 150
1 X 150
19
14.6
1.8
1.52
37/2.25
42.56
0.206
0.239

3 X 185
1 X 185
36
16.2
2.0
1.70
37/2.50
47.25
0.164
0.190

3 X 240
1 X 240
36
18.4
2.2
1.88
61/2.25
53.63
0.125
0.145

(3) Phase + Neutral + Service Connection

Phase
Neutral
Service Connection
Phase
Neutral
    Service Connection
Approx.Overall Diameter of Bundled Cable

AAC+UV-XLPE
AAAC+UV-XLPE
AAC+UV-XLPE
Conductor
UV-XLPE
Conductor
UV-XLPE
Compact Conductor
UV-XLPE

No.X Normal Cross Section of Cores
No.X Normal Cross Section of Cores
No.X Normal Cross Section of Cores
No. of Al. Wire
Overall Dia.
Normal
Thickness
No./Dia. of Al. Wire
Normal
Thickness
No. of Al. Wire
Overall Dia.
Normal
Thickness

No. X mm2
No. X mm2
No. X mm2
-
mm
mm
mm
mm
No./mm
mm
mm
mm

3 X 16
1 X 50
1 X 16
7
4.8
1.2
7/3.0
1.4
7
4.8
1.2
26.2

3 X 25
1 X 50
1 X 16
7
6
1.2
7/3.0
1.4
7
4.8
1.2
28.6

3 X 35
1 X 50
1 X 16
7
7.0
1.4
7/3.0
1.4
7
4.8
1.2
31.4

3 X 50
1 X 50
1 X 16
7
8.3
1.4
7/3.0
1.4
7
4.8
1.2
34

3 X 70
1 X 50
1 X 16
19
9.8
1.4
7/3.0
1.4
7
4.8
1.2
37

3 X 95
1 X 50
1 X 16
19
11.6
1.6
7/3.0
1.4
7
4.8
1.2
41.4

3 X 120
1 X 50
1 X 16
19
13
1.6
7/3.0
1.4
7
4.8
1.2
44.2

3 X 16
1 X 50
2 X 16
7
4.8
1.2
7/3.0
1.4
7
4.8
1.2
26.2

3 X 25
1 X 50
2 X 16
7
6
1.2
7/3.0
1.4
7
4.8
1.2
28.6

3 X 35
1 X 50
2 X 16
7
7.0
1.4
7/3.0
1.4
7
4.8
1.2
31.4

3 X 50
1 X 50
2 X 16
7
8.3
1.4
7/3.0
1.4
7
4.8
1.2
34

3 X 70
1 X 50
2 X 16
19
9.8
1.4
7/3.0
1.4
7
4.8
1.2
37

3 X 95
1 X 50
2 X 16
19
11.6
1.6
7/3.0
1.4
7
4.8
1.2
41.4

3 X 120
1 X 50
2 X 16
19
13
1.6
7/3.0
1.
Prod Model: JKLYJ
Standard: ASTM, IEC, DIN, CSA, BS...
Delivery Distance: Accord with Your Request
Application: Power Station
Voltage: Low and Medium Voltage Cable
Current: AC Cable
Insulation Material: PVC
Certification: SABS
Brand: Jiapu
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.

The main products are as follows:

Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)

Aerial Bundled Cable 1kV-35kV (ABC Cable)

PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable

Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable

Welding Cable, Control Cable, Rubber Sheathed Cable

Fiber Optic Cable (OPGW, ADSS, etc. )

Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.

We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.

Send your message to this manufacturer

  • Henan Jiapu Cable Co., Ltd.

More >

Other Products with This Manufacturers

High Performance Good Price Low Voltage PVC Insulated Power Cable
High Performance Good Price Low Voltage PVC Insulated Power Cable
4 Core Aluminium or Copper Low Voltage PVC Insulated and Sheathed Power Cable
4 Core Aluminium or Copper Low Voltage PVC Insulated and Sheathed Power Cable
High Quality Good Price 3 Core XLPE Insulated Armoured Power Cable
High Quality Good Price 3 Core XLPE Insulated Armoured Power Cable
Al/Cu Core Conductor Armored Power Cable
Al/Cu Core Conductor Armored Power Cable
Low Voltage Aluminum Conductor PVC Insulated Overhead ABC Power Cable
Low Voltage Aluminum Conductor PVC Insulated Overhead ABC Power Cable

Home | Eectrical & Electronics Manufacturers | Hot Products | Products Index | Companies List| News | Sitemap | Disclaimer | Contact Us | Site Partners
