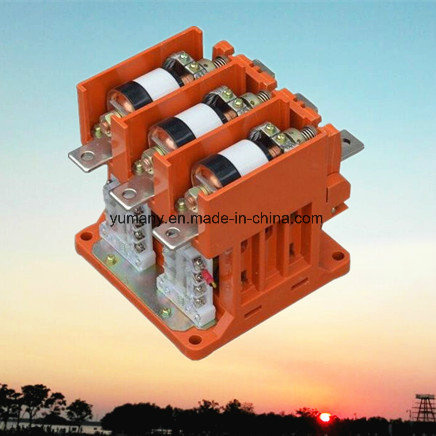

Low Voltage Electrical Vacuum Contactor (CKJ5)

Name: Low Voltage Electrical Vacuum Contactor (CKJ5)
Brand: all-electronics-online.com
SKU: 720363302
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	US $ 89-418/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Main Technical Parameters

Model	CKJ5-800	CKJ5-1000	CKJ5-1250	CKJ5-1600
main circuit rated voltage (V)	1140	1140	1140	1140
main circuit rated current (A)	800	1000	1250	1600
main circuit making ability (A/100times)	5000	5000	5000	5000
main circuit break-make ability (A/10times)	4000	4000	4500	4500
max. break ability (A/3times)	5000	5000	5000	5000
electricity life AC3 (times)	600,000
electricity life AC4 (times)	60,000
mechanical life (times)	3,000,000
rated operating frequency AC3 (times/h)	600
rated operating frequency AC4 (times/h)	120
short time operating frequency 20s (times/h)	2,000
terminal pressure (N)	350 25N
clearance between open contacts (mm)	≥2.8
over travel (mm)	≥1

Prod Model:	CKJ5
Control Voltage (Coil Voltage):	110V, 220V, 380V
OEM Or ODM:	Accepted

NANJING YUMANY IMP & EXP Co., Ltd located in Nanjing the ancient capital of the six Dynasties of China with transport facilities. We are closed to Nanjing port, Shanghai port and Ningbo port.

We have been engaged in the import and export of kinds of goods and technology for 12 years. Inparticular we have rich experience in electrical products, electronic products, arts and crafts. Such as dual power automatic transfer switch, LED auto lights, HV disconnect switch, PAR light, time switch, relay, auto parts, contactor, valves, micro and limit switch, embroidery etc.

We have a professional service team with 16 professional employee, we could answer your any question for 24 hours*7 days.

In past 8 years credible sales network has been set up and we have our regular clients from over 100 countries and regions worldwide.

Our principle as "clients' needs come first. " Let's advance hand in hand to create beautiful futures together. Our aim is to be your most trusted partner.
