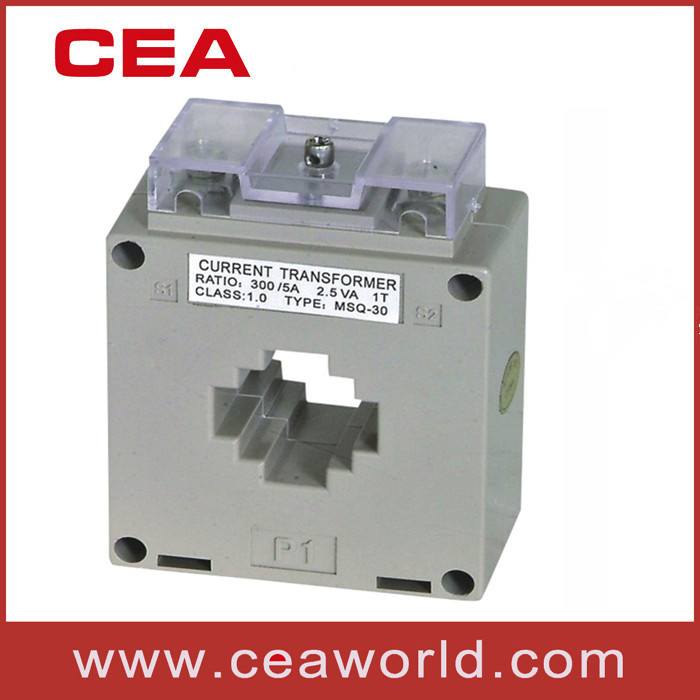

Low Voltage Msq Current Transformer for Switch Gear

Name: Low Voltage Msq Current Transformer for Switch Gear
Brand: all-electronics-online.com
SKU: 690223965
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Applicaton:
The MSQ series current transformers can be sued to test control, display and record the running of the electrical equipment and to protect the equipment against the damage, in the AC circuit with rated voltage value below 660V and the frequency of 50-60Hz,
The product can also be used to form a complete set of mine transformer.

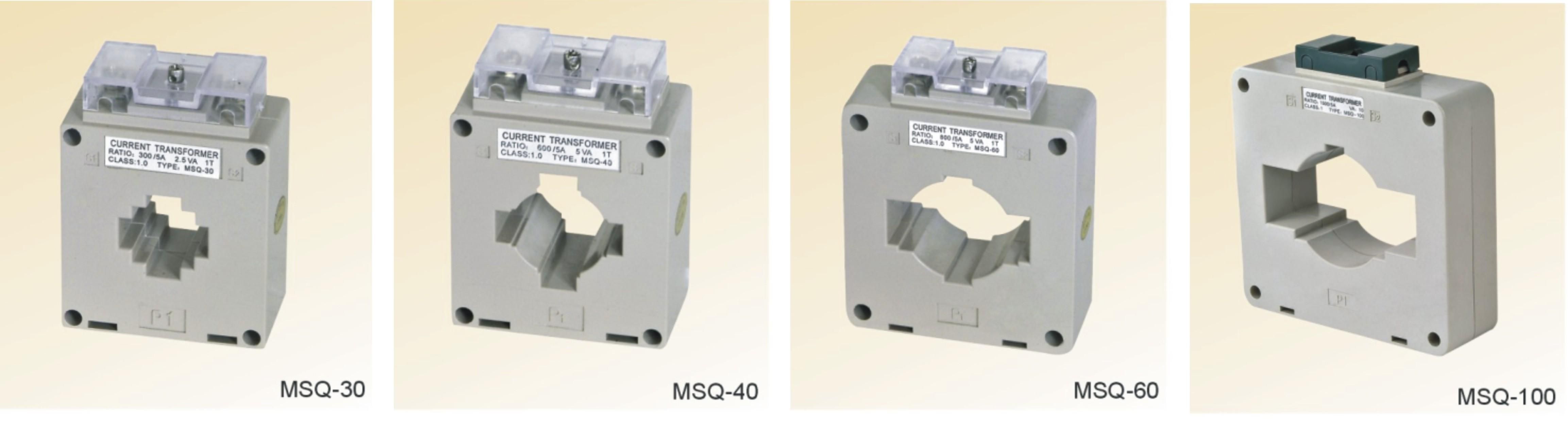

type	rated current(A) Primary secondary	rated load(VA)	class	max. working voltage(V)
MSQ-30	15/5	2.5	0.5	660
MSQ-30	200/5	5	0.5	660
MSQ-40	20/5	2.5	0.5	660
MSQ-40	250/5	5	0.5	660
MSQ-40	600/5	10	0.5	660
MSQ-60	300/5	5	0.5	660
MSQ-60	750/5	10	0.5	660
MSQ-60	2000/5	40	0.5	660
MSQ-80	400/5	5	0.5	660
MSQ-80	800/5	10	0.5	660
MSQ-80	2000/5	40	0.5	660
MSQ-100	1500/5	20	0.5	660

Prod Model:	MSQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	15/5-3000/5A
Maximum Voltage:	660V
Frequency:	50-60Hz
Class:	0.5, 1.0
Short-Time Thermal Current:	1th=60ih
Rated Security Coefficient:	Fs5
Mounting Methods:	by Once-Lead or by Copper Bar
Working Temp:	-20~45
Type:	Current Transformer
Phase:	Single

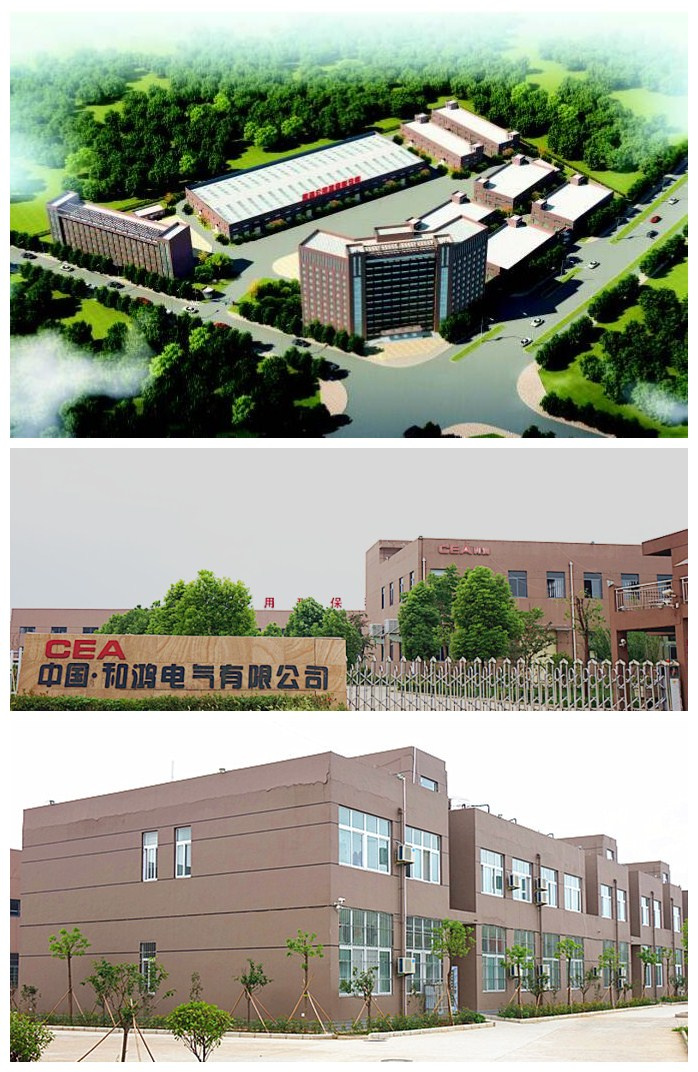

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
