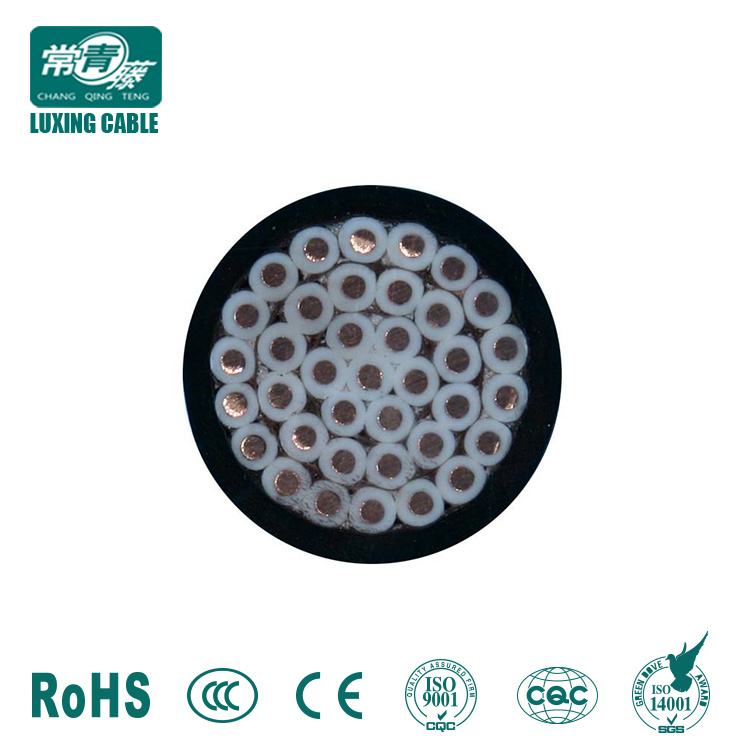

ITEM NAME : Multi - core Flexible Control Cable
1.Characteristics and Applications of the Products:
Plastic insulated control cable is used to connect electrical equipments. It applies to controlling, monitoring and protective system with A.C. rated voltage U0 /U up to and including 450/750v.
The main features of the flame retardant PVCcontrol cable is hard to get fire or that the continuous buring of cables is very limited when it is on fire .It applies to the places with special demands of flame retardant property.
Fire resistant cable can operate normally for some time when it is burning except that is transmit electrical power under normal condition.It is used in the places necessary to resist fire.
2.Operating characteristics:
The long-time permissible operating temperature is 70oC;
The ambient temperature under installation should not go below 0oC.
a. for non-armoured cable and flexible shielded cable, the bending radius should not be less than 6 times the outer diameter;
b. for armoured or copper-tape shielded cable, the bending radius should not be less than 12 times the outer diameter;
3.Detailed Models :
Model | Description | Application |
KVV | copper conductor, PVC insulated, PVC sheathed, control cable | Suitable for being laid indoors, in cable trench, pipelines or other specific occasions. |
KVVP | copper conductor, PVC insulated, PVC sheathed, braided, shielded, control cable | Suitable for being laid indoors, in cable trench, pipelines or other specific occasions that demands shielding. |
KVVP2 | copper conductor, PVC insulated, PVC sheathed, copper-tape shielded, control cable |
KVV22 | copper conductor, PVC insulated, PVC sheathed, steel-tape armored, control cable | Suitable for being laid indoors, in cable trench and pipelines, directly burial or other specific occasions with a relatively large capacity for mechanical stretching force. |
KVV32 | copper conductor, PVC insulated, PVC sheathed, thin steel wire-armored, control cable | Suitable for being laid indoors, in cable trench, pipelines, silo or other specific occasions that demands shielding. |
KVVR | copper conductor, PVC insulated, PVC sheathed, flexible, control cable | Suitable for being laid indoors and places that demands moving cables with flexibility. |
KVVRP | copper conductor, PVC insulated, PVC sheathed, braided shielded, flexible, control cable | Suitable for being laid indoors and shielded places that demands moving cables with flexibility. |
4.Techinical Parameter
Nom.
Cross section
(mm) | Conductor construction | DCresistance of conductor at 20oC(min.) Ω/km | Nom.wall thickness
of insulaion mm |
Insulation resistance
of 70oC
(MΩ/km)
|
Type |
No./Nom. Dia of conductor mm
| PVC | PE | XLPE |
1.0 | 1 | 1/1.13 | 18.1 | 0.6 | 0.7 | 0.7 | 0.011 |
1.0 | 2 | 7/0.43 | 18.1 | 0.6 | 0.7 | 0.7 | 0.013 |
1.5 | 1 | 1/1.38 | 12.1 | 0.7 | 0.7 | 0.7 | 0.011 |
1.5 | 5 | 30/0.25 | 13.3 | 0.7 | 0.7 | 0.7 | 0.010 |
2.5 | 1 | 1/1.78 | 7.41 | 0.8 | 0.7 | 0.7 | 0.010 |
2.5 | 2 | 7/0.68 | 7.41 | 0.8 | 0.7 | 0.7 | 0.009 |
4 | 1 | 1/2.25 | 4.61 | 0.8 | 0.7 | 0.7 | 0.0085 |
4 | 2 | 7/0.85 | 4.61 | 0.8 | 0.7 | 0.7 | 0.0077 |
6 | 1 | 1/2.76 | 3.08 | 0.8 | 0.7 | 0.7 | 0.0070 |
6 | 2 | 7/1.04 | 3.08 | 0.8 | 0.7 | 0.7 | 0.0065 |
10 | 2 | 7/1.35 | 1.83 | 1.0 | 0.7 | 0.7 | 0.0065 |

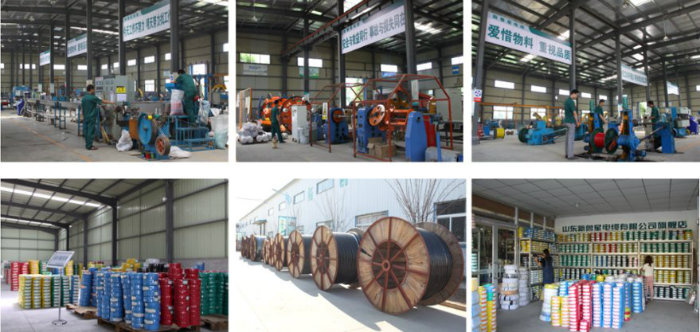

Company Information Our company-Shandong New Luxing Cable Co.,Ltd establish in the year of 1999 , so until now we have been in this line for more than 18 years .at present ,we have 150 empoyees in total , and annual sales volume is about 8 billion .our headquarter in Jinan City , the capital in shandong province . and our factory located in Dezhou City , Covering an area of more than 60 acres .

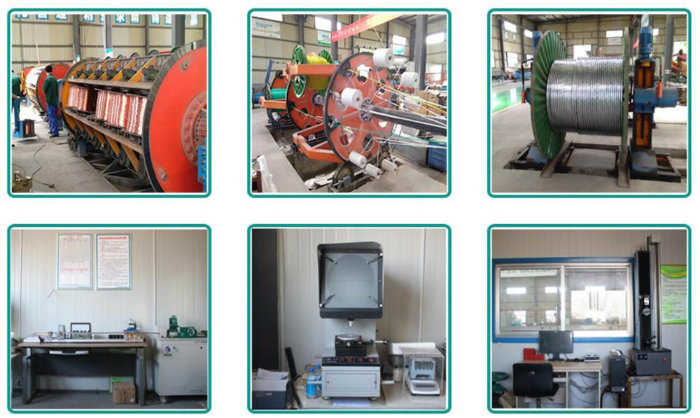

Strict Quality Test ( Raw Material & Finished Cable )

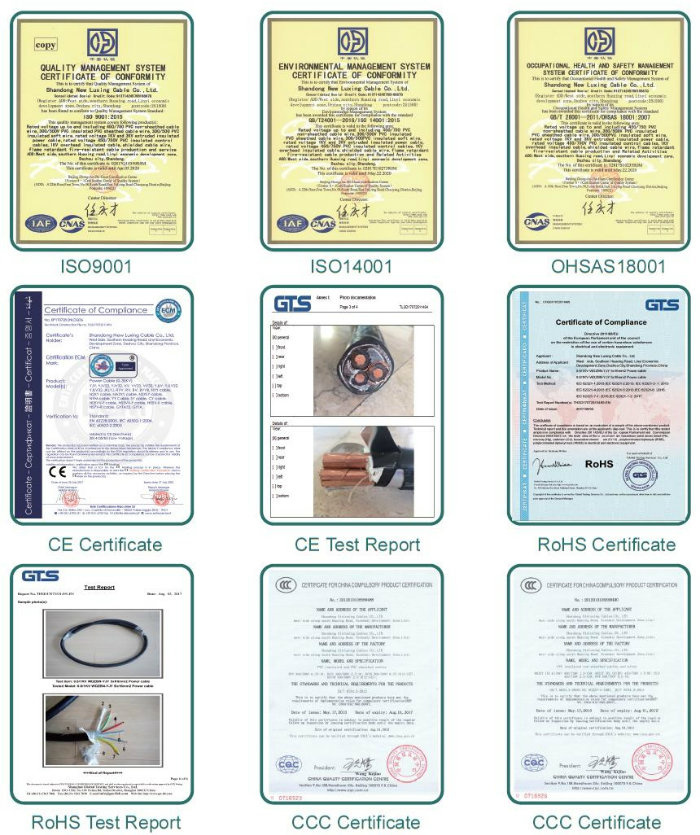

Certificates ( ISO CE CCC ROHS GB/T )

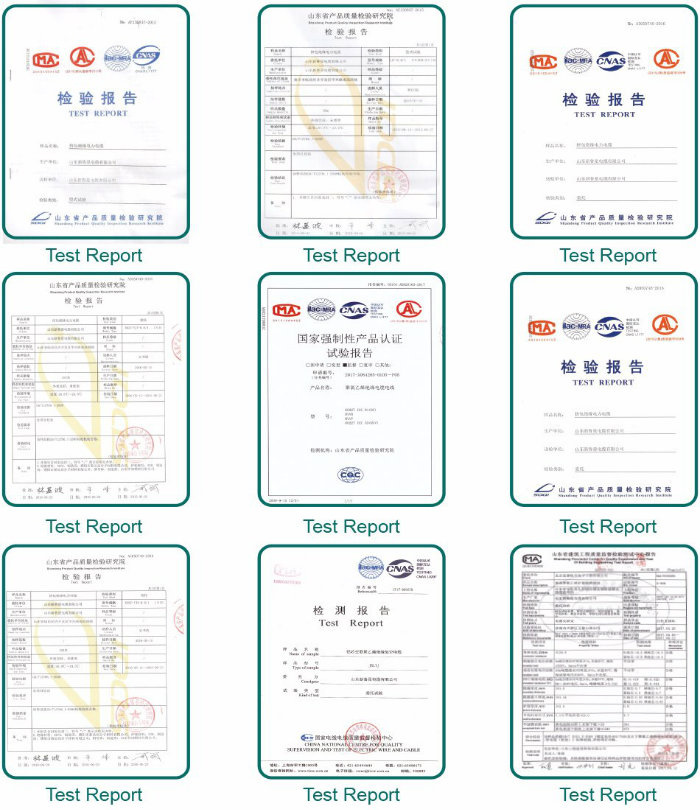

Type Test Report
