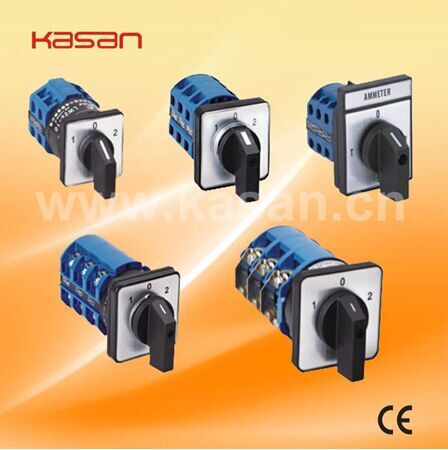

LW28 series of universal changeover rotary switch

Product Description:

LW28 series is mainly used for communication's switch 50Hz, rated voltage 380V and below, dc voltage 220V below and rated current to the electrical wiring 63A for manual less frequent switching circuit breaker or controlling and conversion, may also directly control three-phase induction motor and made to measure and control circuit. Product versatility, instead of transition state officially switch, can be used as the circuit control switch, the formal test equipment, motor control switch, switch to control switch and electric switch, and etc.

Normal working condition

1.Around air temperature no more than +40ºC,within 24h, and no more than the average temperature+35ºC;
2.the upper air temperature around. No more than -5ºC;
3.Installing place shall not exceed altitude 2000m;
4.The highest temperature for+40ºC,the air temperature is not more than 50% of the relative low, at the temperature can allow higher relative humidity, such as 20ºC.to 90%. Due to temperature change of any specific measures occasionally.

Technic data:

Model	lth A	Ui V	Ue V	AC-21A	AC-22A	AC-23A		AC-2		AC-3		AC-4		AC-15	DC-13
Model	lth A	Ui V	Ue V	Le A	Le A	Le A	p kw	Le A	p kw	Le A	p kw	Le A	p kw	Le A	Le A
LW28-20	20	660	440	20	20	15	7.5	15	7.5	11	5.5	3.5	1.5	4
			240											5	1
			120												5
LW28-25	25		440	25	25	22	11	22	11	15	7.5	6.5	3	5
			240											8	1.5
			120												9
LW28-32	32		440	32	32	30	15	30	15	22	11	11	5.5	6
			240											14	11
			120												25
LW28-63	63		440	63	63	57	30	57	30	36	18.5	15	7.5
LW28-63	63		120												55
LW28-125	125		125	125	125	100	45	100	45	50	22	18	12		90
LW28-160	160		160	160	160	115	57	115	57	65	33	25	15		110
Operating cycle		Racing		8500										Long-life electrical (time)
		A		1500										20*104	6*104
		A		1500										Mechanical life (times)
		The total		1000										60*104

Prod Model:	LW28
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Voltage:	380V
Mechanical Life:	2 Years
Rotary Number:	Single Button
Usage:	Digital Products
Standard:	Standard
Certification:	RoHS
