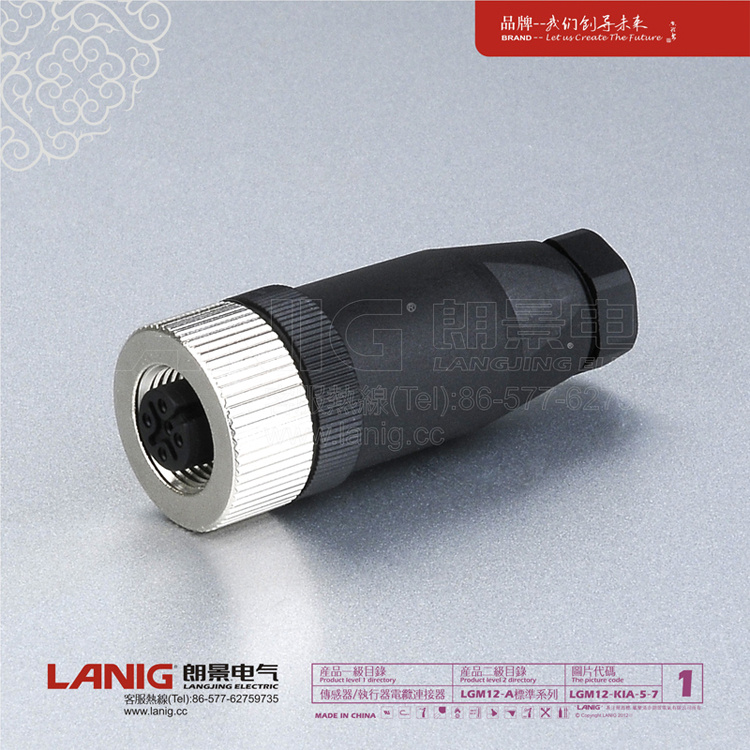

M12 Connector a Coded 5p Female with Cable Plug

Name: M12 Connector a Coded 5p Female with Cable Plug
Brand: all-electronics-online.com
SKU: 829228265
Availability: InStock
Rating: 4.7 (141 reviews)

Price:	US $ 1.69-3.08/Piece
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

General
LGM12 series sensor/actuator cable connector (hereinafter referred to as the "connector") is widely applied in all kinds of sensor signals connected, as precision equipment action signal and information transmission.
LGM12 series sensor/actuator USES threaded connection, cable connector thread specifications for the M12 x 1, IP67, protection grade cable free assembly.

Technical parameter

NO.	Project name	Technical parameter
1	Number of contacts	3	4		5		8
2	Connector locking system	screw M12*1
3	Connector type	Bending L/straight I
4	Termination	screw
		female;male
5	Wire gauge	0.75mm²(AWG18)						0.50 mm²(AWG20)
6	Cable outlet	4-6mm,6-8mm
7	Cable length	--
8	Cable material	--
9	Degree of protection	IP 67
10	Mechanical operation	>500mating cycles
11	Upper temperature	+85ºC
12	Lower temperature	-25ºC
13	Rated voltage	250V		250V		60V			30 V
14	Rated impulse voltage	2500V		2500V		1500V			800V
15	Rated insulation voltage	32V
16	Pollution degree	3
17	Overvoltage categorie	‖
18	Material group	‖
19	Insulation resistance	--
20	Rated current (40ºC)	4A							2A
21	Contact resistance	≤3mΩ
22	Class of fLammability according to UL94	V0
23	Material ot contact	CuZn(brass)
24	Contact plating	Au(gold)
25	Material of housing	PA
26	Color in plastic	Black

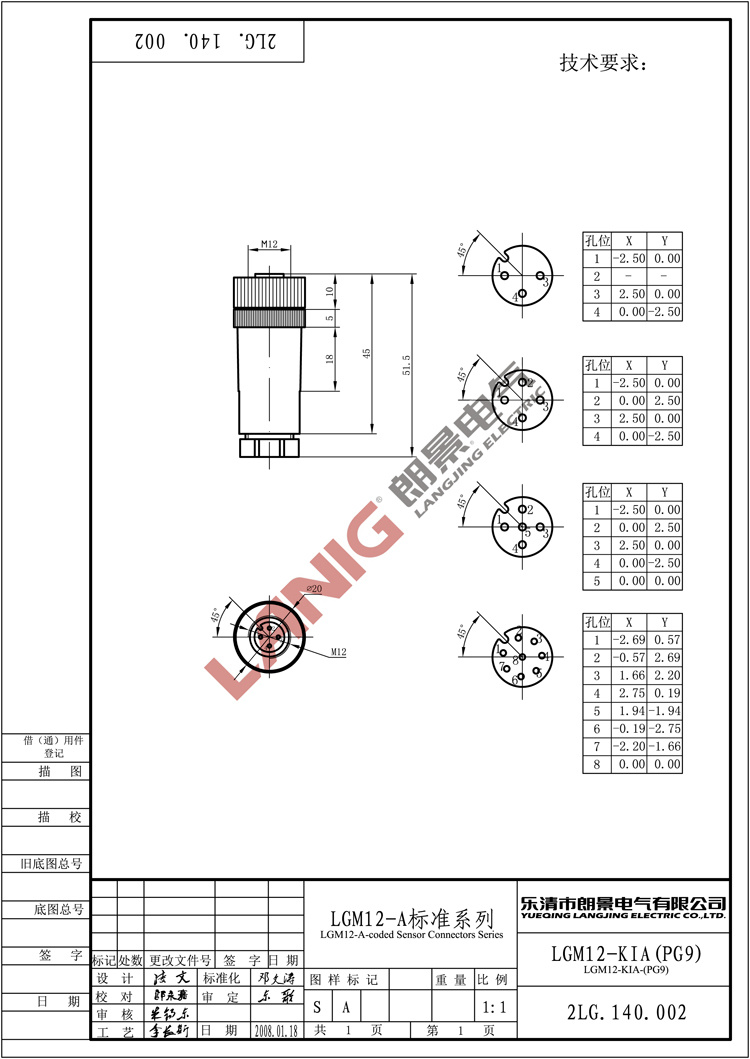

Shape dimension figure

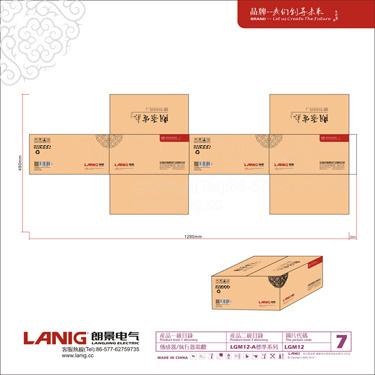

Product Packing

Prod Model:	LGM12-KIA-5
