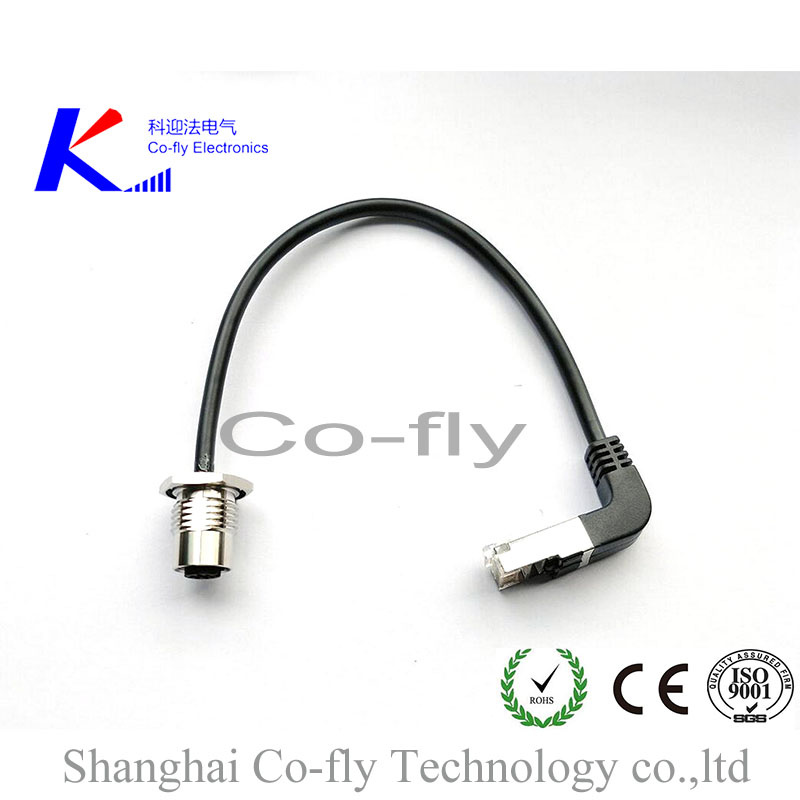

M12 Flange, Angle RJ45 Crystal, 4 Pin, Shielded Circular Cable Adapter Connector
| Price: |
Negotiable/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Money Gram |
M12 flange, Angle RJ45 crystal ,4 pin, shielded circular cable adapter connector
| Description of M12 panel connector,IP67 M12 cable connector ,fix thread M12x2.0 |
| Φ Panel field M12 connector,fix screw with self-locking threaded joint,waterproof IP67 M12 cable connector. |
| Φ Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices. |
| Φ Satisfy all the requirements of sensor devices and actuator devices in automation technology. |
| Technical data of cable waterproof connector |
| Φ Standard :IEC 61076-2-101 |
| Φ Coding : A,B,D |
| Φ Pins: 2~17 pin |
| Φ Ambient temperature:-20°C~+85°C |
| Φ Insulation resistance ≥ 100M Ω |
| Φ Degree of peotection : IP67 in locked condition |
| Cable/Connector specification |
| Φ Insert : PA+GF |
| Φ Contact:Copper Alloy with gold plating |
| Φ Overmold:TPU |
| Φ Cable Jacket:PVC or PUR |
| Φ Wire insulation:PVC |
| Φ Cable length:Option |
Co-fly welcome all inquiries / requirements, offer Custom service and Total-solution

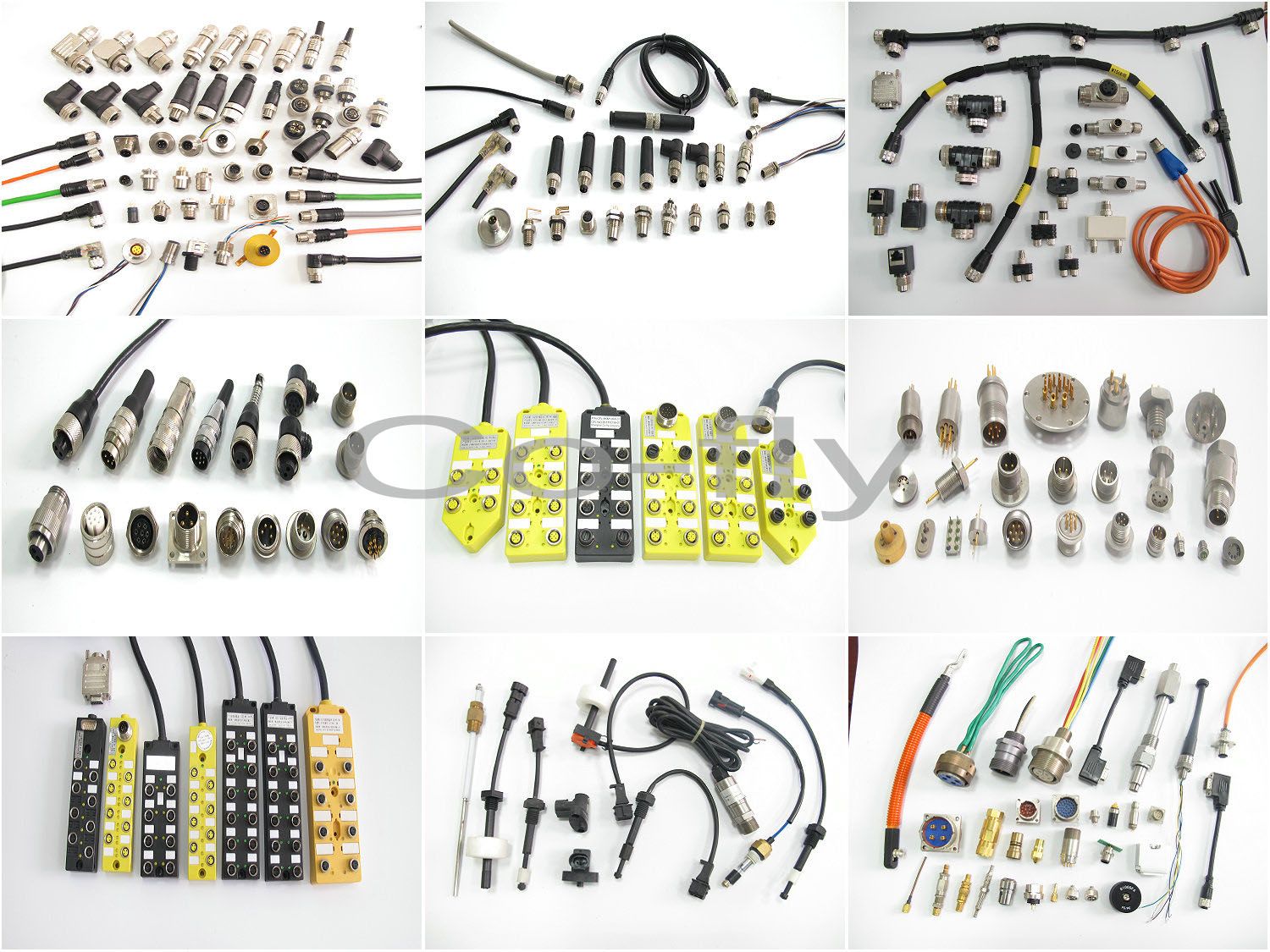

Since 2004, Co-fly has been specialized in and focused on R&D, production, marketing and service of waterproof connectors, sensors (M12 connector, M8 connector, M16 connector, M23 connector, M5, etc.), special custom type connector, I/O bus module (M12 hub, M8), one-to-two T-shape and Y-shape splitter, sensor of car tank, wiring harness of new energy automobile, pressure sensors and industrial automation.
Typical projects, include Shenzhen airport, Shanghai Pudong airport, Shanghai metro, Wuhan metro, Xi'an metro subway, the expo project and so on. Our company has served more than 4000 multinational group and listed companies since its establishment, trust by many years of cooperation is valuable, and also it's the power source to redouble our effort. We do not dare to idle.
Company Information:
Production & Testing equipment:
Certification:
Contact information:
Tel: +86 21-6788 1109
Fax: +86 021-64822375
Add: F2, Building 5, No. 1881 Lanyin Rd,
Songjiang High-tech industrial park, Shanghai, China
1. Q: What is the necessary information needed for quotation? A:The series(M5/M8/M10/M12/M23),coding,male or female,pin number,cable length.
2. Q: What is the minimum order quantity(MOQ)?
A:100 pcs or negotiatable.
3. Q: What do the certifications have?
A: ISO9001:2008, ISO14001, CSA.
4. Q:What does Co-fly can provide for the product' certification?
A: IP67, IP69, UL, CE and RoHS.
5. Q: Sample lead time?
A: One week.
6. Q: Volume order lead time?
A: 3-4 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms is available?
A: EXW, FOB, Telex releases are available.
| Cable Material: |
PVC/Pur/TPU |
| Temperature Range: |
-20~+85 Degree |
| IP Rating: |
IP67 |
| Connector Series: |
M12 |
| Mounting Type: |
Straight/Angle |
| Shielding: |
Available |
| Coupling Nut/Screw: |
Copper Polly with Nickel Plated |
| Cable Length: |
Optional |
| Pin: |
3/4/5/6/8/12/17 Pin |
| Locking Type: |
Fix Screw |
Shanghai Co-fly electrical technology Co., Ltd. is located in Lanyin road No. 1881 of high-tech industrial park in Songjiang, Shanghai (very close to Shanghai Hongqiao airport and high-speed rail station, only 15 minutes drive time).
The quality policy of company: Taking science and technology as the forerunner, striving for development on the basis of quality. It pursues the concept of "rapid, efficient and considerate service". The basic standards of Shanghai Co-fly are to focus on customers, meet needs of users and exceed expectations of customers.
Since June 2004, the company has been specialized in and focused on R&D, production, marketing and service of waterproof connectors, sensors (M12 connector, M8 connector, M16 connector, M23 connector, M5, etc. ), special custom type connector, I/O bus module (M12 hub, M8), one-to-two T-shape and Y-shape splitter, sensor of car tank, wiring harness of new energy automobile, pressure sensors and industrial automation. Products have widely used in many fields, such as engineering machinery, new energy vehicles, production line of auto parts, robot system, hydraulic machinery, electrician electrical systems, instrumentation, mineral, oil and gas drilling anticorrosive engineering, metallurgy, steel, textile, wind, solar, water supply project, power substation, subways, airports, automatic control equipment, automation systems engineering.
Our company fully complies with RoHS environmental protection raw materials in product design. The company successfully has passed the ISO9001: 2008 international quality system certification, the company also has passed TS16949 automotive quality system certification. Spectrum series products have successfully achieved the EU CE/LVD, CE, EMC, IP67 protection grade certification. Quality reliability and technical standard have reached the international and domestic advanced technology level. Now it is bidding high-tech science-based enterprise in Shanghai.
Typical customers include Foton Daimler, industrial robots, Dongfeng faurecia, Shsaic, Emerson, ASCO, etc. Typical projects include Shenzhen airport, Shanghai Pudong airport, Shanghai metro, Wuhan metro, Xi'an metro subway, the expo project and so on. Our company has served more than 4000 multinational group and listed companies since its establishment, trust by many years of cooperation is valuable, and also it's the power source to redouble our effort. We do not dare to idle.

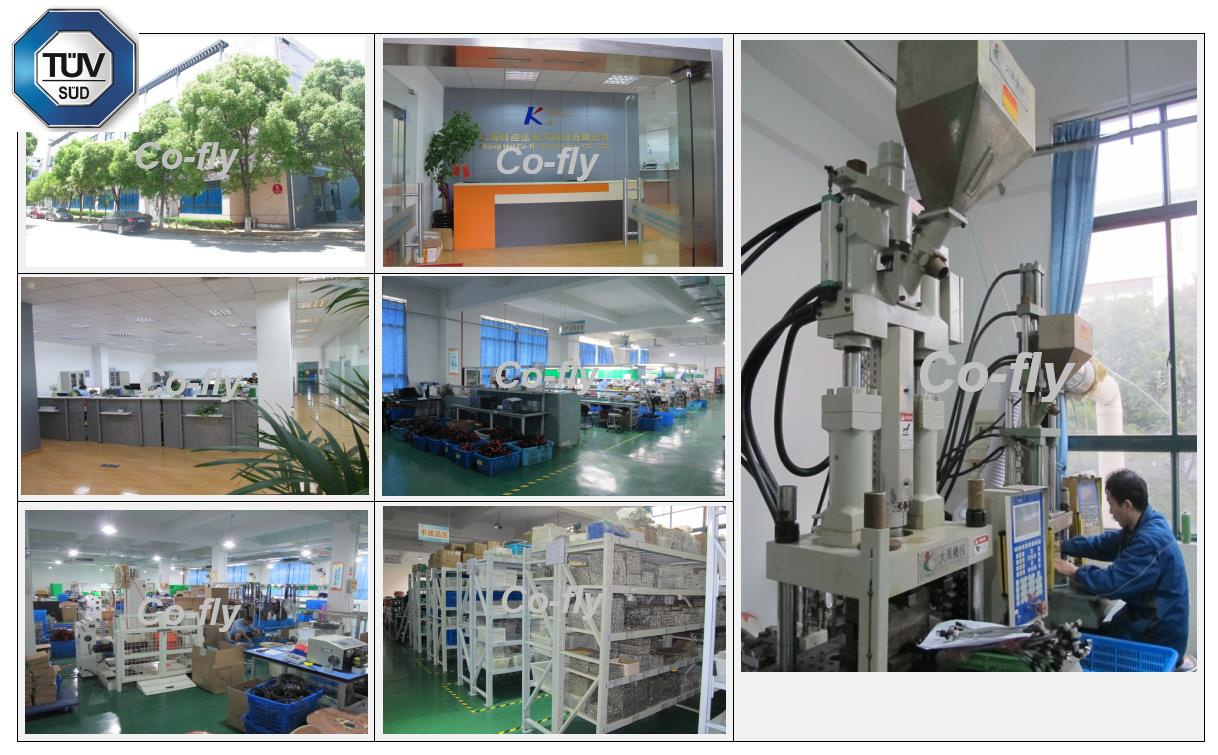

Shanghai Co-fly has enormously powerful electrical hardware and software, which has the ability of mould design, machine design, electric control design and research and development. The production equipment has: Injection molding equipment, lathe, milling machine, drilling machine, automatic wire cutting stripping machine, wire feeding machine, terminal machine, coiling machine, automatic glue machine, and precision nc lathe with close partnership, CNC produced by Japan and Taiwan, CNC milling machine, instrument lathe of automatic feeding and cutting. With more than 15 years of reliable support of suppliers, our company has formed annual production capacity of 2 million (set), including connectors, sensors and component products.

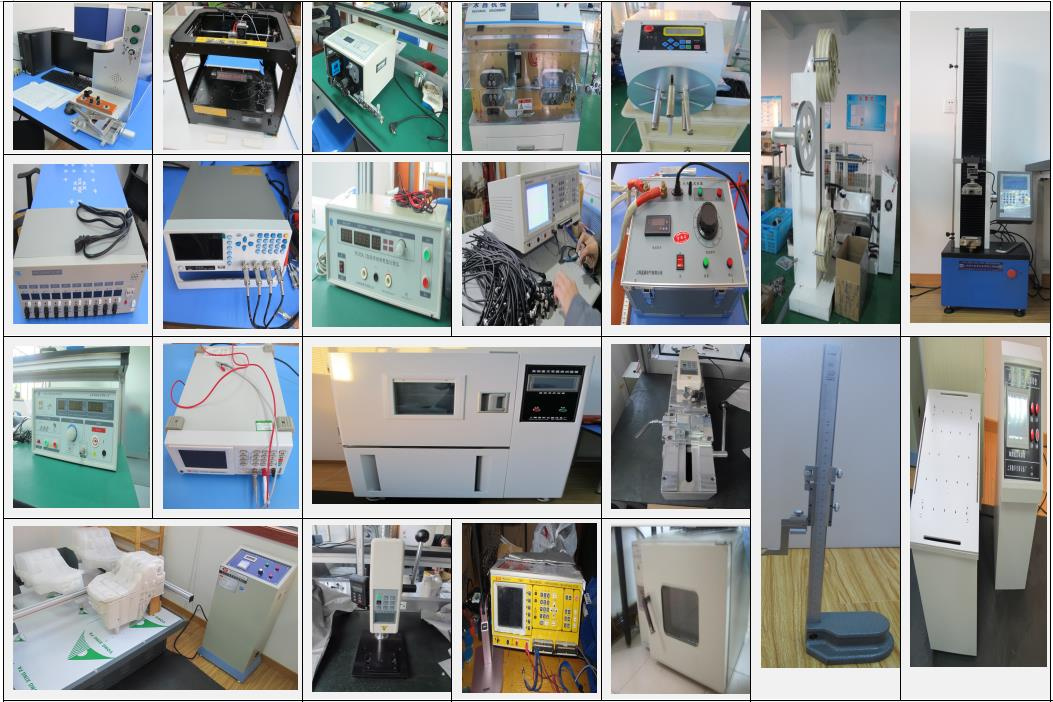

Precision comprehensive measuring equipment, insulation resistance tester, voltage tester, online record resistance tester, magnetometer, 5000N tensile tester, 50N insertion force tester, IP test device, imitation automobile vibration testing device, high frequency vibration tester, Japanese multi-line online and vibration tester, high and low temperature tester, torsion tester, temperature oven, magnetic tester, 0.01% measurement scales, all kinds of gauge block, micrometer, etc.
Shanghai Co-fly welcome your any inquiry!
