Made in china CNLINKO waterproof 12v wire connector terminal block Service connector female molded cable connector
YM-20 Series connector is widely used in variety of challenging environments due to its high-precision,high-quality automatic insertion ,self-locking devices and waterproof, such as :LED screen industry, audio-visual equipment,medical equipment,industrial control ,test and measurement equipment,AV systems,broadcast television and communications industry and other fields.
1.multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
3.PBT shell performance stable,compression, anti-explosion and anti-deformation
4.unique LINKO clamp , 4 holes for installation ensure stable
5.rated current: 20A rms
6.protection level:IP67/IP65
Product Features:

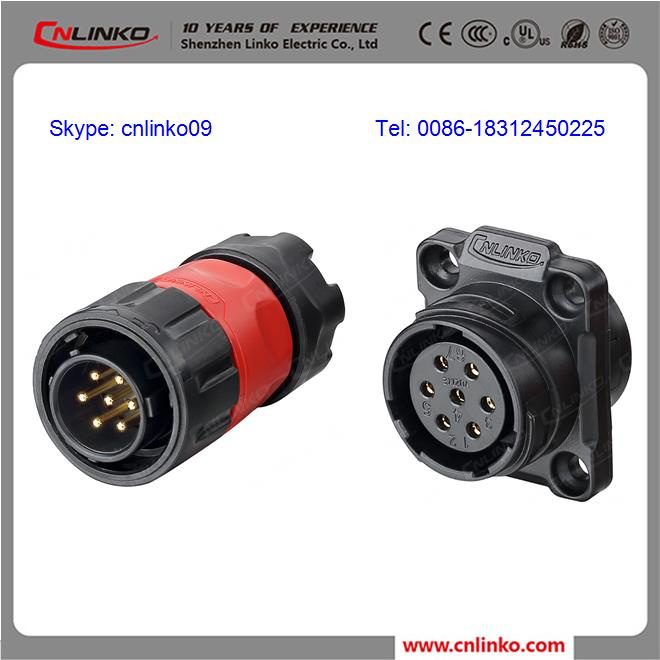

YM-20-C07PE-01-001,YM-20-J07SX-01-001
|
| Connecting mode: | plug/unplug |
| Protection level: | IP65/IP67 |
| Cable specification: | 1.0mm2 ~ 1.5 mm2 /18~16AWG |
| Diameter range: | Φ7mm ~Φ9mm |
| Contact diameter×Qty: | Φ2.0×7 |
| Current rating(A): | 12A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <2.5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | solder |
| Prevent the combustion level: | UL94-V0 |
Produce type: | Circular Plastic Connector |
| Material: |
|
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
|
|
| Main characteristics: |
|
| - Sealed against dust and fluid (IP65/IP68) |
| - Vibration resistance,impact resistance,stretching resistance |
| - With one hand, can quickly insert or pull out |
|
|
| Application industries: |
|
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Packing and Shipping:
1. 10pcs to a box, 24 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 3-10 working days after received the payment
3. Delivery: by DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner
Our Services
1. Supply OEM and ODM service for Circular Plastic Connector
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available for Circular Plastic Connector
5. supply the best service to you with the contact details below:
TEL:0086-0755-36853901 FAX:0086-0755-86960305
Mob: 0086-18312450225
