Basic Info.
Model NO.:DT/DL/DTL/OT/DTGA/DTGY
Type:Cable Lug Terminals Connecting
Material:Aluminium/Copper
Application:Wire Teminal
Species:Terminal
Production Process:Casting
Shape:Round
Interface Type:AC/DC
Certification:BS, UL, VDE
Size:Any Size Can Be Ordered
Surface:Smooth
Model Number:Dt/Dl/Dtl/Ot/Dtga/Dtgy Can Be Ordered
Brand Name:L&R or as Per Clients′ Requirements
Trademark:L&R or according to customer′s requirement
Package:Export Standard Package or as Client Requirement
Specification:ISO9001: 2008
Origin: Shijiazhuang Heibei
Product Description
Basic Info.
Origin: safee shijiazhuang heibei, China
Brand Name: as customer's requirement
Model Number:DT/DL/DTL/OT/DTGA/DTGY Can be ordered
Item: Cable Lug Terminals Connecting
Structure: Terminals Connecting
Material: Aluminium/copper
Size: Can be ordered
Pricing: Factory direct price
Process: Casting
Length: Can be ordered
Usage: Wire teminal
Export: Global
Surface: Smooth
Packaging: wooden cases or as customer's requirement
Product Description

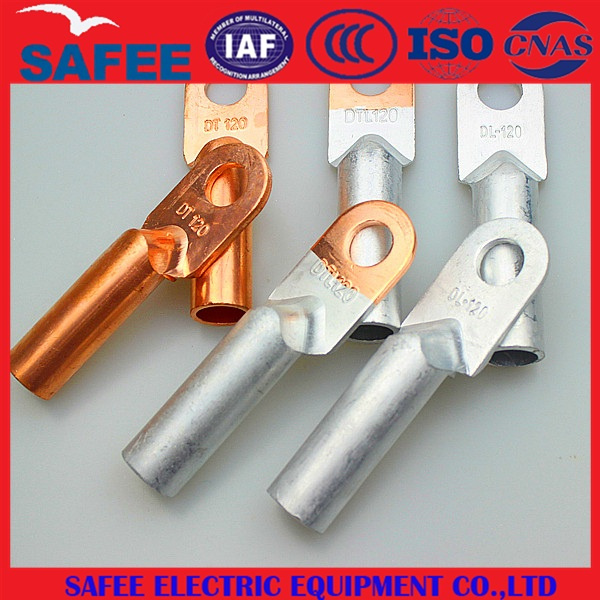

aluminum or copper electrical cable lugs terminal lugs
These products are appliable to the connection of wires in distribution equipent power
supply cable with eledctrinic apparatus,it is made of (T2) copper tube by die cast and coated tin.
1.DTL series of copper_aluminum wiring tcrminals are suitable for transition
conncction of the circular aluminium wircs,hcmicycle_sertor aluminium wires,
power supply cables in the distribution equipment and copper terminals of
electrical equipment.
2.The material of alminium and copper is that of L3 and T2 respctively.
3.The technology of friction welding is wonderfully adopted.Therefore they have
disinguishing features of strong weld intcnsity,good nature in electrification,
resistant galvanic corrosion and long service life.
TYPE
| Φ
| D
| d
| L
|
DT(G)-10
| 6.2
| 8
| 5
| 52
|
DT(G)-16
| 6.2
| 9
| 6
| 57
|
DT(G)-25
| 6.2
| 10
| 7
| 62
|
DT(G)-35
| 8.5
| 11
| 8
| 66
|
DT(G)-50
| 8.5
| 13
| 10
| 72
|
DT(G)-70
| 10.5
| 16
| 12
| 80
|
DT(G)-95
| 10.5
| 18
| 14
| 85
|
DT(G)-120
| 12.5
| 20
| 15
| 96
|
DT(G)-150
| 12.5
| 23
| 17
| 102
|
DT(G)-185
| 14.5
| 25
| 19
| 114
|
DT(G)-240
| 16.5
| 27
| 21
| 120
|
DT(G)-300
| 16.5
| 31
| 24
| 135
|
DT(G)-400
| 18.5
| 34
| 26
| 150
|
DT(G)-500
| 20.5
| 38
| 30
| 170
|
DT(G)-630
| 22.5
| 45
| 35
| 210
|
DT(G)-800
| 22.5
| 50
| 40
| 270
|
Type | Ø | D | d | L | L1 | B |
| DTL-10 | 8.5 | 9 | 6 | 65 | 32 | 15 |
| DTL-16 | 8.5 | 10 | 6 | 67 | 35 | 16 |
| DTL-25 | 8.5 | 11 | 7 | 74 | 36 | 18 |
| DTL-35 | 10.5 | 12 | 8.6 | 79 | 39 | 20.5 |
| DTL-50 | 10.5 | 14 | 9.6 | 82 | 38 | 23 |
| DTL-70 | 12.5 | 16 | 11.5 | 92 | 45 | 26 |
| DTL-95 | 12.5 | 18 | 13.5 | 101 | 48 | 28 |
| DTL-120 | 14 | 20 | 15 | 105 | 50 | 30 |
| DTL-150 | 14.5 | 22 | 16.6 | 114 | 53 | 30 |
| DTL-185 | 16.5 | 24 | 18.6 | 121 | 53 | 34.5 |
| DTL-240 | 16.5 | 26 | 21 | 126 | 55 | 37 |
| DTL-300 | 20 | 32 | 23 | 142 | 65 | 42 |
| DTL-400 | 20 | 38 | 27 | 170 | 72 | 56 |
| DTL-500 | 21 | 45 | 29 | 195 | 78 | 60 |
| DTL-630 | 21 | 52 | 35 | 220 | 80 | 80 |
| TYPE | Dimensions(mm) |
| Φ | D | d | L | L1 | B |
| DL-10 | 8.5 | 9 | 6 | 68 | 28 | 16 |
| DL-16 | 8.5 | 10 | 6 | 70 | 30 | 16 |
| DL-25 | 8.5 | 12 | 7 | 75 | 34 | 18 |
| DL-35 | 10.5 | 14 | 8.5 | 85 | 38 | 20.5 |
| DL-50 | 10.5 | 16 | 9.5 | 90 | 40 | 23 |
| DL-70 | 12.5 | 18 | 11.5 | 102 | 48 | 26 |
| DL-95 | 12.5 | 21 | 13.5 | 112 | 51 | 28 |
| DL-120 | 14.5 | 23 | 15 | 120 | 53 | 30 |
| DL-150 | 14.5 | 25 | 16.5 | 126 | 56 | 34 |
| DL-185 | 17 | 27 | 18.5 | 133 | 58 | 37 |
| DL-240 | 17 | 30 | 21 | 140 | 60 | 40 |
| DL-300 | 21 | 34 | 24 | 160 | 65 | 50 |
| DL-400 | 21 | 38 | 26 | 170 | 70 | 50 |
| DL-500 | 21 | 47 | 29 | 190 | 75 | 60 |
| DL-630 | 21 | 54 | 35 | 220 | 85 | 80 |
| DL-800 | 21 | 60 | 38 | 250 | 100 | 100 |
