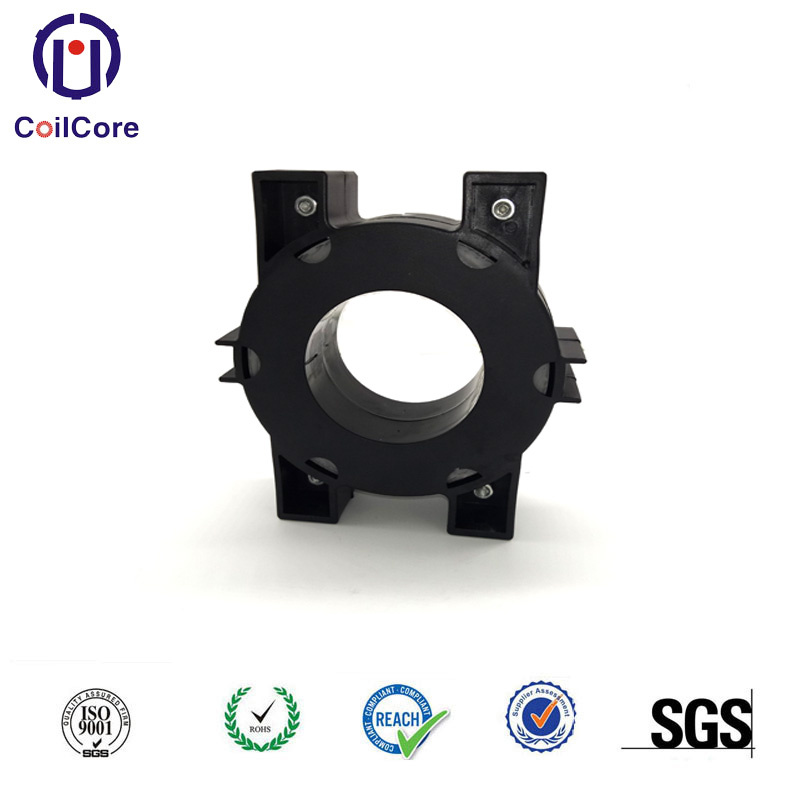

Made in China PBT Case Transformer Core Ntl-1207030 for Gas Insulated or Oil-Immersed Switch-Gears

Name: Made in China PBT Case Transformer Core Ntl-1207030 for Gas Insulated or Oil-Immersed Switch-Gears
Brand: all-electronics-online.com
SKU: 840608385
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Key Properties:

· High saturate induction reduce volume of transformers

· High permeability and low coercivity improve efficiency,

· lower exciting power and reduce copper loss

· Low core loss reduce temperature rise of transformers

· Excellent thermal stability with the serving temperature of -55C-130C for long time

· LOWEST CORE LOSS :

P <6W/Kg @ 20KHz,0.5T , P<9W/Kg @ 20KHz, 1T, P<5W/Kg @ 35KHz,0.5T, P<14W/Kg @ 35KHz,1T

· High Bs =1.4T , low Br <10mT, Low Hc <1A/m , u=10000

Main Application:

• Inverter welding machines
• X-Ray and laser source power supplies
• Communication power supplies
• High frequency heating systems
• Electrolytic and plating power supplies

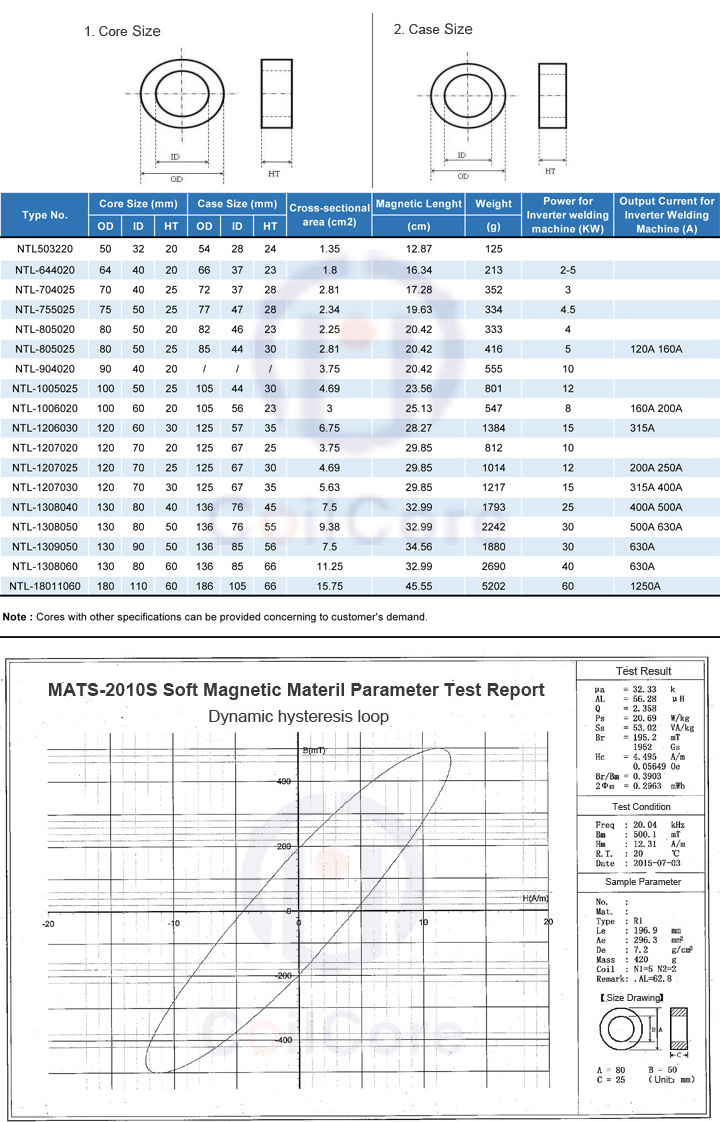

Not only power transformer cores, but transformer we are specialized in. Power Transformer Cores for Welding Machine with Standard Size in the market, details as below below:

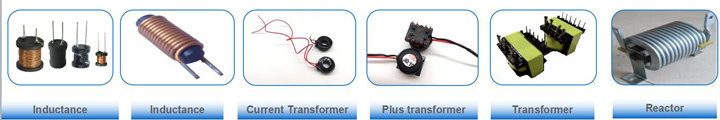

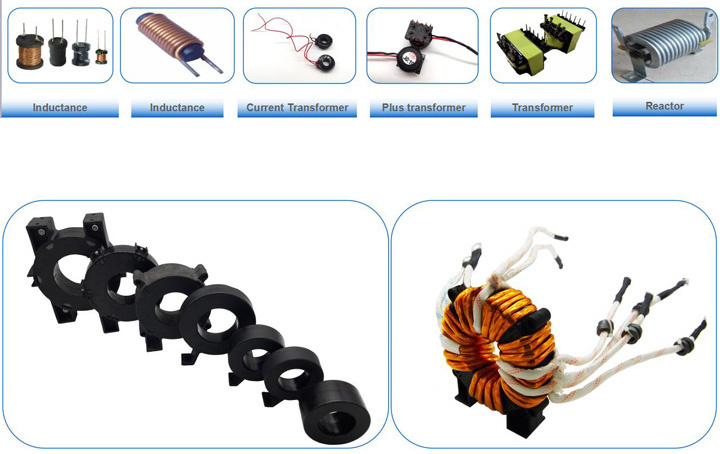

More magnetic components for welding machine:

Addr :No.1 JiShan BuXia Lu,TianHe District, Guangzhou City, China
Tel :+86-20-85649266
Fax :+86-20-85649263

Send your Inquiry Details in the Below, Click "Send" Now!

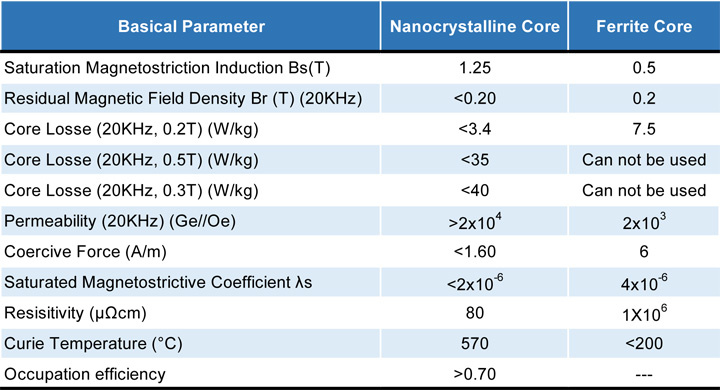

Prod Model:	NTL-1207030
Material:	Nanocrystalline
Work Frequency:	20kHz
Core Loss:	P<20W/Kg@20kHz
BS:	1.25t
Coil Structure:	Toroidal
Br(T) (20kHz):	<0.20
Electrical Resistivity:	130μΩ.Cm
Saturated Magnetostrictive:	<0.000002
Coercivity (Static):	Hc <1.60 a/M
Core Losse (20kHz, 0.2t):	<3.4 W/Kg
Application:	Instrument
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Phase:	Single & Three
Coil:	Nanocrystalline Core
Certification:	SGS, FTA
Usage:	Welding Machine
Brand:	Coilcore

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
