Basic Info
- Model NO.: LYD-1903
- Signal Transmission: RF Remote Control
- Certification: RoHS, CE
- Transmission Distance: <50m
- Material: Plastic
- Max. Load Power: 72W
- Package: Natrual Packing
- Origin: China
- Application: Household Appliances, Automatic Doors, LED Products, Industrial Machinery, Special Equipment, Audio / Video Players
- Type: Button
- Universal: Universal
- Voltage: 12V
- Battery Type: 23A12
- Trademark: louita
- Specification: CE ROHS
- HS Code: 85371090
| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | louita | Model Number: | LYD-1903 |
| Type: | Remote Control | Max. Load Power: | 288W | Voltage: | DC12V |
| Applicable Lights: | WS1812 Led Strips | Warranty: | 3 year | Remote Distance: | Max 30m |
| Application: | For led strip with IC 6803 1812 1886 1903 | Button Number: | 8Key | Feature: | 133 Change Magic Dream Color |
Specification for Controller:Working temperature: -20- 60 Degree C
Supply voltage: DC12V
consume power:2W
Output: Tow group SPI signal
Length setup function
A lot of programs to chose
Memory function
With digital tube, left two reveal the mode, right two reveal the speed

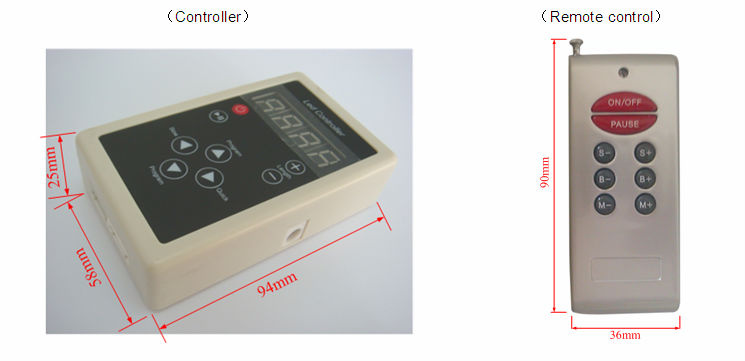

External Dimension:
Direction for use:
1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between
connecting wire before you turn on the power. Then set the steps as follows.
2 The two number appear on the left side of the digital tube is for the Mode function,and the right side two
number in the digital tube is to shown the speed level.

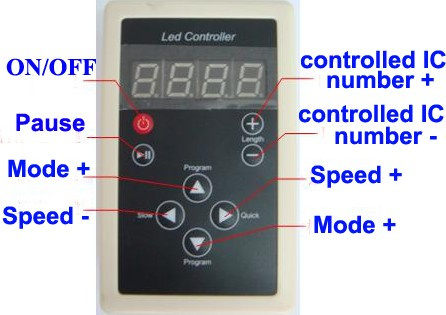

3 There are 8 buttons on the controller, the function of the keys are as below:
Function of remote panels:
ON/OFF: ON/OFF button, it can open or close led anytime.
MODE: Play/pause button, pressing this button to pause, you can see the static affection of led.
S+: Speed quick button, the least number is 1
S-: Speed slow button, there are 100 step in all, the most number is 100
B+: Program choosing button, up direction there are 94 programs in all.
B-: Program choosing button, down direction.
M-:Reducing button,to reduce the IC NUMBER,the least number is 3.
M+:Adding button, to add the IC NUMBER, the most number is 1024.
Safety Information:
Supply voltage of this product is DC12V never connect to other high voltage.
Never connect two wires directly in case of short circuit.
Lead wire should be connected correctly according to colors that connecting diagram.
Warranty of this product is one year, but exclude the artificial situation of damaged.
