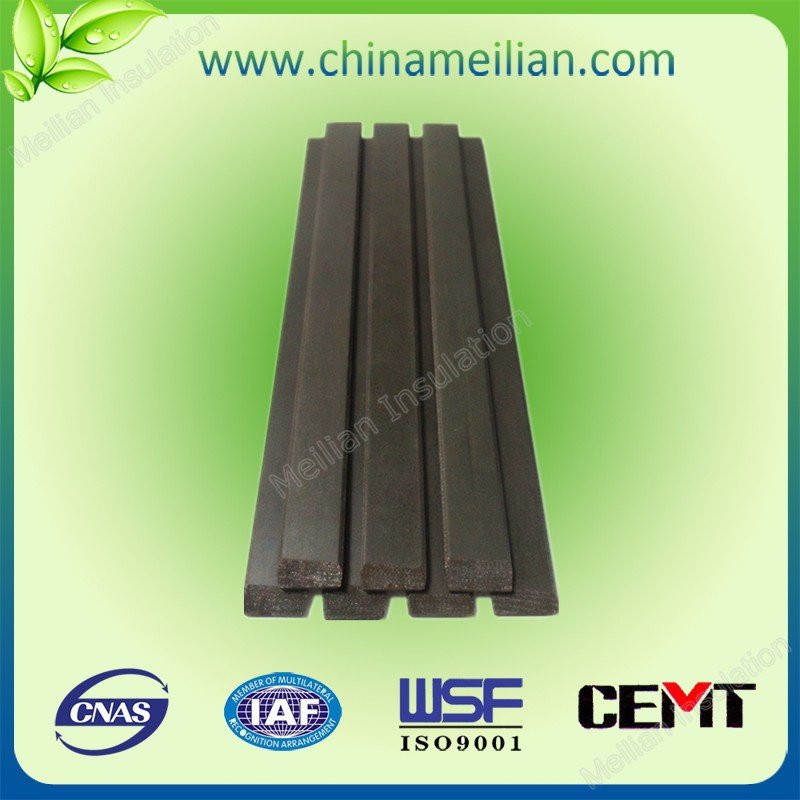

Magnetic Electrical Insulation Laminated Sheet (Grade F)

Name: Magnetic Electrical Insulation Laminated Sheet (Grade F)
Brand: all-electronics-online.com
SKU: 743318225
Availability: InStock
Rating: 5 (140 reviews)

Price:	US $ 9-12.5kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1kg
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Feature:

Magnetic stator slot wedges
Excellent mechanical property
Good electric property
Good heat & moisture resistance
Easy for installing

Application:
Motors & generators
Traction motors
High-speed motors
Wind turbines Metro reactors
Technical Parameters:

Basic Information
Product name	Magnetic Electrical Insulation L aminated Sheet
Item No.	MJ-3342
Brand	MJ
Material	Epoxy resin and Alkali free fiberglass cloth with magnetic powder
Grade	Grade F
Technical Specification
Density	≥3.0g/cm 3
Appearance	Natural color Brown, Dark Brown, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation
Sheets Thickness	0.1-50mm
Size	≥480x980mm
Formation methods	High temperature and high pressure
Thermal stability in 24h	≥200°C
Water absorption	≤1.0%
Impact strength	≥40 KJ/m 2
Tensile strength	≥120 Mpa
Flexural strengt h at room temperature at high temperature 155°C	≥ 195Mpa ≥ 120Mpa
Comparative magnetic permeability 1.6KA/m (200 Oe)	≥7.52
Reference Standard	GB/T1303.1-1998

Prod Model:	MJ-3342
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	3.0g/cm3
Size:	Customization
Appliction:	Motor & Generator
Customizable:	Yes
Delivery:	7-10 Working Days
Tensile Strength:	More Than120 MPa
Formation Methods:	High Temperature and High Pressure
Samples:	Free Samples Are Welcome
MOQ:	1 Piece
Application:	Generator
Chemistry:	Hybrid Insulation
Material:	Resin
Thermal Rating:	F 155
Maximum Voltage:	>100KV
Type:	Insulation Slot Wedge
Brand:	Mj

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services "
