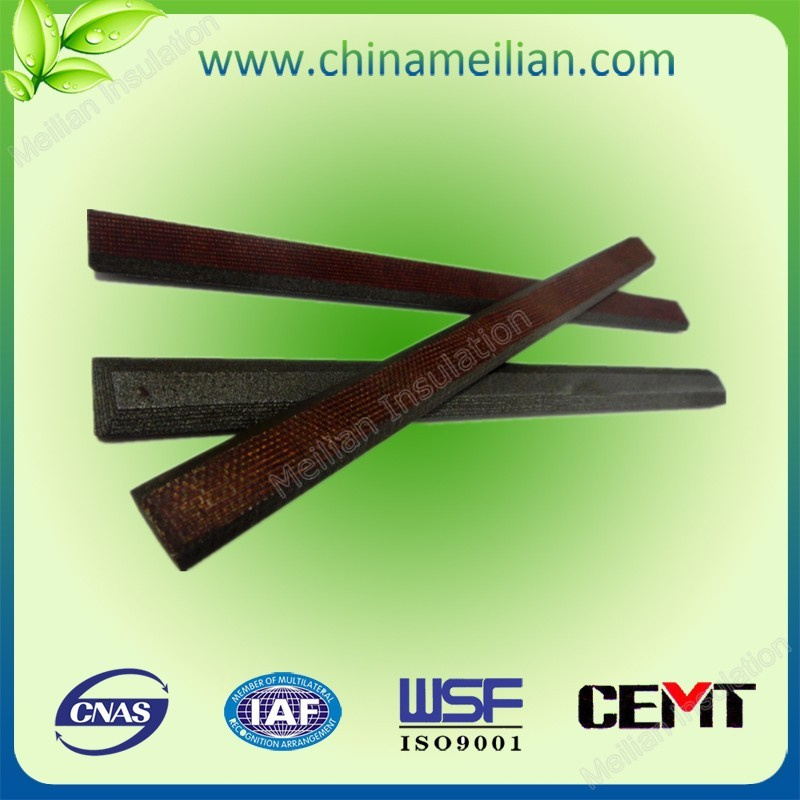

3352 Magnetic Stator Slot Wedge
Features:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products
| Basic information |
| Product name | Electrical Insulation Stator Wedge |
| Item No. | With the same item numbers of the laminates which used for processing |
| Brand | MJ |
| Material | BMI resin and Alkali free fiberglass cloth |
| Grade | Grade H |
| Feature |
| Excellent mechanical & electric property Good heat & moisture resistance Easy for installing |
| Application |
| Motors & generators Traction motors High-speed motors Wind turbines Metro reactors |
| Technical Performance |
| Density | ≥1.7g/cm 3 |
| Appearance | Natural color Dark brown, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation |
| Sheets Thickness | 0.1-50mm |
| Size | 1220x980mm |
| Formation methods | High temperature and high pressure |
| Thermal stability in 24h | ≥220ºC |
| Water absorption | ≤1.0% |
| Impact strength parallel to layer (Charpy method) | ≥147 KJ/m 2 |
| Tensile strength | ≥120 Mpa |
| Flexural strength perpendicular to layer at room temperature at high temperature 180ºC±2 | ≥400 MPa ≥200 MPa |
| Electric strength,perpendicular to the layer(at 90ºC±2oil.) 0.5 -1.0mm 1.1-2.0mm 2.1-3.0mm | ≥22 MV/m ≥20 MV/m ≥18 MV/m |
| Dissipation factor Under 48Hz~62 Hz Under 1MHz. | ≤0.08 |
| Voltage resistance parallel to layer (at 90ºC±2ºCoil for 1min) | ≥30 kV |
| Insulation resistance parallel to the layer . At room temperature Immersing in water for 24h | ≥1.0×10 4 MW ≥1.0×10 2 MW |
| Volume resistivity At room temperature Immersing in water for 24h 180ºC±2ºC | ≥1.0×10 5 MW/m ≥1.0×10 3 MW/m ≥1.0×10 3 MW/m |
| Surface resistivity At room temperature Immersing in water for 24h 180ºC±2ºC | ≥1.0×10 6 MW ≥1.0×10 4 MW ≥1.0×10 4 MW |
| Reference Standard | GB/T1303.1-1998 |
