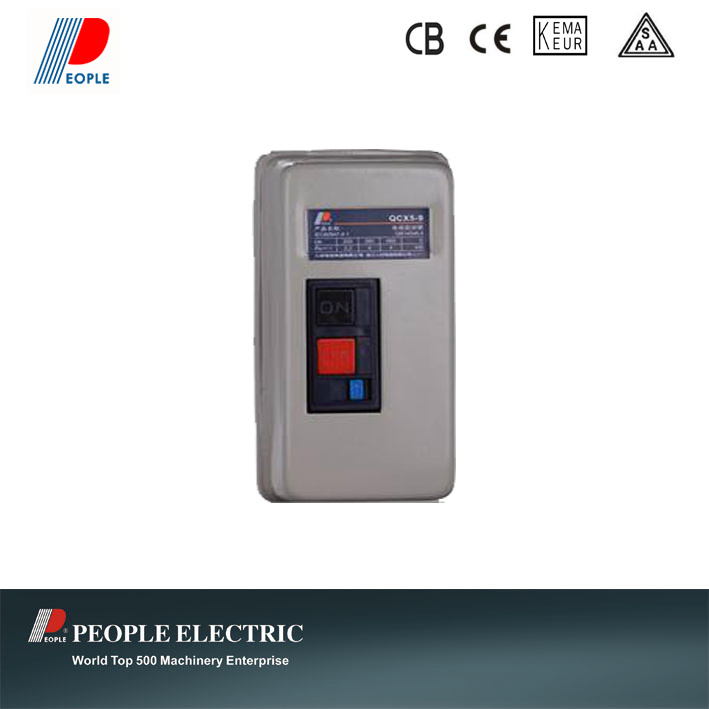

ApplicationQCX5 magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 660V for remote making and breaking motor, with overload, phase-lose & voltage-absence protection for motors
Small volume, light weight, low power consumption, high efficiency, safe and reliable performance
Operation surrounding & Installation1.Ambient Temperature: -5ºC ~40ºC, the average < 35ºC within 24 hours
2.Operating Altitude: 2000m
3.Mounting Position: ±5°(Vertical Plane)
4.Pollution Class: 3 class.
5.Mounted type: III

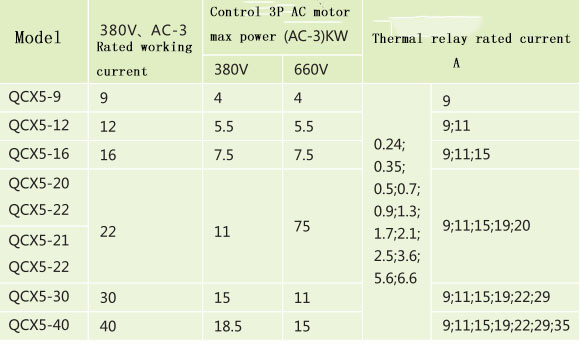

Specification
Rated Isolation voltage: 660V; rated working voltage: 220V. 380V,660V
Overload protective device acting characters
1 Acting features (Every phase of loads are balanced)
| No | Setting current times | Acting time | Begining State | Ambient Temperature |
| 1 | 1.05 | >2h | cold | 20ºC |
| 2 | 1.2 | <2h | cold |
| 3 | 1.5 | <2 min | cold |
| 4 | 7.2 | 2s | cold |
2.Acting features(Every phase of loads aren't balanced)
| No | Setting current times
| Acting time | Begining state | Ambient Temp |
| either two phases | third phase |
| 1 | 1 | 0.9 | >2h | cold | 20ºC |
| 2 | 1.15 | 0 | <2h | cold |
