Magnetic Starter LE1-D

Name: Magnetic Starter LE1-D
Brand: all-electronics-online.com
SKU: 611246115
Availability: InStock
Rating: 4.6 (42 reviews)

Price:	US $ 6.2-6.92/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

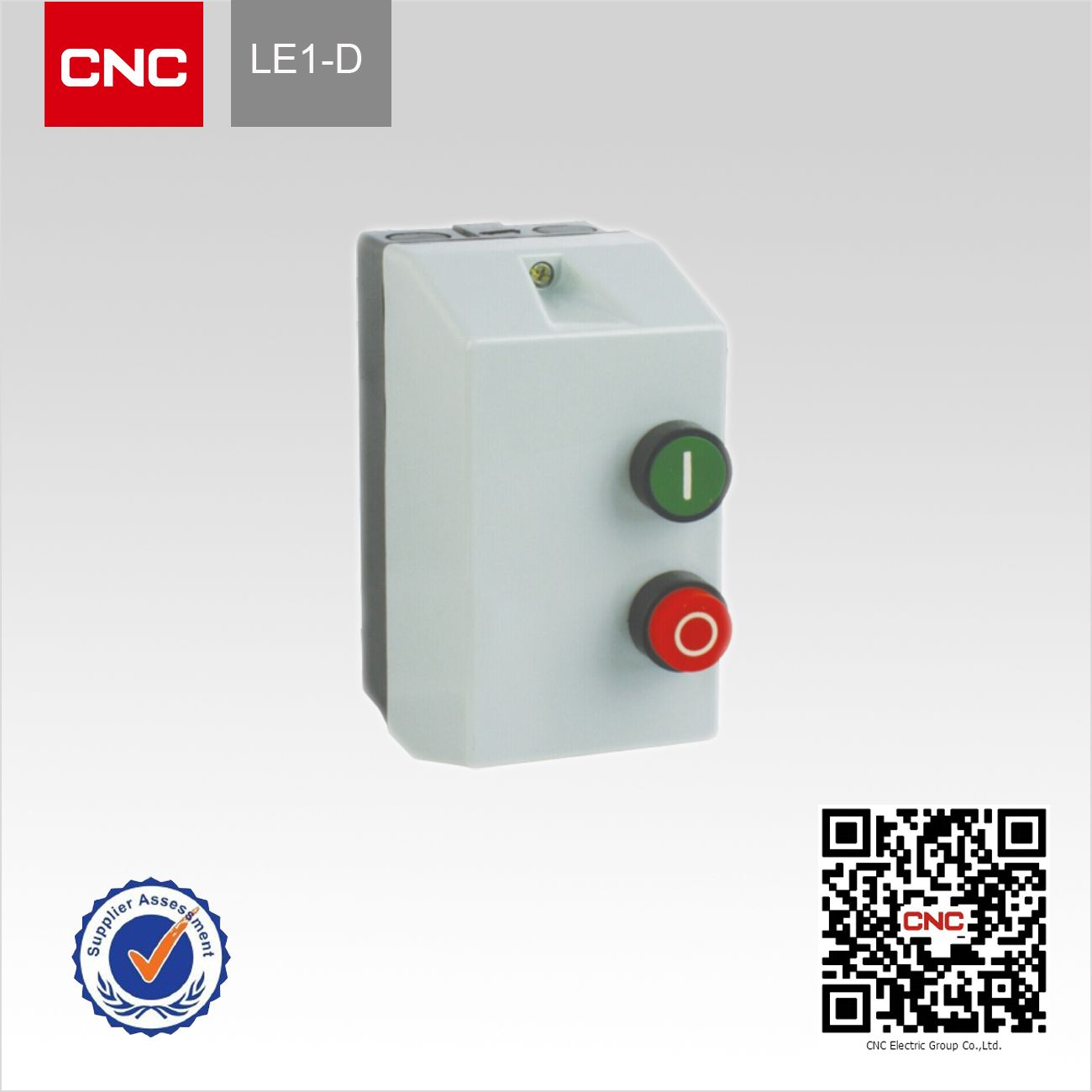

LE1-D magnetic starter
1. Mainly applied in circuit of AC 50 or 60Hz, voltage up to 550V.
2. Small volume, light weight, low power consumption, high efficiency, safe and reliable performance etc.

Trademark: CNC, OEM
Standard: IEC 60898
Rated voltage: 220/230, 380/400, 415, 440, 500, 660/690 V
Rated current: 9, 12, 18, 25, 32, 40, 50, 65, 80, 95A
Productivity: 20, 000PCS/DAY
Origin: China
Packing: Export Package
Min. Order: 5, 000PCS
Transportation: By sea or air

Maximum power AC3 duty(KW)						Rated current(A)	Protection grade	Matched thermal relay(A)
220V 230V	380V 400V	415V	440V	500V	660V 690V
220V 230V	380V 400V	415V	440V	500V	660V 690V
2.2	4	4	4	5.5	5.5	9	IP42, IP65	LR2 D1312, LR2 D1314
3	5.5	5.5	5.5	7.5	7.5	12	IP42, IP55	LR2 D1316
4	7.5	9	9	10	10	18	IP42, IP55	LR2 D1321
5.5	11	411	11	15	15	25	IP42, IP55	LR2 D1322, LR2 D2353
7.5	15	15	15	18.5	18.5	32	IP55	LR2 D2355
11	18.5	22	22	22	30	40	IP55	LR2 D3353, LR2 D3355
15	22	25	30	30	33	50	IP55	LR2 D3357, LR2 D3359
18.5	30	37	37	37	37	65	IP55	LR2 D3361
22	37	45	45	55	45	80	IP55	LR2 D3363, LR2 D3365
25	45	45	45	55	45	95	IP55	LR2 D3365

Prod Model:	LE1-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ambient Temperature:	-5~40
Pollution Level:	3
Installation Category:	III
Matched Therma Relay:	Lr2-D
Matched Contactor:	Cjx2-D
