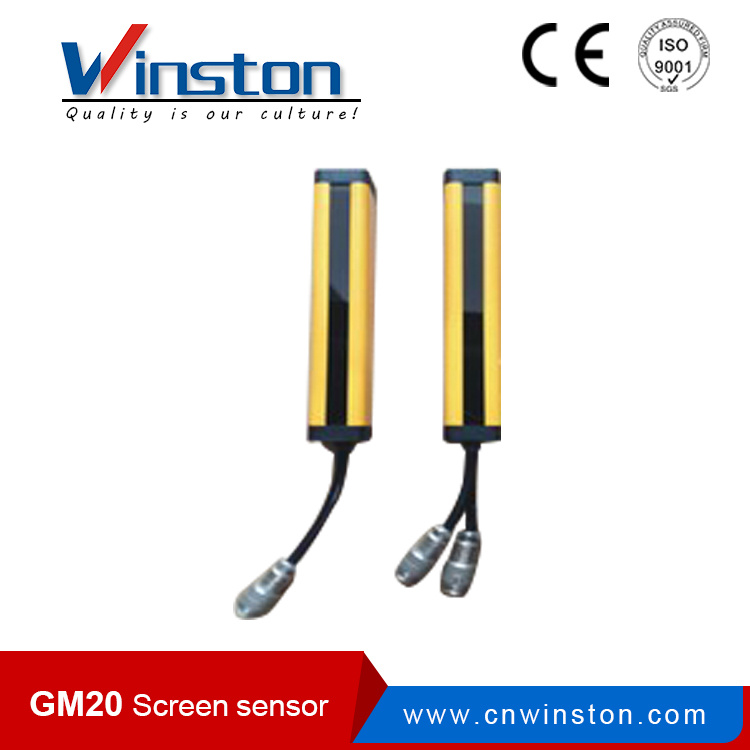

Area secure sensor
Applicable for the safety detection of automatic assemble line. Elevator, danger restricted zone, metal forming machine, punching & shearing machine tool, pater cutter and so on and has protection function.
Adopting synchronism scanning technology, concentrated beam path, non working blind area, strong anti-interference ability, and convenient installation.
Resistance to matual interference function, it is possible to closely mount more than 2sets of devices.
Faultself-check, function, power failure stop,inner component fault stop, connection fault stop, object invading stop and signal output.
Attached with specific control supplying powersul control function.
Replaceable for similar products made by SICK,STI,KEYENCE,HONEYWELL Corp.
| Detection way | Model | Control output | Detection distance | Optic axis distance | Optic axis number | Detection width | Min. detectable object |
| Trough-beam:4CM spacing | GM420-4N | N:12-24VDC
J:10-48VDC/VAC | ≤3M | 40mm | 4 | 60mm | φ50mm |
| GM20-4J |
| GM20-6N | 6 | 100mm |
| GM20-6J |
| GM20-8N | 8 | 140mm |
| GM20-8J |
| GM20-10N | 10 | 180mm |
| GM20-10J |
| GM20-12N | 12 | 220mm |
| GM20-12J |
| GM20-16N | 16 | 300mm |
| GM20-16J |
| GM20-20N | 20 | 380mm |
| GM20-20J |
| GM20-24N | 24 | 460mm |
| GM20-24J |
| Mains input voltage | 200-220VAC, 50/60Hz,3.5VA |
| Mains output voltage | N:12-24VDC J:10-48VDC/VAC |
| Consumption current | Under 100mA |
| Response time | Under 20mS |
| Output form | 1.6v collector open circuit NPN type: current 100mA,residual voltage 1.6v |
| Output state | On when all the optic axis is photic |
| Optic source | Infrared LED |
| Shell material | PMMA Shell: Alalloy, color filter cover :PMMA |
| Environment-resisting light | Incandescent lamp:intensity of illumination of photic surface3000Lx, sunlight: intensity of illumination of photic surface 1000Lx |
| Ambient Temperature | -10ºC--+50ºC |
| Environment Humidity | 35-85RH |
