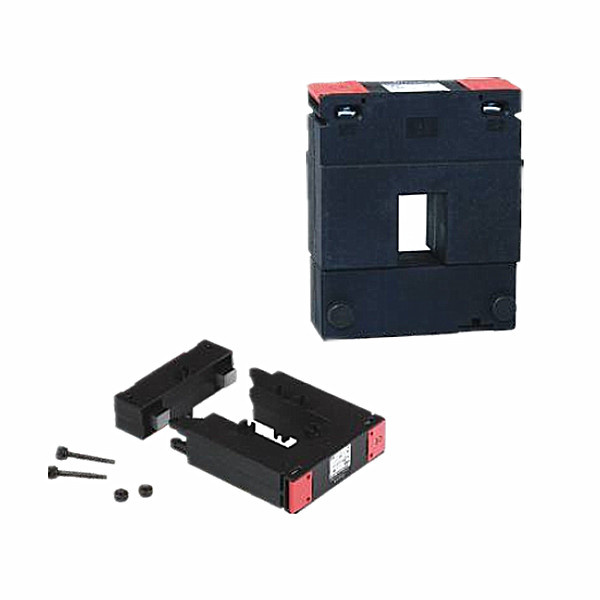

Maxwel Manufacture Current Transformer (DBP-88)

Name: Maxwel Manufacture Current Transformer (DBP-88)
Brand: all-electronics-online.com
SKU: 704672305
Availability: InStock
Rating: 4.5 (98 reviews)

Price:	US $ 1.5-2.5/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

DBP features:
Small size and easy mounting
Wide inner window, allowing clamping of big cables or bus bar
Wide range of sizes to accommodate all the existing installation
High accurancy and reliability

DBP tecnicial specifications:
Primary current: 100A-5000A
Secondary current: 5A/1A
Standard approval: IEC44-1/BS7626/VDE0414/VL94
Maximum voltage: 0.72/3kv
Frequency: 50/60Hz
Rated load: 1VA-30VA
Class: 0.5/1.0/3.0
Short-time thermal current: Ith=100*in
Rated security coefficient Fs<5

Model	Current Ratio (A)	Class0.5 (VA)	Class1.0 (VA)
DBP-88	250/5	-	1.5
DBP-88	300/5	-	1.5
DBP-88	400/5	-	2.5
DBP-88	500/5	1.5	2.5
DBP-88	600/5	2.5	5
DBP-88	750/5	2.5	5
DBP-88	800/5	3.75	5
DBP-88	1000/5	5	7.5

Product Details:

FAQ
1: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.

2: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.

3. How to pay?
A: T/T will be more appreciated. Parpal or Wester Union
30% deposit before producing, 70% balance before loading by T/T.

4. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.

5. What about the Package?
A: Standard export package and we can make special designed for you if need.

Maxwel Manufacturing Co.,Limited Welcome to you!

Prod Model:	DBP-88
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Class:	0.5/1.0
Colour:	Black/Red

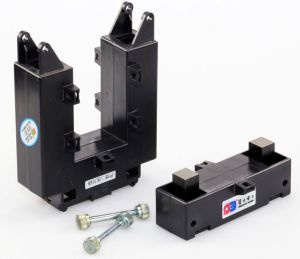

Feature:	Split Core Current Transformer
Capacity:	250A-1000A
Standard Certificate:	IEC44-1/BS7626/VDE0414/Vl94
Phase:	Three
Type:	Current Transformer
