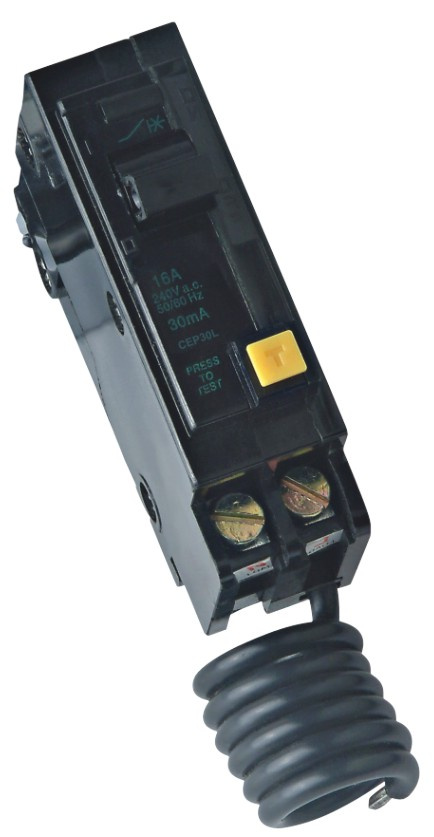

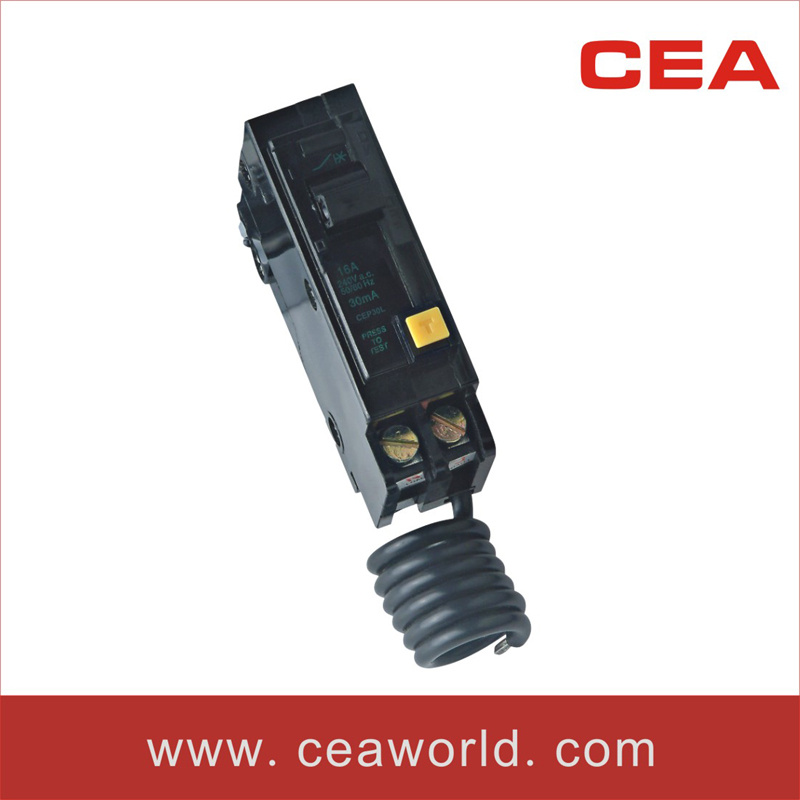

MB161 Residual Current Breaker with Overload Protection

Name: MB161 Residual Current Breaker with Overload Protection
Brand: all-electronics-online.com
SKU: 690009265
Availability: InStock
Rating: 4.4 (29 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Type test to bsen60947-2, iec60947-2, bs4293
Category of duty: M3(3000A) 240V~

Construction and feature:
The unit combiness the over current protection of MCB with an electronic RCD capable of high sensitivity operation with special fail-safe features.
Provides protection against earth fault/leakage current, short-circuit and overload

Technical data:

Type	Electro-magnetic type
Residual current characteristics	AC
Pole no.	1p+n
Tripping curve	B, c
Rated short-circuit capacity	10ka
Rated current(a)	6, 10, 16, 20, 25, 32
Rated voltage	230/240V AC
Rated frequency	50/60Hz
Rated residual operating current(ma)	0.03, 0.1
Tripping duration	Instantaneous ≤ 0.1s
Electro-mechanical endurance	4000 cycles

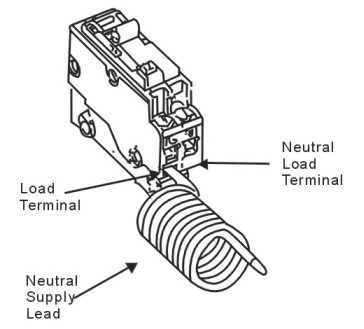

Connection terminal	Pillar terminal with clamp

Prod Model:	CEP30L, MB161, 161DCPGF30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	1
Operation:	Electro-Magnetic Type
Structure:	Moulded Case Circuit Breaker

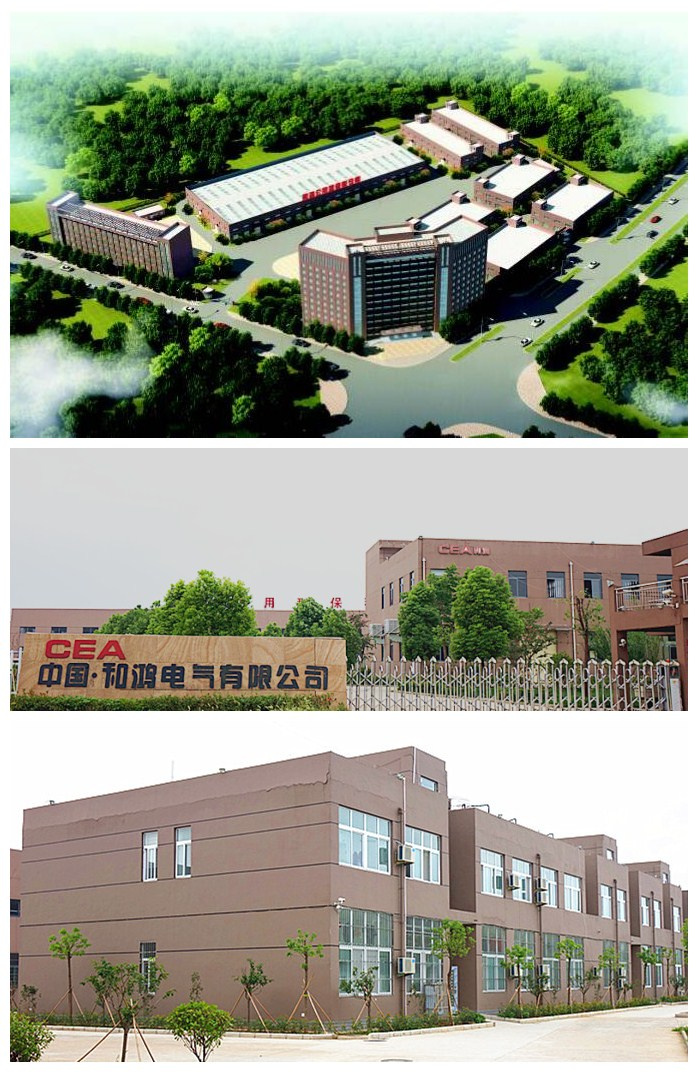

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

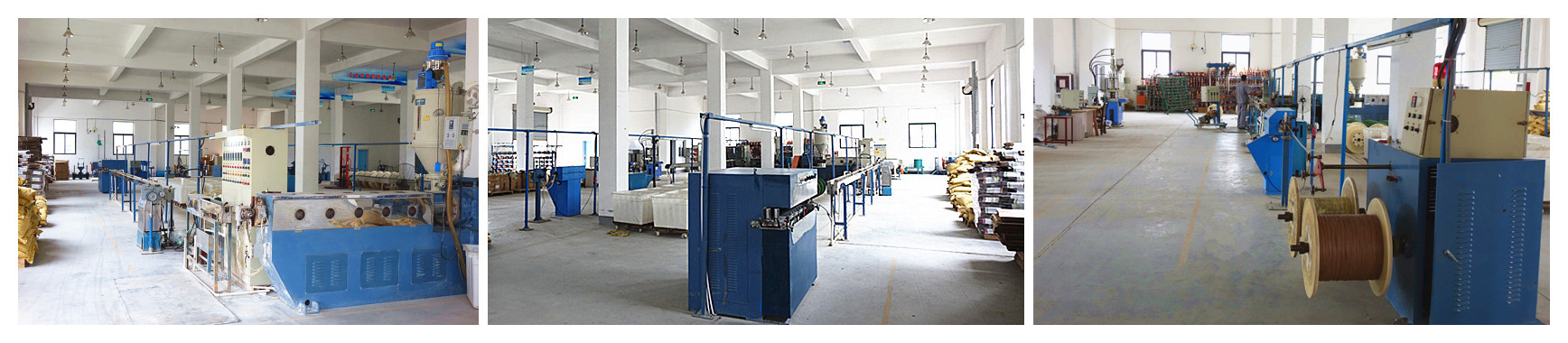

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.
