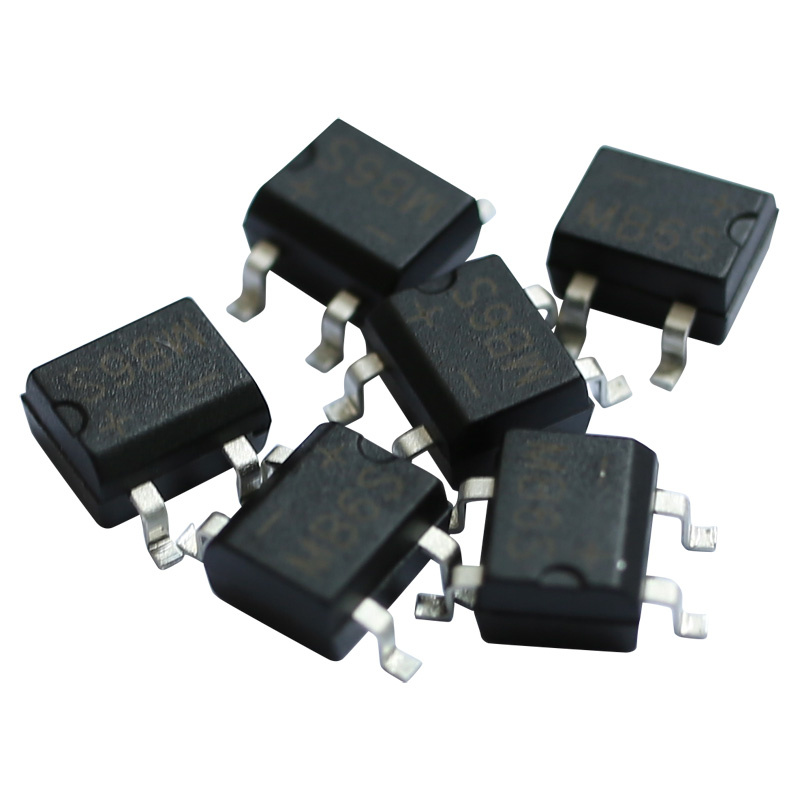

MBS SERIES
SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS
Voltage Range - 200 to 1000 Volts Current - 0.5/0.8 Ampere
Features
High current capability.
Low forward voltage drop.
Low leakage current.
High surge current capability.
Mechanical Data
Case : Molded plastic body.
Terminals: Plated axial leads,solderable per MIL-STD 750, method 2026.
Polarity : Polarity symbols marked on case.
Mounting position : Thru hole for #6 screw,5in.-lbs.torque max.
Weight : 0.04 ounce, 1.0 gram.
Packing Details
1. T/P: 5000EA per box, 50,000EA per carton,
2. SMD: 5000EA per reel, 80,000EA per carton,
3. SOD-123: 3000EA per reel, 120,000EA per carton
L/T:1-3W.
MBS SERIES RANGE :
| TYPE | Maximum Peak | Maximum Average | Maximum Forward | Maximum Reverse | Maximum Forward | Package |
| Reversee | Rectified | Prak Surge Current | Current | Voltage |
| Voltag | Current | @8.3ms Superimposed | @VRRM TA=25ºC | TA=25ºC |
| VRRM | I(AV) | IFSM | IR | IF | VF |
| V | A | A | μA | A | V |
| ABS2 | 200 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 | ABS |
| ABS4 | 400 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 |
| ABS6 | 600 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 |
| ABS8 | 800 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 |
| ABS10 | 1000 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 |
| MB2S | 200 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 | MBS |
| MB4S | 400 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB6S | 600 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB8S | 800 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB10S | 1000 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB2F | 200 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 | MBF |
| MB4F | 400 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB6F | 600 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB8F | 800 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB10F | 1000 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB2M | 200 | 0.8 | 30 | 5.0 | 0.8 | 1.1 | MBM |
| MB4M | 400 | 0.8 | 30 | 5.0 | 0.8 | 1.1 |
| MB6M | 600 | 0.8 | 30 | 5.0 | 0.8 | 1.1 |
| MB8M | 800 | 0.8 | 30 | 5.0 | 0.8 | 1.1 |
| MB10M | 1000 | 0.8 | 30 | 5.0 | 0.8 | 1.1 |
| DF005 DB101 | 50 | 1.0 | 50 | 10 | 1.0 | 1.1 | DB-1 |
| DF01 DB102 | 100 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF02 DB103 | 200 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF04 DB104 | 400 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF06 DB105 | 600 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF08 DB106 | 800 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF10 DB107 | 1000 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF005S DB101S | 50 | 1.0 | 50 | 10 | 1.0 | 1.1 | DB-S |
| DF01S DB102S | 100 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF02S DB103S | 200 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF04S DB104S | 400 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF06S DB105S | 600 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF08S DB106S | 800 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF10S DB107S | 1000 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DB151 | 50 | 1.5 | 50 | 10 | 1.5 | 1.1 | DB-1 |
| DB152 | 100 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB153 | 200 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB154 | 400 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB155 | 600 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB156 | 800 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB157 | 1000 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB151S | 50 | 1.5 | 50 | 10 | 1.5 | 1.1 | DB-S |
| DB152S | 100 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB153S | 200 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB154S | 400 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB155S | 600 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB156S | 800 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB157S | 1000 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| RB151 | 50 | 1.5 | 40 | 10 | 1.5 | 1.1 | WOB |
| RB152 | 100 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB153 | 200 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB154 | 400 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB155 | 600 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB156 | 800 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB157 | 1000 | 1.5 | 40 | 10 | 1.5 | 1.1 |
