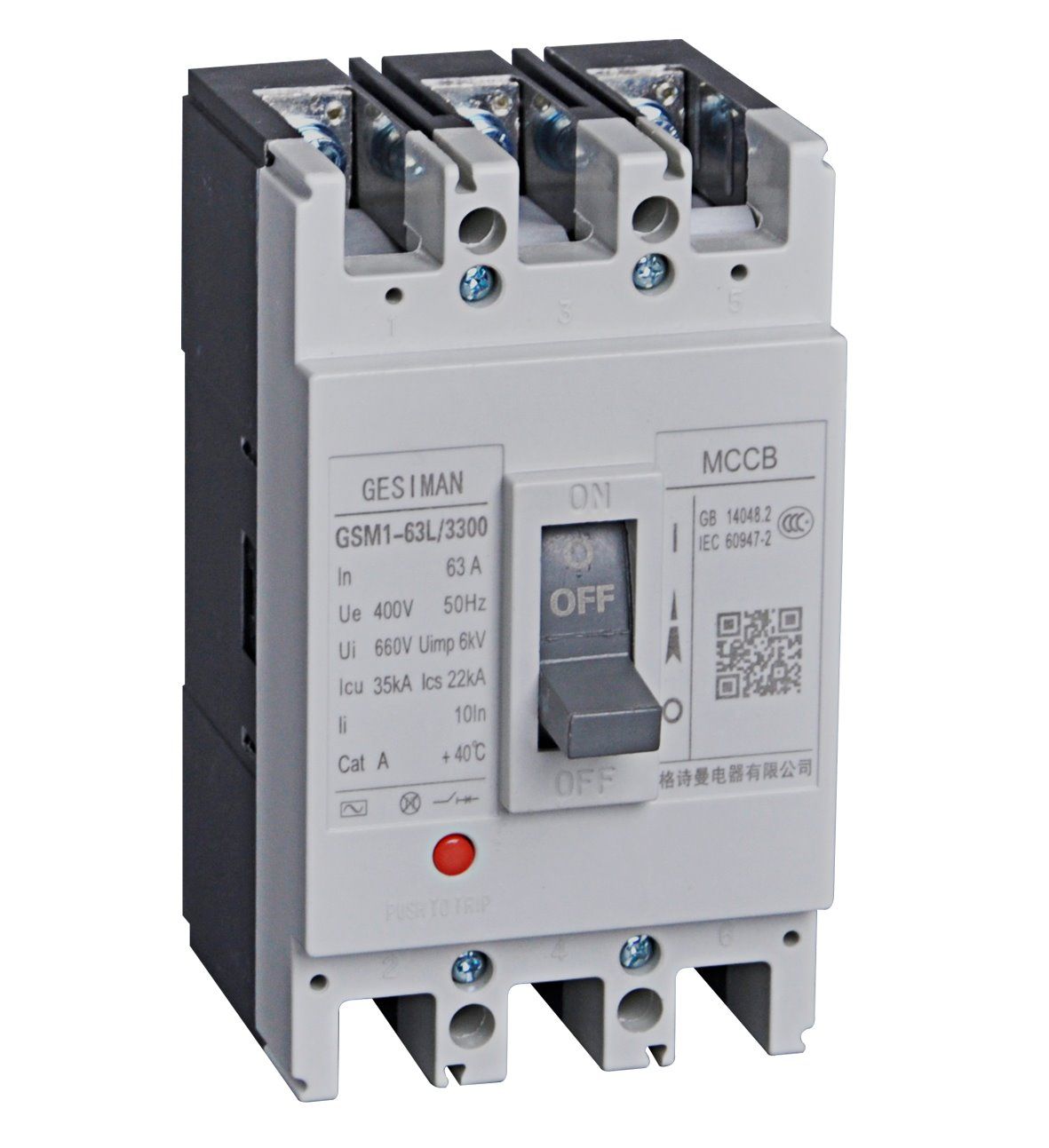

MCCB Moulded Case Circuit Breaker MCCB-63

Name: MCCB Moulded Case Circuit Breaker MCCB-63
Brand: all-electronics-online.com
SKU: 794770275
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	US $ 20/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description
GSM1 800A 50KA 3 pole mccb moulded case circuit breaker
moulded case circuit breakers are one of the new breakers designed and developed by our company by comprehensively adopting advanced technology.
Rated insulation voltage of this series of breakers are up to 800V. It applies to distribution network circuit of AC 50Hz or 60Hz with rated working voltage up to 690V and rated working current up to 800A. It is used to protect circuits and powersupply equipment form damage of overload, under-voltage, short-circuit etc, can also be used for infrequent start of motor and provide overload, short circuit and under-voltage protection for the motor.
This breaker features small volume, high breaking capacity, short arc time, an ideal product to use. This breaker can be installed both vertically and horizontally.
GSM1 800A 50KA 3 pole mccb moulded case circuit breaker TECHNICAL PERFORMANCE INDEX

Type	Frame rated current (A)	Rated current (A)	Rated operating voltage (V)	Rated insulation voltage (V)	Rated ultimate short circuit breaking capacity (KA) 400/690V	Rated service short circuit breaking capacity (KA) 400/690V	Number of poles	Flashover distance
GSM1-63L	63	(6), 10, 16, 20, 25, 32, 40, 50, 63	400	500	25	12.5	3	≤50
GSM1-63M	63	(6), 10, 16, 20, 25, 32, 40, 50, 63	400	500	50	25	3,4	≤50
GSM1-100L	100	16, 20, 25, 32, 40, 50, 63, 80, 100	690	800	35/8	17.5/4	3	≤50
GSM1-100M	100				50/10	25/5	3,4
GSM1-100H	100				85/20	42.5/10	3
GSM1-225L	225	100, 125, 160, 180, 200, 225	690	800	35/8	17.5/4	3,4	≤50
GSM1-225M	225				50/10	25/5	3
GSM1-225H	225				85/20	42.5/10	3
GSM1-400L	400	225, 250, 315, 350, 400	690	800	50/10	25/5	3,4	≤100
GSM1-400M	400				65/10	32.5/5	3
GSM1-400H	400				100/20	50/10	3
GSM1-630L	630	400, 500, 630	690	800	50/10	25/5	3,4	≤100
GSM1-630M	630				65/10	32.5/5	3
GSM1-630H	630				100/20	50/10	3
GSM1-800M	800	630, 700, 800	690	800	75	37.5	3	≤100
		630, 700, 800	690	800				≤100

GSM1 800A 50KA 3 pole mccb moulded case circuit breaker PROTECTION CHARACTERISTICS

RELEASE RATED CURRENT(A)	1.05ln(COLD) NO ACTION TIME(H)	1.30ln(HOT) MOVEMENT TIME(H)	ELECTROMAGNETIC TRIPPING DEVICE OPERATING CURRENT(A)
10<=ln<=63	1	1	10ln±20%
63	1	1	10ln±20%
100	2	2	5ln±20% and 10ln±20%

RELEASE RATED CURRENT(A)	1.0ln(COLD) DOES NOT MOVE AS TIME(H)	1.20ln (HOT)DYNAMIC AS TIME(H)	1.50ln(HOT) DYNAMIC AS TIME(H)	7.2ln(COLD) DYNAMIC AS TIME(H)	ELECTROMAGNETIC TRIPPING DEVICE OPERATING CURRENT(A)
10≤ln≤63	2	2	4min	4S	10ln±20%
63≤ln≤100	2	2	8min	6S	10ln±20%

GSM1 800A 50KA 3 pole mccb moulded case circuit breaker

Prod Model:	MCCB-63
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Yueqing Geshiman Electric, which specializes in manufacturing series of circuit breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, Mould case circuit breakers Push botton switches, isolator etc...Our products apply into high end of market in the world. The qualification of products reaches a MID and high level in China markets, and the quality is accepted by high end of market.

Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

We have more than 500 workers for production 8 engineers for quality control and technics. All of our product line are according the CE certficates and test reports.

For Business. We have experience to serve the famous brand in OEM. Our company is not very big but with the quality goods forever. We only make the quality parts. Welcome all of our customers or new friends feel free to visit our company.
