| Prod Model: |
SM1-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Working Voltage: |
690V |
| Certificate: |
CE-LVD, RoHS |
| Poles Number: |
3p, 4p |
| Frequency: |
AC 50Hz (60Hz) |
| Rated Insulating Voltage: |
950V |
| All Standard: |
Iec947-2 |
| Type: |
Circuit Breaker |
| Function: |
Circuit-Breaker Failure Protection |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |
Product Description

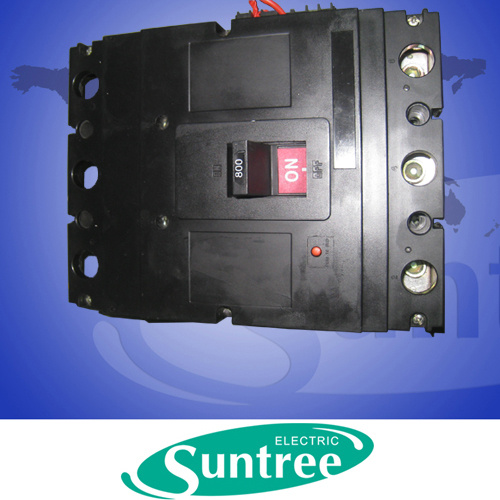

SM1 Circuit Breaker:
Detailed Product Description
SCM1 Circuit breaker 100A-1600A
1. The best quality
2. The price that has competitiveness
3. CE ISO9000 authenticatio
SM1 100A-1600A, (CM1-3P/4P)
Product Description
1) SM1 series molded case circuit breaker is a new type of breaker which adopts the international advanced design, and manufacturing technology
2) Its contact and arc suppression system adopt revolving double cot-off point design so as to improve breaking capability
3) Its tripper has thermo magnetic trip and electric trip
4) Rated insulating voltage: 950V
5) Frequency: AC 50Hz (60Hz)
6) Rated working voltage: 690V or below
7) Rated working current: 12.5 to 1250A
8) Used in distributing energy of electricity, infrequent making and breaking in the normal conditions and protecting when circuit and installation are overload, short circuit and lacking voltage.
|
Type |
InA |
Poles |
power consumption |
Ics/Cos Φ |
Icu/Cos Φ |
Arcing distance mm |
|
Fixed |
Draw-out |
400V |
690V |
400V |
690V |
SM1-63L
SM1-63M SM1-63 |
6, 10, 16, 20, 32, 40, 50, 63 |
3 |
20 |
25 |
18/0.30 |
_ |
25/0.25 |
_ |
50 |
|
25 |
30 |
30/0.25 |
_ |
50/0.25 |
_ |
|
4 |
33 |
40 |
_ |
SM1-100L
SM1-100M
SM1-100H
SM1-100 |
10, 16, 20, 32, 40, 50, 63, 80, 100 |
3 |
35 |
40 |
26/0.25 |
_ |
35/0.25 |
_ |
|
40 |
50 |
30/0.25 |
_ |
50/0.25 |
_ |
|
43/0.25 |
10/0.5 |
85/0.20 |
20/0.3 |
|
2 |
26 |
33 |
30/0.25 |
_ |
50/0.25 |
_ |
|
4 |
53 |
66 |
SM1-225L
SM1-225M
SM1-225H
SM1-225 |
100, 125, 160, 180, 200, 225 |
3 |
55 |
65 |
26/0.25 |
_ |
35/0.25 |
_ |
|
60 |
75 |
50/0.25 |
_ |
|
|
|
10/0.5 |
85/0.20 |
20/0.3 |
|
|
2 |
40 |
50 |
30/0.25 |
_ |
50/0.25 |
_ |
|
4 |
80 |
100 |
SM1-400C
SM1-400L
SM1-400M
SM1-400H
SM1-400 |
225, 250, 315, 350, 400 |
3 |
80 |
100 |
20/0.25 |
_ |
35/0.25 |
_ |
100 |
|
30/0.25 |
_ |
50/0.25 |
10/0.5 |
|
90 |
110 |
40/0.25 |
_ |
_ |
_ |
|
50/0.20 |
10/0.5 |
100/0.20 |
20/0.3 |
|
4 |
120 |
150 |
30/0.25 |
_ |
_ |
_ |
SM1-630L
SM1-630M
SM1-630H
SM1-630 |
400, 500, 630 |
3 |
130 |
180 |
34/0.25 |
_ |
45/0.25 |
_ |
|
150 |
200 |
42/0.25 |
_ |
65/0.25 |
_ |
|
65/0.25 |
10/0.5 |
100/0.20 |
20/0.3 |
|
4 |
200 |
267 |
42/0.25 |
5/0.7 |
65/0.25 |
10/0.5 |
SM1-800C
SM1-800L SM1-800M
SM1-800H -800 |
630, 700, 800 |
3 |
125 |
170 |
20/0.25 |
_ |
35/0.25 |
_ |
|
30/0.25 |
_ |
50/0.25 |
_ |
|
135 |
190 |
40/0.25 |
_ |
70/0.20 |
_ |
|
50/0.25 |
10/0.5 |
100/0.20 |
20/0.3 |
|
4 |
180 |
250 |
30/0.25 |
_ |
50/0.25 |
_ |
|
SM1-1250/1600 |
80, 010, 001, 250 |
3 |
240 |
300 |
50/0.25 |
35/0.3 |
85/0.25 |
45/0.25 |
