Mechanical Adjustable Stego Cabinet Thermostat Kto 011

Name: Mechanical Adjustable Stego Cabinet Thermostat Kto 011
Brand: all-electronics-online.com
SKU: 782082365
Availability: InStock
Rating: 4.9 (51 reviews)

Price:	US $ 1.9-2.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

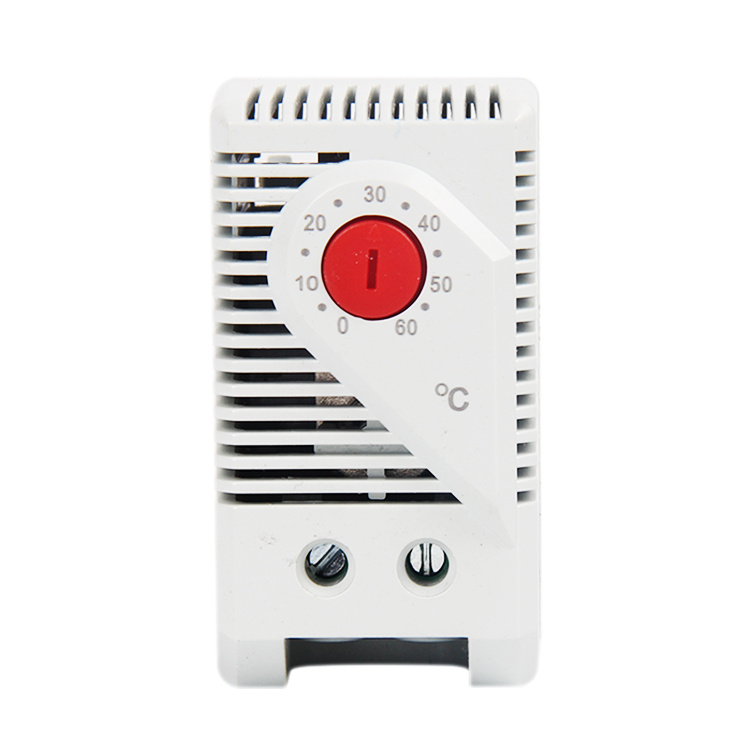

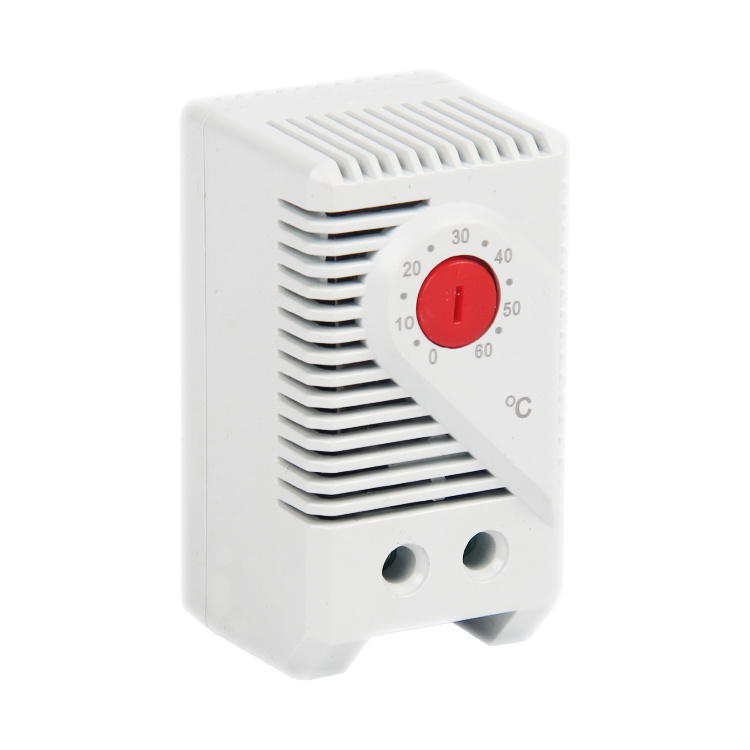

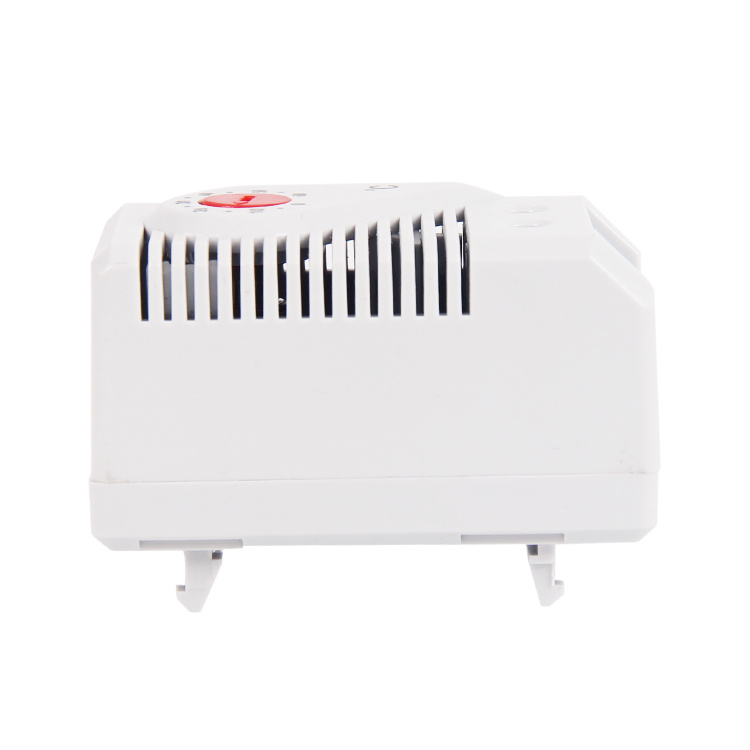

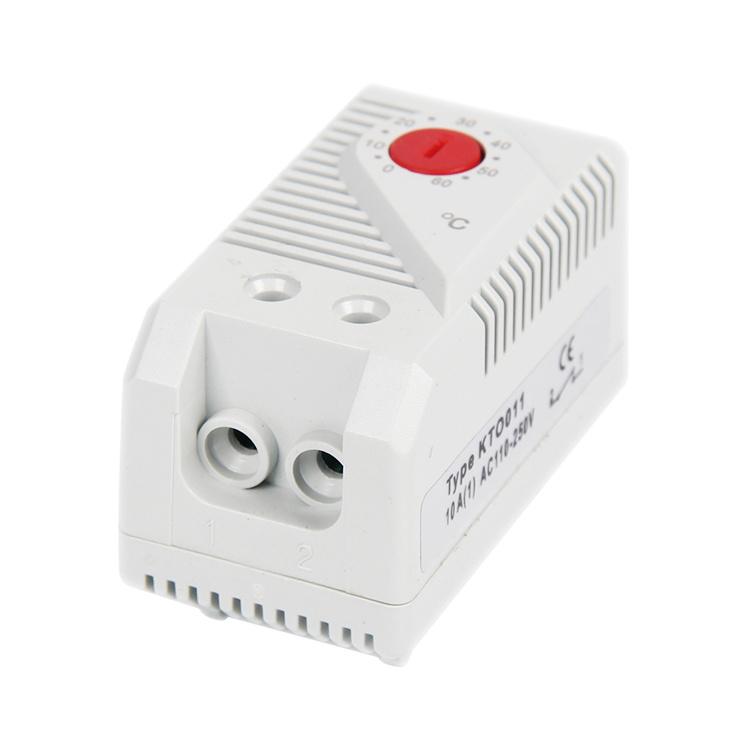

Mechanical Adjustable Stego Cabinet Thermostat KTO 011

Industrial Thermostat Temperature Controller
1.Large temperature setting range
2.Small size
3.Simple to mount
4.High switching performance
5.CE , LVD approved
6.2 years warranty

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Service life	> 100,000 cycles
Max. Switching capacity	250VAC, 10 (2) A 120VAC, 15 (2) A DC 30W
Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)
Casing	plastic according to UL94 V-0, light grey
Dimensions Weight Protection type	60 x 33 x 43mm approx. 40g IP20
Operating / Storage	-45 to +80°C (-49 to +176°F) max. 90 % RH (non-condensing)
Fitting position	variable

Order No.

Setting range	Art. No. Contact Breaker (NC)	Art. No. Contact Maker (NO)	Approvais
0 ~ +60°C	01140.0-00	01141.0-00	CE
-10 ~ +50°C	01142.0-00	01143.0-00	CE
+20 ~ +80°C	01159.0-00	01158.0-00	CE
+32 ~ +140°C	01140.9-00	01141.9-00	CE
+14 ~ +122°F	01142.9-00	01143.9-00	CE
0 ~ +60°C	01146.9-00	01147.9-00	CE

Details Show

Releated Products

Certificates & Factory

Contact Information

DESON ELECTRIC GROUP CO.,LTD.
Joe Yang / Sales Mamager
XIRENDANG Industrial Zone , YueQing , WenZhou , ZheJiang , P.R . Of China 325604
Phone : +86 577 61609710 Fax : +86 577 61713067
Mobile : +86 13868793667 Website : www.desongroup.com

Prod Model:	KTO 011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensor Element:	Thermostaticbimetal
Contactor:	Normally Closed
Range:	-10-50 / 0-60
Mounting:	35mm DIN Rail
Size:	60X33X43mm
Weight:	40g
Control Type:	Mechanical
Material:	Plastic
Operating Principle:	Thermostatic
Cooling Purpose:	Heating
