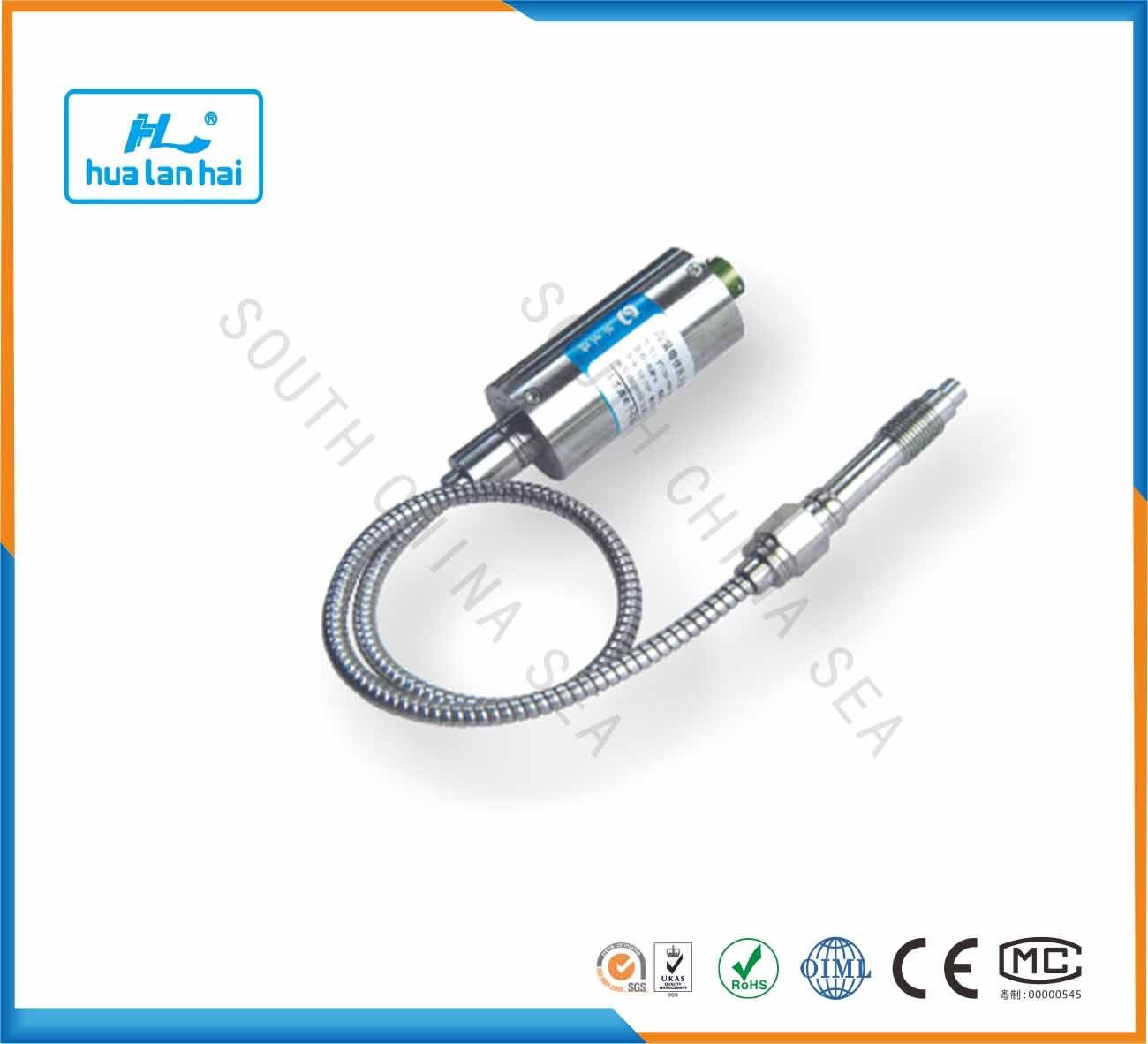

Melt Pressure Transmitter PT125/125b

ABSTRACT:

Insulated by rigid or flex tube. Applying to pressure measuring and controlling of rubber, chemical fiber, petro-chemical and other special occasions.

PARAMETERS:
1) Capacity Range: 0-10~0-200MPa
2) Comprehensive Precision: 0.3%FS, 0.5%FS, 1.0%FS
3) Output Signal: 2mV/V; 3mV/V; 3.3mV/V;
                               4~20mA; 0~5V; 1~5V; 0~10V
4) Use Temp Range: 0~200° C-400° C
5) Environment Temp: -10 ° C~80 ° C
6) Excitation Voltage: Transducer =10V (6~12)V;
                                       Transmitter=24V (9~36)V;
7) Insulation Resistance: ≥ 2000MΩ , 100VDC
8) Electric Connection: 6 gilded pin / 5 pin
9) Thread connection: 1/2-20UNF or Others


EXAMPLE:   PT111 - 35M - 01 - C - G - 6 / 18 - J -  W
PT1	11	35	M	01	C	G	6	18	J	W
11	Models
35	Capacity(Noted by number)
M	Pressure Mearsure ( P=Psi, B=Bar, M=MPa )
01	Output Signal (01=2mV/V, 02=2.5mV/V, 03=3.3mV/V, 04=4~20mA, 05=1~5V, 06=0~5V, 07=0~10V )
C	Precision  ( %FS ) (B=0.2, C=0.3,D=0.5, E=1.0 )
G	Thread Connection (F=M12×1,G=M14×1.5,H=1/2-20, L=M18×1.5,M=M22×1.5, N=M28×1.5, P=G3/4, Q=G3/8 )
6	Length of Rigid Stem( 2 =2.36", 60mm,6=6", 152mm)
18	Length of Flexible Tube(18=18", 460mm,blank= none)
J	Thermcouple option (J, K, E, PT100 )
W	Electric connection(W=5pin, L=6pin )
