Membrane Pressure Sensor

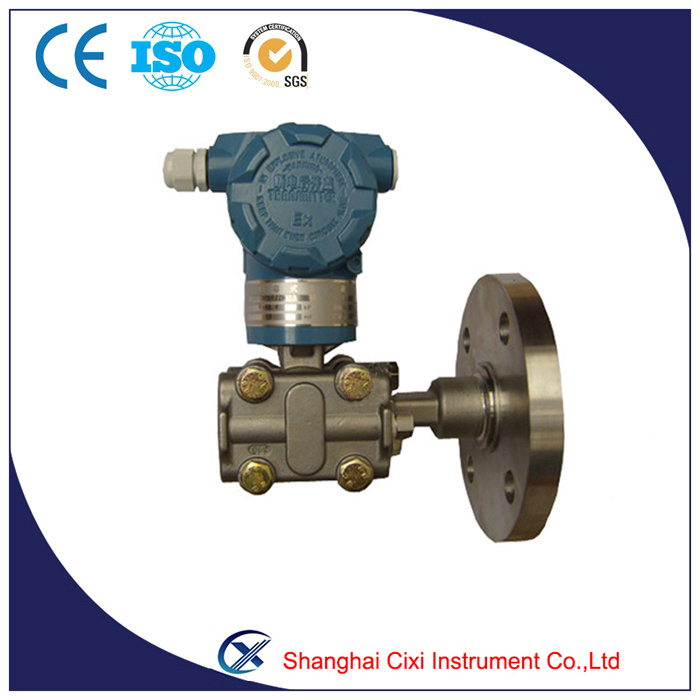

CX-PT-3351 membrane pressure transmitter

Remote differential/level transmitter is used for prevent the medium in the pipe direct into the transmitter. The capillary (filled with fluid) is connected between pressure sensing diaphragm and transmitter. It is used for measuring liquid, gas or steam's level/flow or pressure, then change it as 4-20mA signal output.

CX-PT-3351 remote differential pressure transmitter can use together with Hart handhold device.
CX-PT-3351 remote flange type differential pressure/level transmitter can used as the following condition:
    1.tested medium is corrosive ;
2.need to isolate high temperature tested medium and transmitter;
3.tested medium has solid seston or high viscosity medium;
4.tested medium leads by lead pressure pipe and easily solidify or crystallize;
5.replace medium need to clean test convertor carefully;
6.test convertor need to keep hygiene. Use for: corrosive or viscosity liquid.

Selection

CX-PT-3351	remote differential pressure/ level transmitter
	code	range KPa
	3	0-1.3~7.5
	4	0-6.2~37.4
	5	0-31.1~186.8
	6	0-117~690
	7	0-345~2068
	8	0-117KPa~1MPa
	9	0-0.4~2.5MPa
	0	0-1.6~10MPa
		code	output
		E	4-20mADC
		S	intelligent
			code	flange material		flange material
			22	316SST		316SST
				code	additional function
				S1	one remote device
				S2	two remote device
					code	option
					M1	0-100% linear indicator meter
					M3	3digit and a half LCD display meter
					M4	intelligent meter display
					B1	pipeline installation bend bracket
					B2	board installation bend bracket
					B3	pipeline installation flat bracket
					d	explosion suppression type dIIBT4
					i	Intrinsically safe type iaIICT6

Attn:1.filled 200 series silicone oil, operating temperature -40~+149ºC;filled high-temp proof silicone oil, operating temperature -20~+315ºC.
