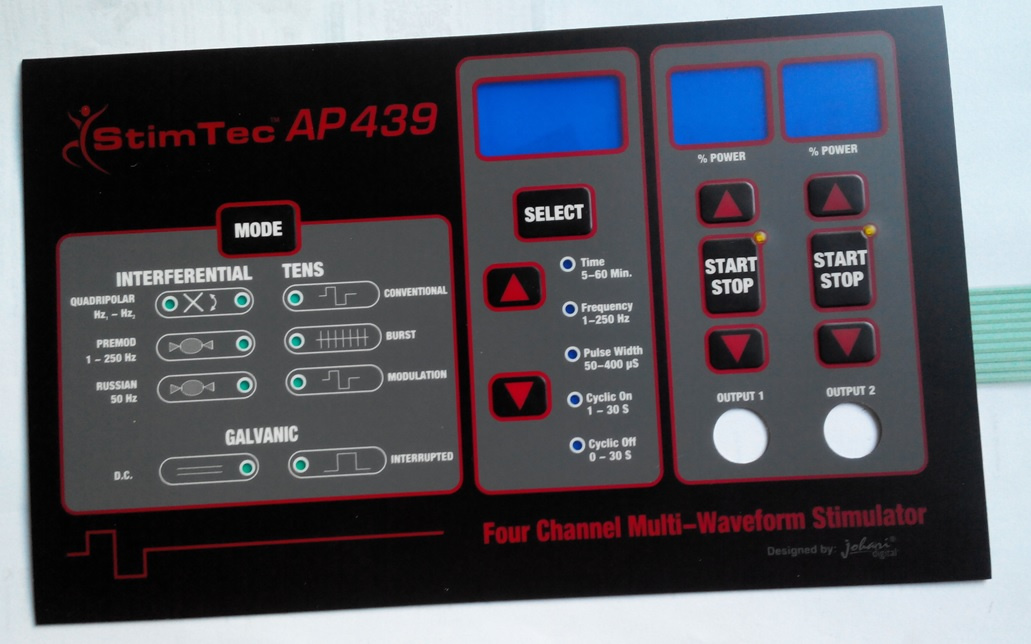

Metal Domes Tactile LED Indicator Medical Equipment Membrane Switch | MIC0232
Certificate:RoHS/ISO 9001/SGS/etc
Custom Made:OEM/customize
Overlay Material: Autotex PET F150
Back Adhesive: 3M467MP
Operation Temperature:-40ºC~70ºC
Insulation Resistance:<100MΩ,250V DC
Contact resistance:<1Ω /cm
operating voltage:≤ 50VDC
working current:25- 100mA,0-30V DC
reliability/service life:>1 million times
Operating humidity:when40°C,<98%RH
Bounce time:≤ 5ms
substrate voltage:2000V DC
Tail flexiblility:any angle within 180 degree
Switch travel:Flat Type 0.05-0.3mm
Applications:
Our membrane switches are widely used in :
1.Medical and Healthcare Equipment;
2.Telecommunications equipments and machines;
3.Inspection instruments and equipments;
4.Household appliances;
5.Security equipments;
6.Consumer electronics;
7.Industrial controls;
8.Access control systems.....
> Our Services and Advantages:
1) Artwork design and making;
2) Has our own finally assembly factory which can assemble the complicated keypads with plastic, metal, PCB, FPC etc.
3) Design improvement suggestion against the customer's original design;
4) Experienced workers and engineers;
5) ISO certified factory;
6) Imported material, like the Autotype PET, 3M adhesive, Nicomatic connector etc.
> Membrane Keypad Structure
1) 4 layers structure: Graphic overlay + Spacer + Circuit(can be PET circuit or FPC circuit) + Back Adhesive
2) 6 layers structure: Graphic overlay + Spacer: Dome Retainer + Spacer + Circuit(can be PET circuit or FPC circuit) + Back Adhesive;
3) Other Structure
3.1) Overlay + Rubber Adhesive + Rubber Keypad + Rubber Adhesive + Retainer + Spacer + Circuit + Back Adhesive;
3.2) Overlay + Spacer + Retainer + PCB Circuit;
And also there are many other kinds of structures for the interface keypads structure. It based on customer's real needs and we can design the suitable and economical structure for our customer's final application.
Technical Parameters:
| Item | Description | Technical capabilities |
| 1 | Max. Size: | 1200mm x 1000mm |
| 2 | Overlay Material: | PET: Autotype (Autotex F150,F200,F280, V150,V200,V280,
Autoflex EBG130, EBG180, EBG250,EBA130, EBA180, EBA250)
Autotex : XEV150, XEF200;
Autostat CT3,CT4,CT5,CT7
DuPont etc.
PC: GE LEXAN--8010 8B35 8B35F HP92S HP40 FR700 FR60 |
| 3 | Spacer: | 3M Adhesive, NITTO, TESA, SONY,SEKISUI, Domestic Adhesive |
| 4 | Back Adhesive: | 3M(Mainly), Others(Little) |
| 5 | Silver Paste: | CHANGSUNG: CSP-3163, CSP-3352,CSP-5150;
ACHESON:ED 725A(6S-61),ED 427SS,ED 479SS,ED 976SS HV;
FUJIKURA and OTTI |
| 6 | Oil Ink: | SEIKO, JUJO, DUBUIT, PROELL,NORCOTE UV |
| 7 | Carbon Paste: | FUJIKURA, ACHESON ED 581SS, OTTI |
| 8 | 6 Layers Metal dome Type Membrane Switch Structure | Overlay + Spacer + Dome Retainer + Spacer + Circuit Layer+ Back adhesive |
| 9 | 4 Layers Polydome Type Membrane Switch Structure | Overlay + Spacer + Circuit + Back adhesive |
| 10 | Contact Resistance | 0.5-10Ω |
| 11 | Insulation Resistance | ≥10MΩ (100VDC) |
| 12 | Base Material Voltage Durable | 2000V DC |
| 13 | Bounce Time | ≤5ms |
| 14 | Working Current | ≤100mA |
| 15 | Working Voltage | ≤50VDC |
| 16 | Life | ≥1,000,000 times |
| 17 | Key Travel | Flat type: 0.05mm-0.5mm, Tactile Type: 0.1-1.5mm |
| 18 | Working Temperature | -40ºC-+80ºC |
| 19 | Actuation Force | 20-550g |
| 20 | Storage Condition | Temperature: -40ºC~+85ºC ,Humidity: ≤98% RH |
| 21 | PET Circuit Tail Flexible Feature | 180°to any angle
|
