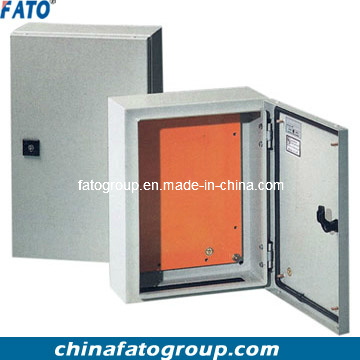

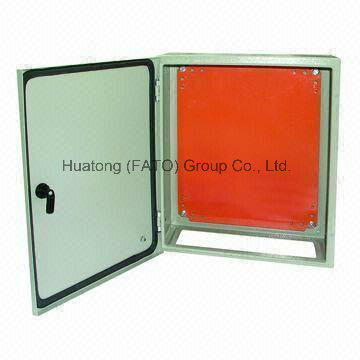

Metal Power Distribution Board IP65 (ST150)

Name: Metal Power Distribution Board IP65 (ST150)
Brand: all-electronics-online.com
SKU: 606250564
Availability: InStock
Rating: 4.3 (91 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Product Description:

1. Material: Sheet steel
2. Body and door manufactured in 1.5mm sheet steel.
3. Flat mounting plate in 2.5mm sheet steel
4. Paint finish: Both externally and internally
5. Protected with epoxy polyester coating
6. Textured finish RAL7032 or RAL7035
7. Mounting plate: Powder coated similar to RAL2004 or galvanized
8. IP rate: IP65
9. Supply include: Enclosure door, mounting plate, gland plate sealing gasket

Height (mm)	Width(mm)	Depth(mm)	Model No.
250	200	150	FT-2520/150
300	250	150	FT-3025/150
300	250	200	FT-3025/200
300	300	150	FT-33/150
300	300	200	FT-33/200
300	400	200	FT-34/200
400	300	150	FT-43/150
400	300	200	FT-43/200
400	400	200	FT-44/200
400	600	250	FT-46/250
400	600	300	FT-46/300
500	400	150	FT-54/150
500	400	200	FT-54/200
500	400	250	FT-54/250
500	500	250	FT-55/250
600	400	150	FT-64/150
600	400	200	FT-64/200
600	400	250	FT-64/250
600	500	150	FT-65/150
600	500	200	FT-65/200
600	500	250	FT-65/250
600	600	250	FT-66/250
600	600	300	FT-66/300
600	800	300	FT-68/300
700	500	200	FT-75/200
700	500	250	FT-75/250
800	600	200	FT-86/200
800	600	250	FT-86/250
800	600	300	FT-86/300
800	600	400	FT-86/400
800	800	200	FT-88/200
800	800	300	FT-88/300
800	1000	300	FT-810/300
1000	600	250	FT-106/250
1000	600	300	FT-106/300
1000	800	250	FT-108/250
1000	800	300	FT-108/300
1000	800	400	FT-108/400
1000	1000	300	FT-1010/300
1000	1200	300	FT-1012/300
1200	800	300	FT-128/300
1200	800	400	FT-128/400
1200	1000	300	FT-1210/300

Why do you choose us?

FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
FATO group has more than 2800 staff, more than 18000 M² production area.
Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..

Prod Model:	ST150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Power
Structure:	Open Frame
Shell Protection Grade:	IP65
Brand:	Fato

Founded in 1987, Huatong (FATO) Group Co., Ltd. is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China. The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 2, 000 employees. During the past 18 years, the Group has invested heavily in both research and development and employee training programs, resulting in a wide range of products that meet the most rigorous requirements of international organizations such as CCC, CE, UL, BS, and ISO14001 etc. In 2001 Vouching Technical Inspection Ltd. As an ISO9001 recognized us: 2000 certified enterprise. In 2004 we were recognized as ISO14001 certified enterprise.

Currently, we manufacture and export more than 80 varieties of products, with over 1000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology" can help us survive and succeed in today's highly competitive market. Hence, we guarantee high quality of all our products, because they all have undergone strict quality control and meet high standards.
