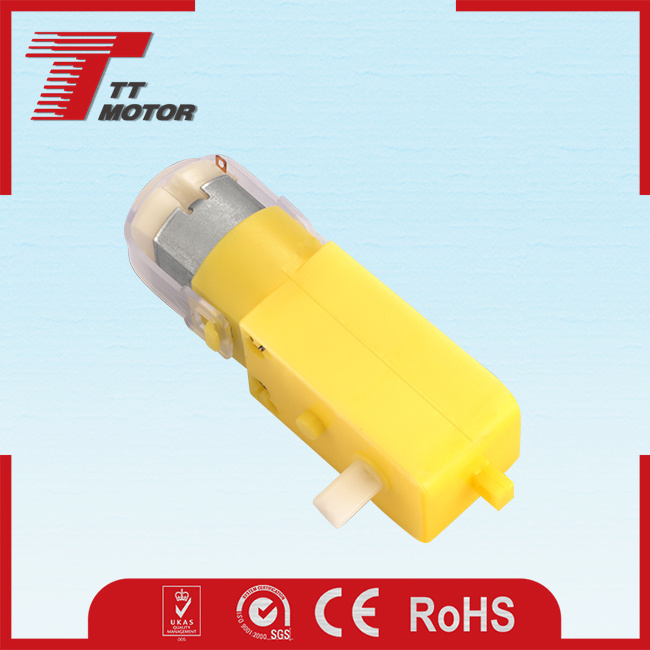

Micro 3V DC high torque gear motor for robotic toys

Prod Model:	DC Gear Motor TGP01S-A130
Product Name:	DC Gear Motor TGP01S-A130
Gear Type:	spur teeth
Output Shaft:	Plastic
Main Gear:	plastic
Basilar Plate:	plastic
Bearing At Output:	D-shape
Axial Play:	0.05-0.1mm
Reduction Ratio:	48-288
Life Expectency:	500 hours
Shaft Diameter:	5.4mm
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Function:	Totally Enclosed
Type:	TGPP Gear Motor
Certification:	RoHS CE
Brand:	TT Motor

Product Description

Micro 3V dc high torque gear motor for robotic toys

Main Features
1.OEM/ODM TGP plastic gears gearbox plus A130 permanet magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.Suitable to small diameter, low noise and big torque application
4.Reduction ratio:48,120,180,220,288



Model: Motor TGP01S-A130
TFE-130RA-12215	Rated voltage: 6VDC	Stall torque:20g.cm
	No-load speed:11500r/min	Stall current:0.85A
	No-load current:120mA	/
TFE-130RA-14175	Rated voltage: 3VDC	Stall torque:13g.cm
	No-load current:8000r/min	Stall current:0.70A
	No-load current:120mA	/
TFE-130RA-18100	Rated voltage: 3VDC	Stall torque:20g.cm
	No-load speed:11500r/min	Stall current:1.80A
	No-load current:250mA	/

Gear motor technical data : TGP01S-A130-12215-XXX

Reduction ratio	48	120	180	220	288
Length mm
No-load speed rpm	230	90	60	50	38
Rated speed rpm
Rated torque kg.cm
Max.momentary tolerance torque kg.cm	0.7	1.4	2.0	2.2	2.8

Gear motor technical data : TGP01S-A130-14175-XXX

Reduction ratio	48	120	180	220	288
Length mm
No-load speed rpm	150	60	40	33	25
Rated speed rpm
Rated torque kg.cm
Max.momentary tolerance torque kg.cm	0.5	0.9	1.2	1.4	1.8

Gear motor technical data : TGP01S-A130-18100-XXX

Reduction ratio	48	120	180	220	288
Length mm
No-load speed rpm	230	90	60	50	38
Rated speed rpm
Rated torque kg.cm
Max.momentary tolerance torque kg.cm	0.7	1.4	2.0	2.2	2.8

Product Application

Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.
