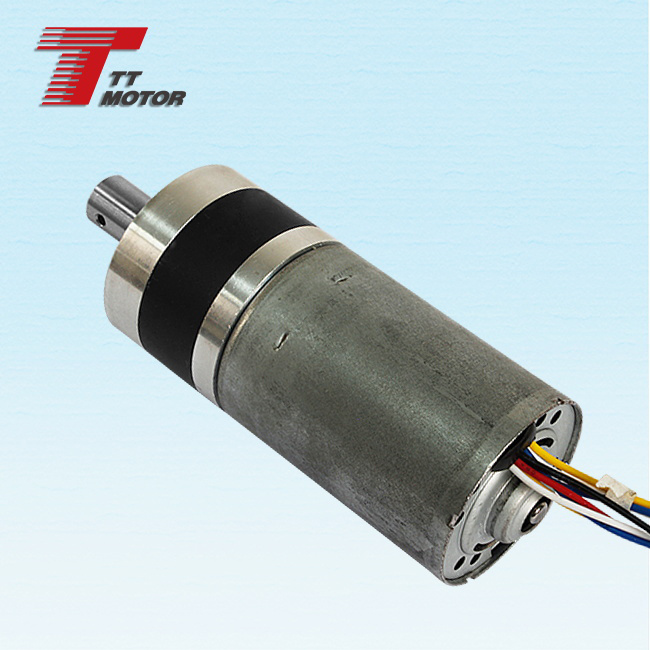

Micro electric dc 24V brushless gear motor
Main Features1.OEM/ODM 28mm gearbox plus 28mm brushless motor
2.Small size dc gear motor with low speed and big torque
3.28mm gear motor provide 2.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Dc Gear motors can match encoder,11ppr
6.Reduction ratio:4,14,19,27,51,71,100,139,189,264,369,516,720
| Model:Motor GMP28-TEC2847 |
TEC2847-0630 | Rated voltage:6V DC | Rated speed:2000r/min | Output power:3.2W |
| No-load speed:3000r/min | Rated torque:110g.cm | Stall torque:470g/cm |
| No-load current:160mA | Rated current:620mA | Stall current:3.2A |
TEC2847-1240 | Rated voltage:12V DC | Rated speed:2700r/min | Output power:2.9W |
| No-load speed:4000r/min | Rated torque:140g.cm | Stall torque:580g/cm |
| No-load current:120mA | Rated current:580mA | Stall current:2.9A |
TEC2847-2465 | Rated voltage:24V DC | Rated speed:4800r/min | Output power:3.0W |
| No-load speed:6500r/min | Rated torque:180g.cm | Stall torque:720g/cm |
| No-load current:180mA | Rated current:720mA | Stall current:3.0A |
Gear motor technical data : GMP28-TEC2847-0630-XXX| Reduction ratio | 4 | 19 | 27 | 51 | 100 | 189 | 264 | 369 | 516 | 720 |

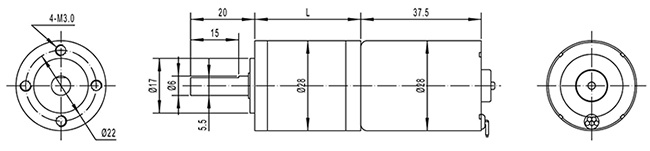

| Length mm | 28.5 | 36 | 36 | 43 | 43 | 50 | 50 | 50 | 50 | 50 |
| No-load speed rpm | 700 | 150 | 105 | 55 | 28 | 16 | 11 | 8 | 6 | 4 |
| Rated speed rpm | 550 | 115 | 80 | 43 | 22 | 12 | 8 | 6 | 4 | 3 |
| Rated torque kg.cm | 0.26 | 1.1 | 1.5 | 2.4 | 4.8 | 8 | 12 | 15 | 20 | 20 |
| Max.momentary tolerance torque kg.cm | 1.0 | 4.0 | 5.7 | 9.2 | 18 | 30 | 30 | 30 | 30 | 30 |
Gear motor technical data : GMP28-TEC2847-1240-XXX| Reduction ratio | 4 | 19 | 27 | 51 | 100 | 189 | 264 | 369 | 516 | 720 |
| Length mm | 28.5 | 36 | 36 | 43 | 43 | 50 | 50 | 50 | 50 | 50 |
| No-load speed rpm | 700 | 200 | 145 | 75 | 38 | 20 | 15 | 11 | 6 | 4 |
| Rated speed rpm | 550 | 140 | 100 | 53 | 27 | 14 | 10 | 8 | 4 | 3 |
| Rated torque kg.cm | 0.26 | 1.9 | 2.6 | 4.3 | 8 | 16 | 20 | 20 | 20 | 20 |
| Max.momentary tolerance torque kg.cm | 1.9 | 7.7 | 11 | 18 | 30 | 30 | 30 | 30 | 30 | 30 |
Gear motor technical data : GMP28-TEC2847-2465-XXX| Reduction ratio | 4 | 19 | 27 | 51 | 100 | 189 | 264 | 369 | 516 | 720 |
| Length mm | 28.5 | 36 | 36 | 43 | 43 | 50 | 50 | 50 | 50 | 50 |
| No-load speed rpm | 1580 | 330 | 230 | 125 | 63 | 33 | 24 | 17 | 12 | 9 |
| Rated speed rpm | 1200 | 250 | 180 | 95 | 48 | 25 | 18 | 14 | 10 | 8 |
| Rated torque kg.cm | 0.6 | 2.4 | 3.4 | 5.5 | 11 | 19 | 20 | 20 | 20 | 20 |
| Max.momentary tolerance torque kg.cm | 1.9 | 7.7 | 11 | 18 | 30 | 30 | 30 | 30 | 30 | 30 |
Product Application| Other Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
| Camera and Optical: | Video, Cameras, Projectors. |

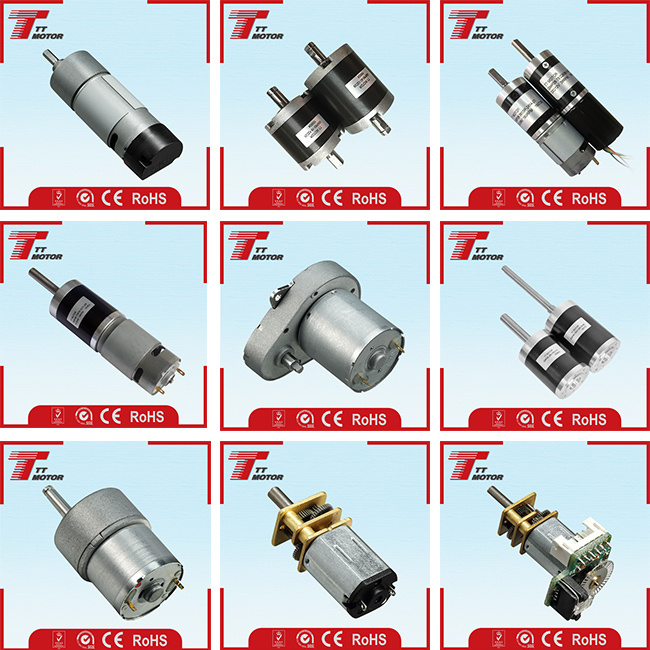

Related ProductsPacking & DeliveryPackaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country

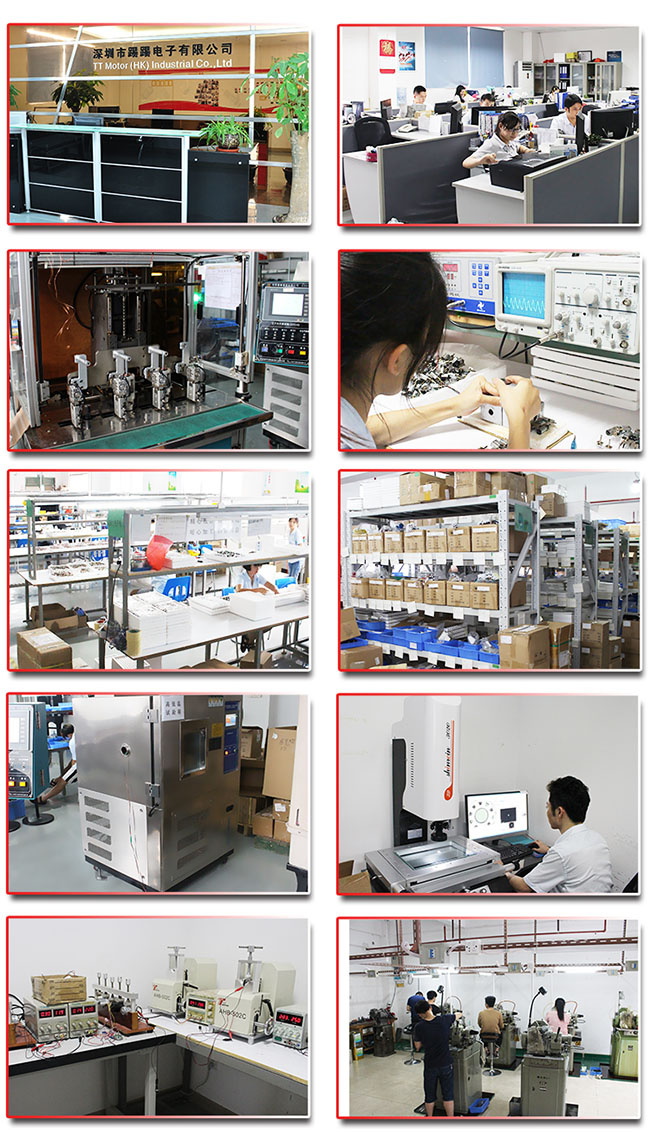

Our Company
