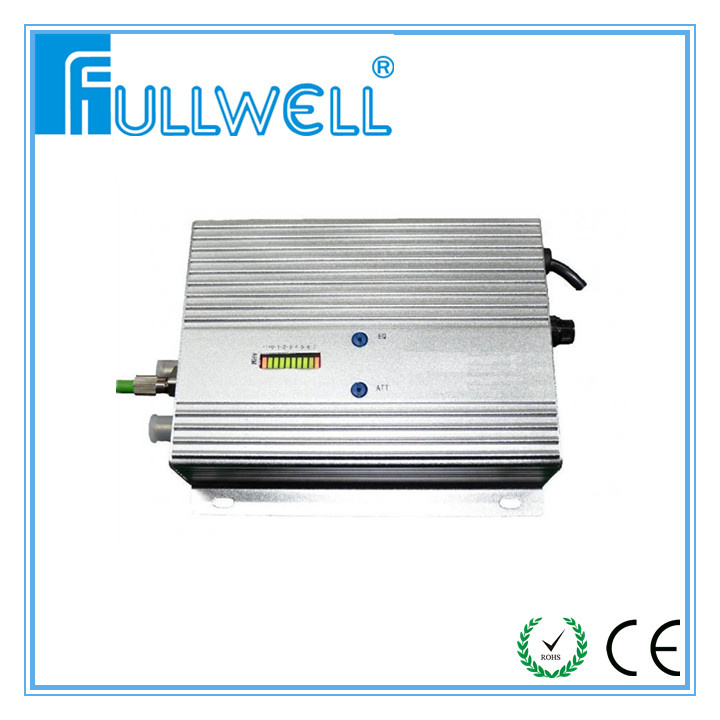

FWR-1090MG two-way Optical Receiver adopts technology which can receive in standard or super low optical power ,amplify in low noise and output in high level with excellent C/N ,CTB, CSO index.The aluminum alloy shell provide excellent shielding and stability,thus having high performance cost ratio.It can be widely applied in HFC Broad - bandwidth Integrated Digital Network and FTTH,which can make the network of simple structure,low cost and high quality.
WR-1090MG is a specified optoelectronic equipment can be used in converting optical signal to RF signal and accomplish the transition of image, sound and data.
Modularity PIN of high quality.
Down going signal output by GaAs module, level adjustable.
With protective circuit both in power supply and in control circuit, of lower power consume design, make the machine of higher stability and reliability.
LED display the input power, of 1dBmsensitivity,convenient for debugging.
Light-control circuit make stable level and C/CTB,C/CSO as the input power varies from +1dBm to -8dBm.
SNMP optional, TCP/IP conforms to GB/T20030-2005.can monitor the working status of the machine such as power voltage,output level and receiving optical power.
Certification: CE
| Optical Parameter |
| Items | Unit | Value |
| Input power range | dBm | -8~+1 |
| Recommended Input power range | dBm | -4~0 |
| Return loss | dB | ≥45 |
| Receiving wavelength | nm | 1100-1600 |
| Optical connector | | FC/APC or SC/APC |
| Fiber type | | Single module |
| Link parameters |
| C/N | dB | ≥51 |
| (C/CSO) | dB | ≥63 |
| (C/CTB) | dB | ≥66 |
| RF parameters |
| Frequency range | MHz | 47-750/860MHz |
| Band flatness | dB | ±0.75(47-750/860MHz) |
| Output level | dBuV | ≥100(optical controled AGC,optical power -8~+1dBm) |
| Output return | dB | ≥16 |
| Output impedience | Ω | 75 |
| General parameters |
| Power voltage | V | AC:160V~220V 50~60Hz |
| Power consumption | W | ≤10 |
| size | mm | 180*145*40 |
| weight | Kg | 0.7 |
FTTB : FWR-1090MG ( AGC)
FTTH : FWR-8610G ( AGC);
FWR-8610W (WDM)
