Micro/Samll/Body/Miniature/Load Cell

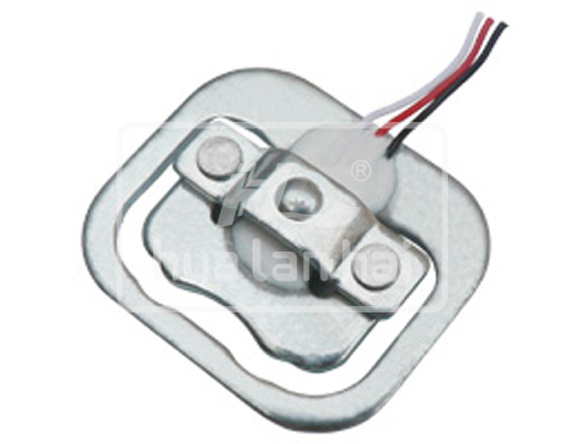

Name: Micro/Samll/Body/Miniature/Load Cell
Brand: all-electronics-online.com
SKU: 773562285
Availability: InStock
Rating: 4.4 (28 reviews)

Price:	US $ 2.2-3/Set
Trade Terms:	FOB,EXW
Min Order:	10/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL928E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Analog Sensor
Dimensions (mm):	28× 24× 6
Cable (mm):	0.8X470
Pattern:	Square Type
Out-Wire:	3 Wires

Product Description

Applications:

Our micro-load cells can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.

Parameters:
1. Rated Load: 50kg
2. Rated Output: 1.0+/-0.15mV/V
3. Zero Balance: +/-0.3mV/V
4. Nonlinearity: +/-0.4%F.S
5. Hysteresis: +/-0.3%F.S
6. Reapitability: +/-0.2%F.S
7. Creep: +/-0.1%F.S(3min)
8. Input Resistance: 1000+/-10 ohm
9. Output Resistance: 1000+/-10 ohm
10. Insulation Resistance: ≥2000Mohm
11. Temperature Effect on Zero: +/-0.3%F.S/10 deg C
12. Temperature Effect on Sensitivity: +/-0.3%F.S/10 deg C
13. Four-Angle Error: +/-0.4%F.S
14. Ultimate Overload: 150%
15. Wires: Energize+(red), Energize-(black),Signal+(green), Signal-(white)
16. Excitation Voltage: 5~10VDC
17. Temperature Range for Using: -10~+40 deg C

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
