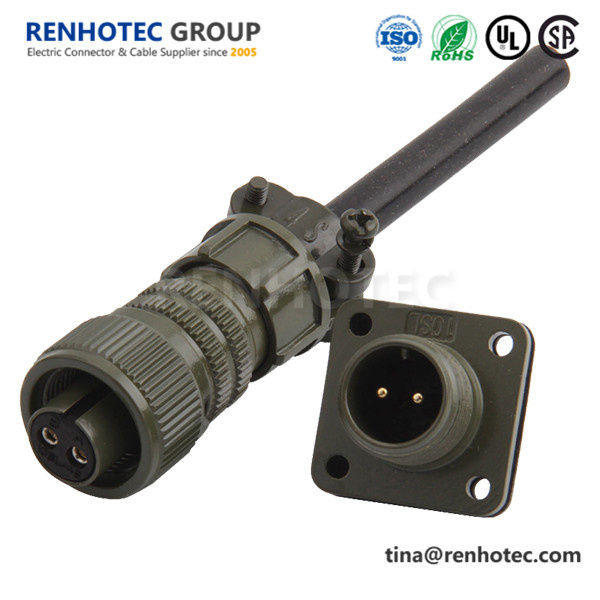

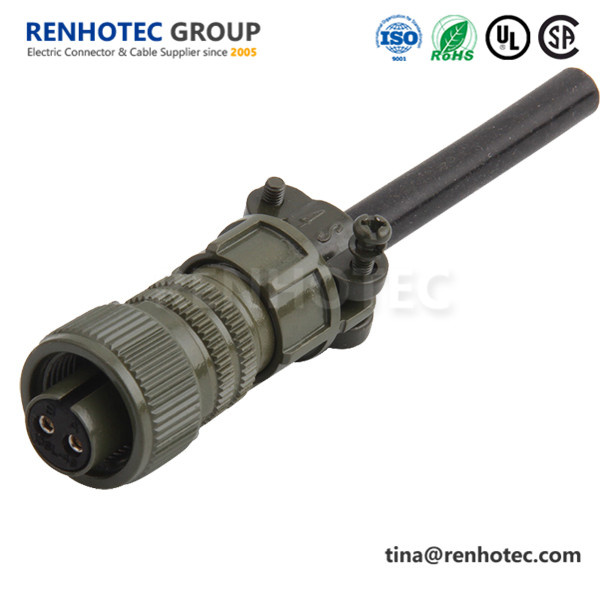

Military Spec 5015 Straight Plug MS3106A10SL-4S 2 pin Circular Power ConnectorRenhotec's MIL-C-5015 series circular connectors equal to the MIL-C-5015 of Amphenol. MIL-C-5015 includes many shell styles such as MS3100, MS3101, MS3102, MS3106, MS3107, MS3108, MS4102, MS4108, MS4106 etc. Welcome to contact us for more selection!
Features & Benefits
· Environmental sealing
· Optional filtering capabilities for receptacle connectors
· Combined power and signal all in one connector
· Over 300 insert patterns allows for easy customization.
· Threaded coupling (fine thread)
· Coaxial and thermocouple contact options
· RoHS plating and contact options available
· Low Smoke and Fluid Resistant inserts available

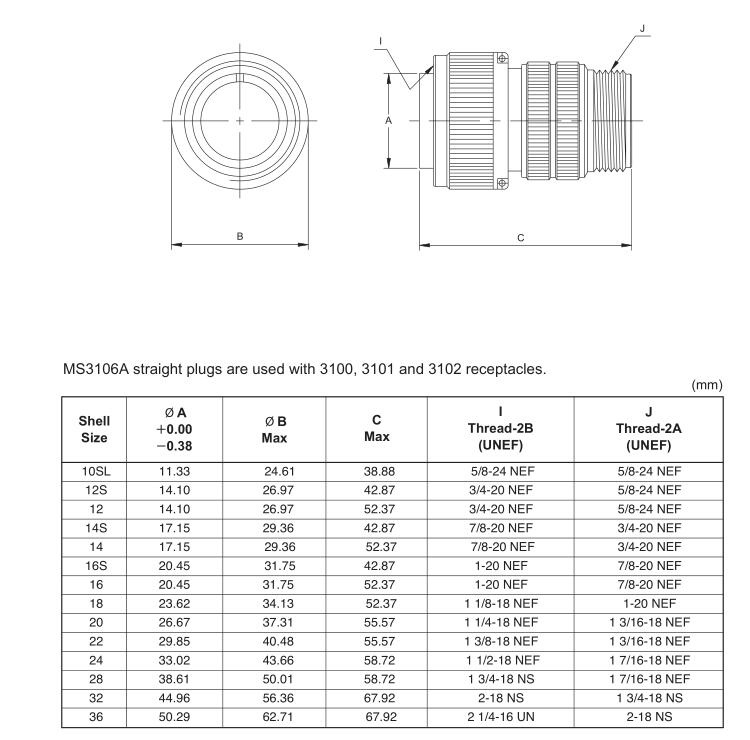

Drawing for your reference:
Specification:
| Ambient Temperature Range | -55 ~ +125°C |
| Frequency | 10~2000 Hz\147 m/s2 |
| Shock | 490 m/s2 |
| Durability | ≥500 times |
| Relative humidity | 95+ -4% at 40 |
| Insulation resistance | ≥5000MΩ |
| Withstanding voltage | 2000V |
Company Information:
RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices. After 10 years of rapid development, it owns two factories at present: Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd. Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team. We have already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.
Package:
Normal packing: 1 pc per polybag ,50pcs per carton.
Private packing and label service are available as per your requirement.
Shipment:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Payment:
We support payment of T/T, Paypal, West Union, etc.
Any question,please contact me freely at any time:
RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.
Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.
Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.
Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.
Our managing principles:Good quality, loyalty and common prosperity.
