| Prod Model: |
LYD-MINI-01 |
| Static Power Consumption: |
<0.5W |
| Connection Mode: |
Common Anode |
| Output: |
1 Circuit |
| Output Current: |
<6A |
| Application: |
LED Products |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Voltage: |
DC5-24V |
Product Description
Basic Info| place of origin: | Shenzhen,China |
| output: | 1 circuit |
| output current: | <6A |
| Static power consumption : | <0.5w |
| Connection mode: | Common anode |
| Supply Voltage: | DC5-24V |
| Controller size: | 40*12*5mm |
| Brand name: | louita |

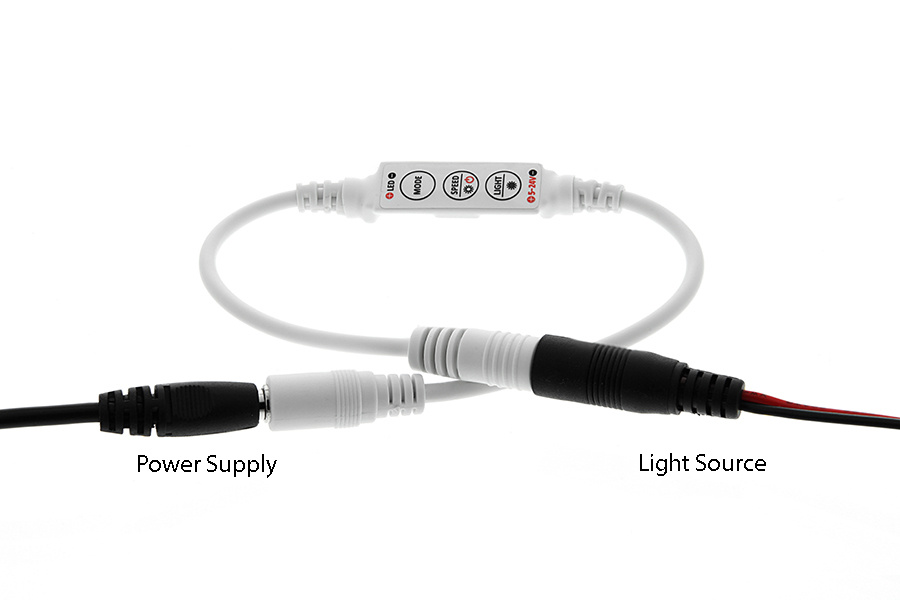

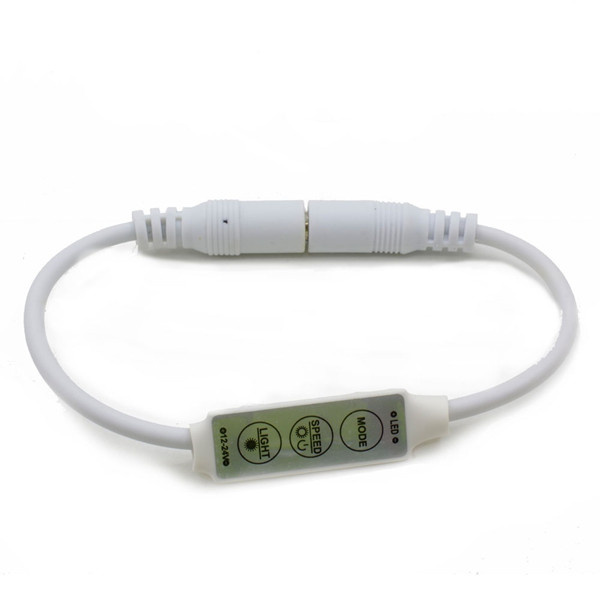

Product DescriptionMini 3 keys Single color controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can adjust the lights brightness according to their actual requirement.
This controller is with 8 kinds of monochrome dynamic model,including flash blasting, breathing, getting brighter and darker , strobe, flicker and other models.With wide range of speed level( total have 10 level of speed). At the same time, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.
Technical ParametersWorking temperature:-20-60ºC
Input voltage:DC5~24V
Output:1 circuit
Connection mode:Common anode
controller size:L40.0×W12.0×H5mm
Net weight:11g
Gross weight:11g
Static power consumption:<0.5W
Output current:<6A(each circuit)
Output power: 12V < 72W
Direction for use:Powered the controller, it will recover to the same models as the same model before cut out the power last time . This controller have 3keys in total, their functions are as follows:
Mode button: the first time to press this key can turn to the dynamic models,then press this key can choose the following dynamic models ,their sequence are as below:
| NO. | Model | NO. | Model |
| 1 | Breathing model | 5 | 3:1 flash |
| 2 | Half breathing model | 6 | Flash alternately |
| 3 | strobe | 7 | Blasting flash |
| 4 | 1:3flash | 8 | Fade automatic |
Speed button:In dynamic mode, press this key to adjust the changing speed(total is 10 level of speed);In Static mode, each time you press this button, the brightness would reduce one level (total 10 brightness),press this button last for morn than one second,this mini controller will be turn off, then press random of the key can be turn on the controller again and recover to the same model as that before turn off.
Light button:press this button to switch into the static models,press this button for one time ,the brightness will be increase one level,press this key last more than 1 second, can increase the brightness quickly..
