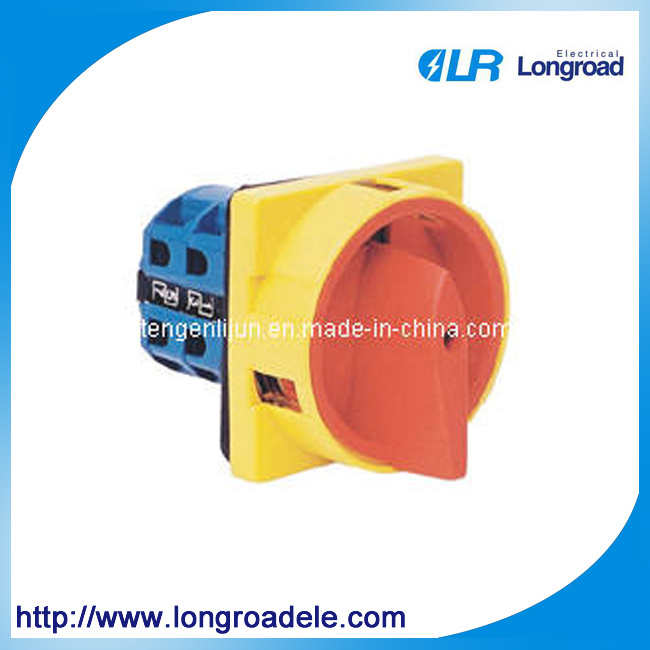

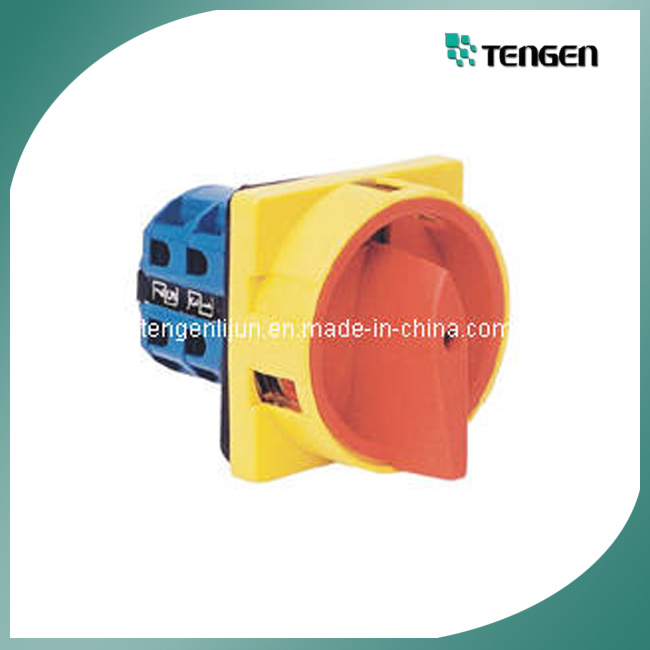

Mini Changeover Cam Rotary Switch (LW26GS Series)

Prod Model:	LW26GS
Model:	Lw26GS
Current Ratings:	20A, 25A, 32A and 63A
Rated Voltage:	440V
Standards:	IEC 60947. 3 and GB 14048. 3
Standard:	Standard
Condition:	New

Product Description

LW26GS series Pad-lock type switches are derivatives of LW26 series rotary switches. Installed in equipment where it requires a pad-lock to lock the switch in certain position. For instance, to fix the switch in ON position, to avoid the unauthorized personnel from operating the switch.

LW26GS series Pad-lock type switch complies with the GB 14048. 3 and IEC 60947. 3.

Classification:

Current ratings	20A, 25A, 32A and 63A
Rated voltage	440V

1) LW26GS-20 has two escutcheon plate types, small escutcheon plate and large escutcheon plate. Others have only large escutcheon plate. Please check out the Dimensions and installation for details.

The figure 1 represents small escutcheon plate, and 2 represents large escutcheon plate. Small escutcheon plate allows two pad-locks and large escutcheon plate allows three pad-locks.

2) LW26GS series Pad-lock switches have Quick-stop and Normal if classified by operation.

Normal(LW26GS /03) has Black escutcheon plate and Black handle.
Quick-stop(LW26GS /04) has Red escutcheon plate and Red handle.
