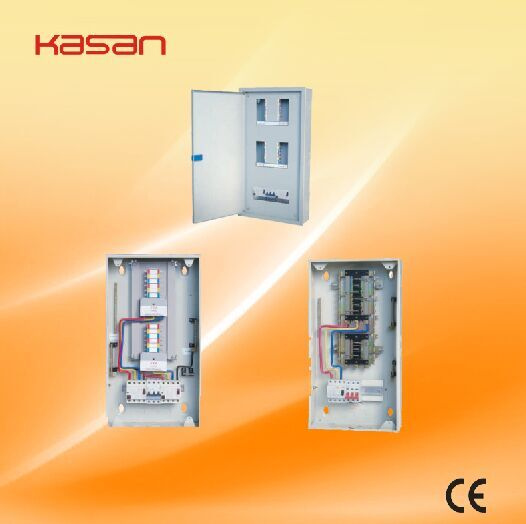

Mini Circuit Breaker Plug in Distribution Box

Name: Mini Circuit Breaker Plug in Distribution Box
Brand: all-electronics-online.com
SKU: 702871312
Availability: InStock
Rating: 4.9 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	emd
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ways:	4.6.8.10.12ways
Model.:	DIN-Rail Plug-in
Color Code:	Ral7032, Ral7035
Operation Voltage:	Low Voltage
Application Range:	High-rise Buildings
Shell Material:	Stainless Steel
Shell Protection Grade:	IP55
Certification:	CCC
Structure:	Protection
Type:	Distribution Metering Box

Product Description

Specifications
made of standard cold-rolled steel and use powder-coating techniques to process the crust. Finished over rust protected steel en
The series products are made of standard cold-rolled steel and use powder-coating techniques to process the crust. Finished over rust protected steel enclosure for lasting durability. The distribution box fit for surface and flush installation.

Specification: Single Phase and Neutral Panelboard
Three Phase Standard Multipole Panelboard

Model	type	phase	busbar	main switch
flush	plug-in	triple	double	ELCB+Isolator
surface	plug-in	triple	double	ELCB+Isolator

surface model	H	W	D	E	F
2+2WAY	590	360	105	580	350
4+2WAY	665	360	105	655	350
4+4WAY	740	360	105	730	350
6+2WAY	740	360	105	730	350
6+4WAY	815	360	105	805	350
6+6WAY	890	360	105	880	350
8+2WAY	815	360	105	805	350
8+4WAY	890	360	105	880	350
8+6WAY	965	360	105	955	350
10+2WAY	890	360	105	880	350
10+4WAY	965	360	105	955	350
10+6WAY	1040	360	105	1030	350
12+2WAY	965	360	105	955	350
12+4WAY	1040	360	105	1030	350
12+6WAY	1115	360	105	1105	350

Model	type	phase	busbar	main switch
flush	din-rail	triple	double	ELCB+Isolator
surface	din-rail	triple	double	ELCB+Isolator

surface model	H	W	D	E	F
2+2WAY	556	360	105	546	350
4+2WAY	610	360	105	600	350
4+4WAY	664	360	105	654	350
6+2WAY	664	360	105	654	350
6+4WAY	718	360	105	708	350
6+6WAY	772	360	105	762	350
8+2WAY	718	360	105	708	350
8+4WAY	772	360	105	762	350
8+6WAY	826	360	105	816	350
10+2WAY	772	360	105	762	350
10+4WAY	826	360	105	816	350
10+6WAY	880	360	105	870	350
12+2WAY	826	360	105	816	350
12+4WAY	880	360	105	870	350
12+6WAY	934	360	105	924	350
