Zhejiang Zhengguang Electronics Co., Ltd. >> Mini DIN Power Connector (MPC-3-001B)

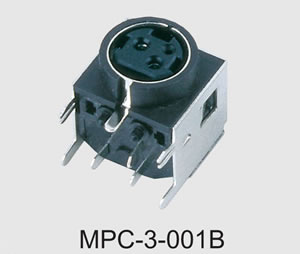

Mini DIN Power Connector (MPC-3-001B)

Mini DIN Power Connector (MPC-3-001B)
Price: US $ 0.01/Piece
Trade Terms: FOB,EXW
Min Order: 5000/Piece
Pay Type: T/T
Mini DIN Power Connector Series

Temperature: -20C ~ +70C
Rating: 3P: 1&2: 20VDC 7.5 A MAX
3: 20 VDC 1A MAX
4P: 20VDC 7.5A
Contact resistance: ≤ 30mΩ MAX
Insulation resistance: ≥ 100MΩ MIN
Withstand voltage: 250V AC/ 1 minute
Insertion force: 4.5KGF MAX
Withdrawal force: 0.8KGF MIN
Life: 5000times
Usage: Used in PCB, TV, Audio/Video machine, Home appliance and so on
Prod Model: MPC-3-001B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender: Female
Application: PCB
Zhengguang electronic Co., Ltd. is a professional manufacturer specializing in making kinds of electronics components(connectors). The company was originally set up in 1996 and now it has become one of the largest electronic connector manufacturer in our city.

Our products include XLR connectors, mini DIN connector(connectors), DIN connectors and audio-video composite-board, RCA pin jack, wp push terminal, power jacks, phone jacks, CS type21(42) sockets, optical jack \ plug \ USB connectors \ d sub connectors etc. The products extensively used for household appliances, computer, multimedia communication and so on.

These years, we have been continuous awarded by the local government for the honour of "advanced enterprice", "civilized company", "the first tenth strong companys" in our town.

Adhering to the object of "to create the brand of zhengguang, reach the world standard, establish of top-ranking manage, devote for faithful service", all the staff takes every effort on business cooperation with companies and manufactories for brighter future.
