| Prod Model: |
FRC-210-G1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rpgpwski Coil Model: |
Frc-210-G1 |
| Integrator Model: |
G1(Miniature, Transfer to 333mv Output) |
| Input Current Range: |
1-1000A |
| Output: |
333mv |
| Other Output: |
Could Make 1-3V Output |
| Perimeter: |
210mm |
| Inner Diameter: |
60mm |
| Accuracy: |
1.0 |
| Phase Shift: |
90 Degrees |
| Could Be Customize: |
Yes |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

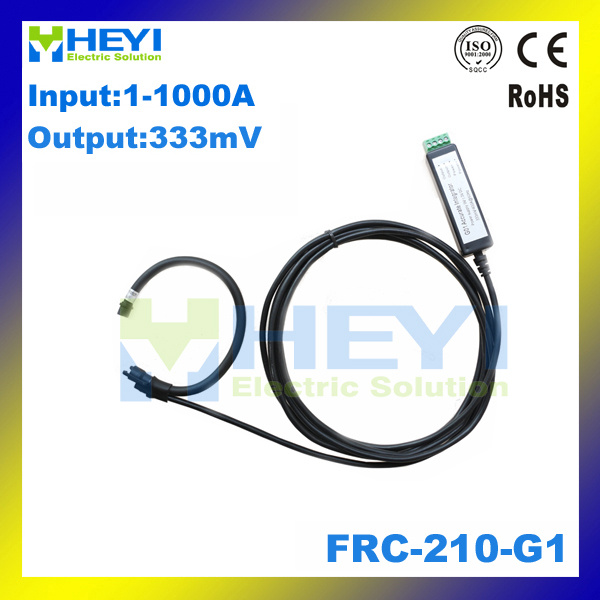

Note: FRC-210-G1 rogowski Coil includes a Rogowski Coil which is 210mm(Perimeter) and an Intergrator (G1).
Clamp-on Flexible Rogowski coil Current Transformer is an AC current transducer for permanent installation. They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil with a signal conditioner providing accurate, true rms measurement, of voltage or current.
Features
1. AC current probe utility by the Rogowski principle
2. Flexible and lightweight
3. Coil length from 20cm to 100cm
4. Suitable to measure currents from mA to 100kA
5. Easy & quick installation in uninterruptible power line
6. Simple to install in applications where space is limited
7. The size of the Rogowski coil can be specified independently of the primary current
8. Does not suffer from magnetic saturation
Applications
1. Very high current monitoring
2. DC ripple measurement
3. Harmonics and transients monitoring
4. Power monitoring & control systems
5. Applicable in eletronic Watt-hour meter
6. Power quality monitoring
7. Electric furnace
8. Harmonic management
9. Relay Protection
Equipment
G1 integrator, mini size and Amplified output to 333mV from mV level. Moreover G1 help to make better
accuracy.
Model | Current Range (A) | Voltage output (mV) |
FRC-210-G1 | 1-1000A | 333mV |
FRC-350-G1 | 1-2000A | 333mV |
FRC-420-G1 | 1-3000A | 333mV |
FRC-510-G1 | 1-4000A | 333mV |
FRC-600-G1 | 1-5000A | 333mV |
FRC-800-G1 | 1-10000A | 333mV |
Product Display

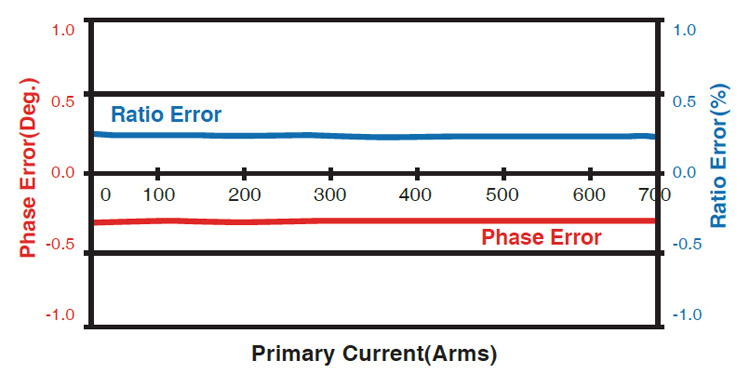

Output graph
Applications
- Measuring devices, lab instrumentation.
- DC ripple measurement
- Analysis of harmonics, power measurements
- Very high current monitoring
- Measuring starting transients of electric motors.
- Sudden short circuit testing
- Protection system for slip-ring induction motors.
- Measuring the currents flowing in the framework of a large generator.
- Shaft Current measurements
- Measuring the current in Electromagnetic Launchers
