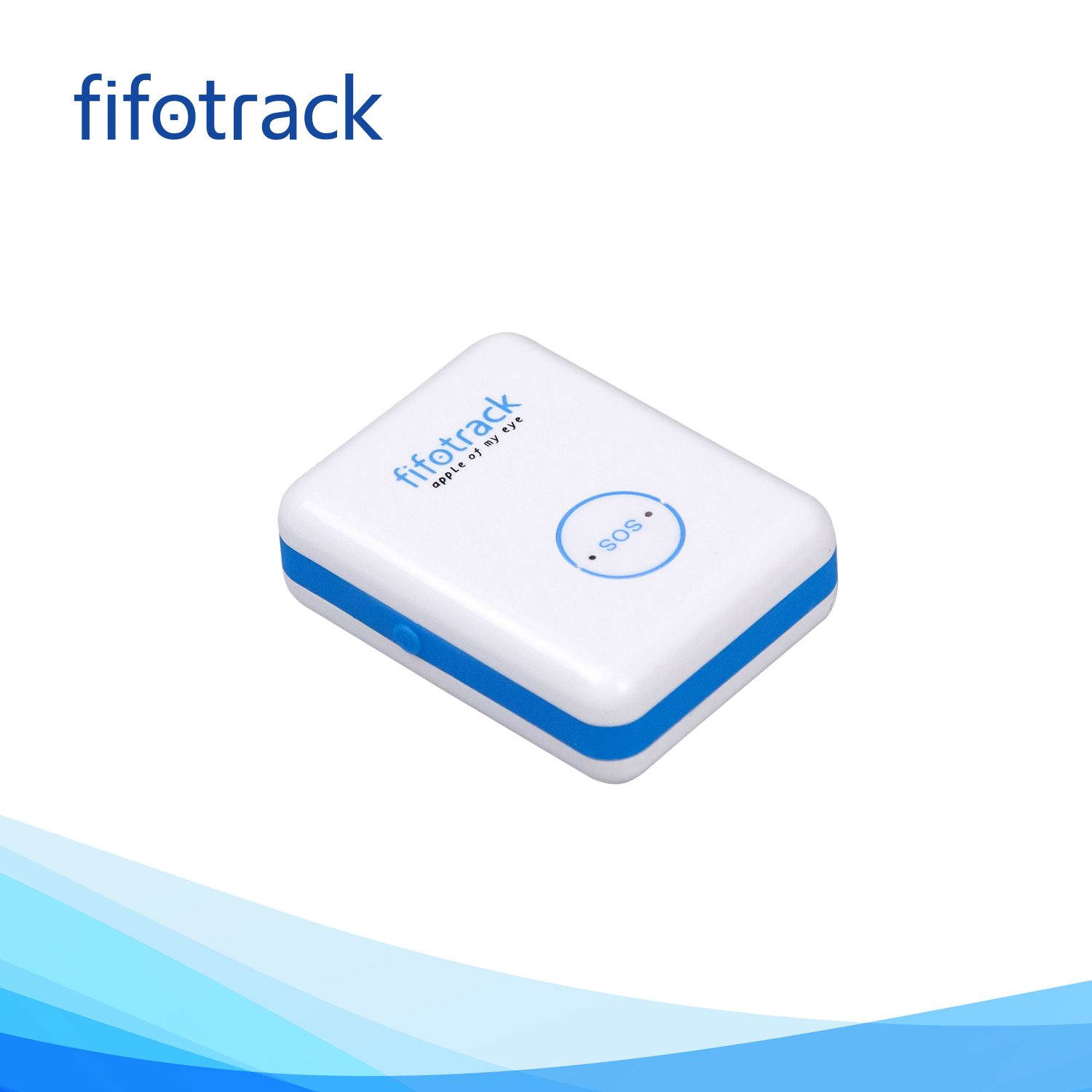

Mini GPS Tracker for Kids/Elders/Asset Tracking/Vehicle Tracking
| Price: |
US $ 40-52/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
1 About fifotrack - R&D-oriented, absolutely original supplier.
- Brand concept: first in first out
- Core value: never lose any existing customer
- 2 years warranty 2 Key Features - Small size 52*40*17mm- Long battery life
- IP65 waterproof
- Voice monitoring 3 Battery Life | Time interval | Battery life |
| 30 seconds time interval | 11 hours |
| 1 minute time interval | 13 hours |
| 5 minutes time interval | 58 hours |
| 10 minutes time interval | 82 hours |
| 60 minutes time interval | 96 hours |
| Tracking by calling or SMS (without time interval) | 148 hours |
4 Tracking Functions- GPS+GGPS+GSM Base Station Dual Tracking
- Real Time Tracking
- Time Interval Tracking
- Distance Tracking
- Direction Change Tracking
- Mobile Phone Tracking5 Main Functions- Real Time Tracking
- Mobile Phone Tracking

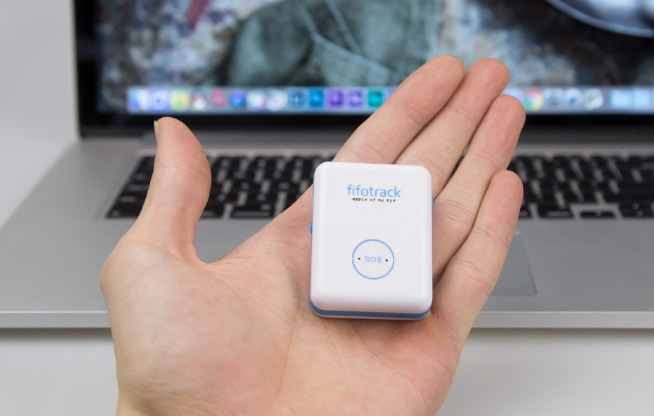

- Small size 52*40*17mm
- 6 days battery life
- Voice monitoring
- IP65 Waterproof
- GEO-Fence Alarm
- Fall down alarm
- SOS Alarm
- 8 MB Flash Memory
- OTA6 Specification| Item | Specification |
| Dimension | 52*40*17mm |
| Weight | 43g |
| GSM Module | SIMCOM800C |
| GPS Module | U-blox7Q |
| Charging Voltage | DC 5V/1A |
| Internal Battery | 550mAh/3.7V Lithium battery |
| Power Consumption | Average 4~5mA standby current |
| Battery Life | 30 seconds time interval - 11 hours |
| 1 minute time interval - 13 hours |
| 5 minutes time interval - 58 hours |
| 10 minutes time interval -82 hours |
| 60 minutes time interval -96 hours |
Tracking by calling or SMS - 148 hours
(without time interval) |
| Microphone | Inbuilt microphone |
| Operating Temperature | -20ºC~70ºC |
| Humidity | 5%~95% |
| LED Light | 2 LED lights indicating GPS/GSM/Power status |
| Button/Switch | 1 SOS button, 1 power switch |
| Flash Memory | 8MB (Buffer storage: GPRS 16000 units, SMS 4000 units) |
| Sensor | 3D Acceleration sensor |
| GSM Frequency Band | GSM 850/900/1800/1900MHz |
| GPS Sensitivity | -161dBm |
| GPS Start Speed | Cold start 70s
Hot start 5s |
| Position Accuracy | 10m |
| I/O Port | 1 USB port |

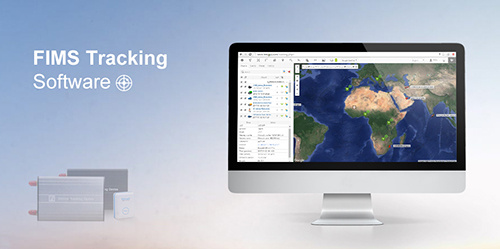

7 FIMS Tracking Software ................................................................
Demo
Login page: www.fimsgps.com
ID: fims
Password: 123456
................................................................1. Stop car remotely
2. Route planning
3. Driver management
4. Re-branding domain support
5. Support multiple maps multiple languages
6. ACC on/off status alarms, door status alarms and so on
7. Manager/User account privileges, object management.
8. Smart polygon Geo-fence zone management with different colors
9. Fuel monitoring with various fuel reports, including fuel filling, fuel theft, fuel level graph and cost10. Driving behavior analysis reports such as speeding, fatigue, idling, parking and harsh braking alarms
8 Quality Control (2 years warranty)8.1 Components are qualified and prestigous brands | GSM Module | Quectel SIMCOM800 | GPS Module | U-blox 7q |
| MCU | ST STM32F071CBT6 | Charging IC | Powtech PT6112E23E |
| Flash | Winbond W25Q64FVSSIG | LDO | TOREX |
| Internal battery | Army supplier standard | | |
8.2 Engineers
Hardware engineer is one of 5 pioneer engineers who can design and develop intenal antenna GPS tracker in mainland. He has designed a series of classic GPS tracker models since 2004, 13+ yeeas experience in tracking.
Software engineer is a master of famous Hunan University. He has written source code for China national stardard project, 11+ years experice in tracking since 2005. 8.3 Checkpoint
- Hardware design to avoid potential problems
- Components indentify
- Suppliers indentify
- Material incoming quality control
- SMT quality control ( Staff and AOI)
- DIP quality control
- Inprocess Quality Control

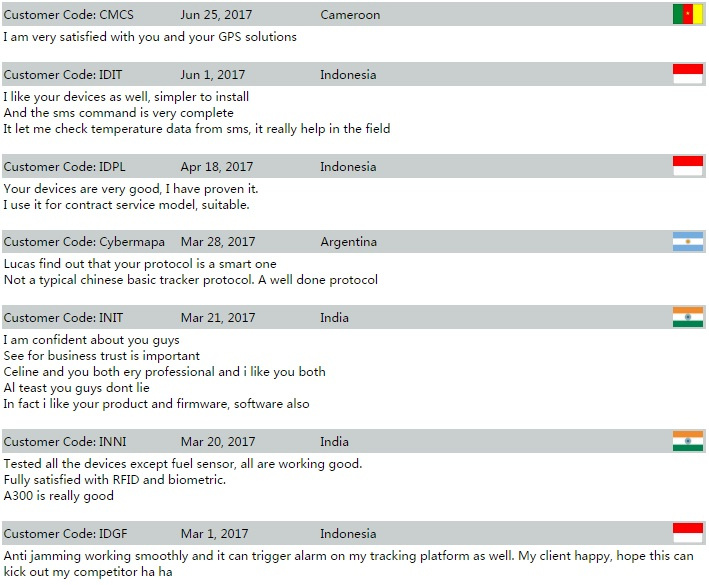

- Final Quality Control 9 Testimoials
| Prod Model: |
Q1 |
| Warranty: |
2 Years |
| Certificate: |
Ce |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Screen Size: |
No |
| Carrier Frequency: |
850/900/1800/1900 MHz |
| Chip: |
U-Blox Max7q |
| Brand: |
Fifotrack |
Fifotrack means "first in first out, tracking the latest technology". Deeply rooted in the core values of integrity and quick action, fifotrack is a R&D-oriented company to meet users' individual demands in the Era of IoT. Our mission is to be one of the most respected Chinese companies through innovative products, services and culture.
Set up by 3 cofounders who have avarage more than 10 years experience in GPS tracker hardware, software and marketing fields, fifotrack has built a top team which enables us to provide full GPS tracking solution to our customers, including GPS tracker hardware design and manufacture, user friendly FIMS tracking platform and professional sales technical support.
Besides, OEM/ODM project is one of our core advantages. Our in-house engineers and quick action enable us to deliver customized features faster than competitors.
Brand concept: First in first out
Core value: Never lose any existing customer
