Mini Tracker with 3 Months Standby GPS Tracker
| Price: |
US $ 22-28/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

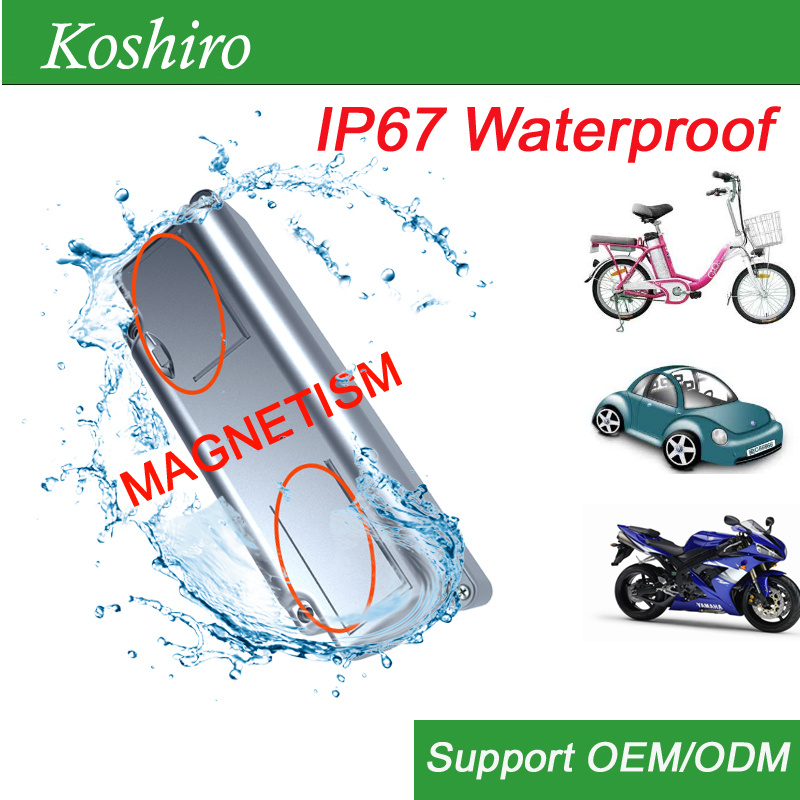

The small locator GPS tracker for Car ,bicycle; electric vehicle; motorcycle car; trunk valuables etc.
Main features:The appearance of fine; ultra small slim, "GPS+GPRS+WiFi+LBS multi-mode positioning accurate, static sleep power-saving design, real-time positioning, intelligent monitoring Global universal
1, real-time positioning
2, historical track
3, electronic fence
4, voice monitoring
5, vibration alarm
6,remote shutdown
7, super long standby
| category | specification |
| ID design | Delicate, lighter size |

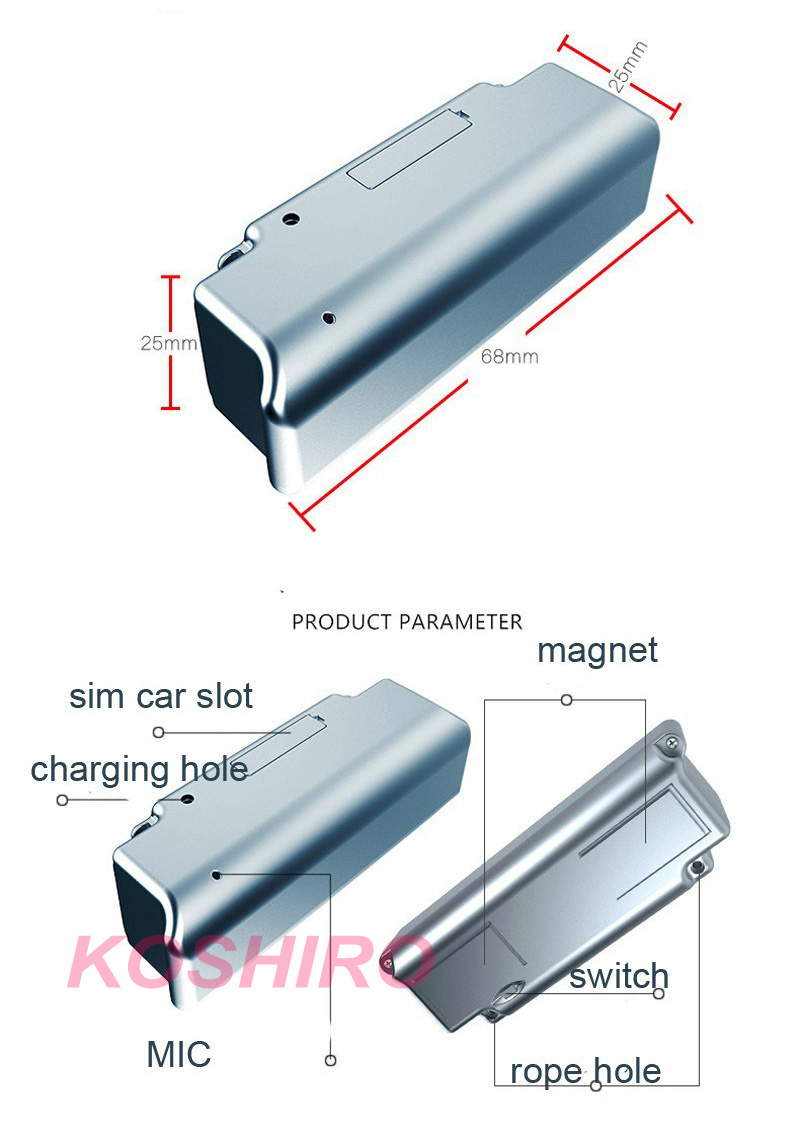

| Whole machine size | 25*25*68mm |
| Packing size | 11.5cm * 7.5cm * 3.5cm |
| Weight | 60g no packaging, 124g packaging box |
| colour | silvery |
| button | one button(power/SOS button) |
| screen | no |
| gps antenna | High sensitive ceramics active antenna |
| GSM antenna | FPC antenna |
| battery | 3400mAh |
| SIM card slot | 1 pc |
| G-sensor | support |
| I/O port | DC seat charging |

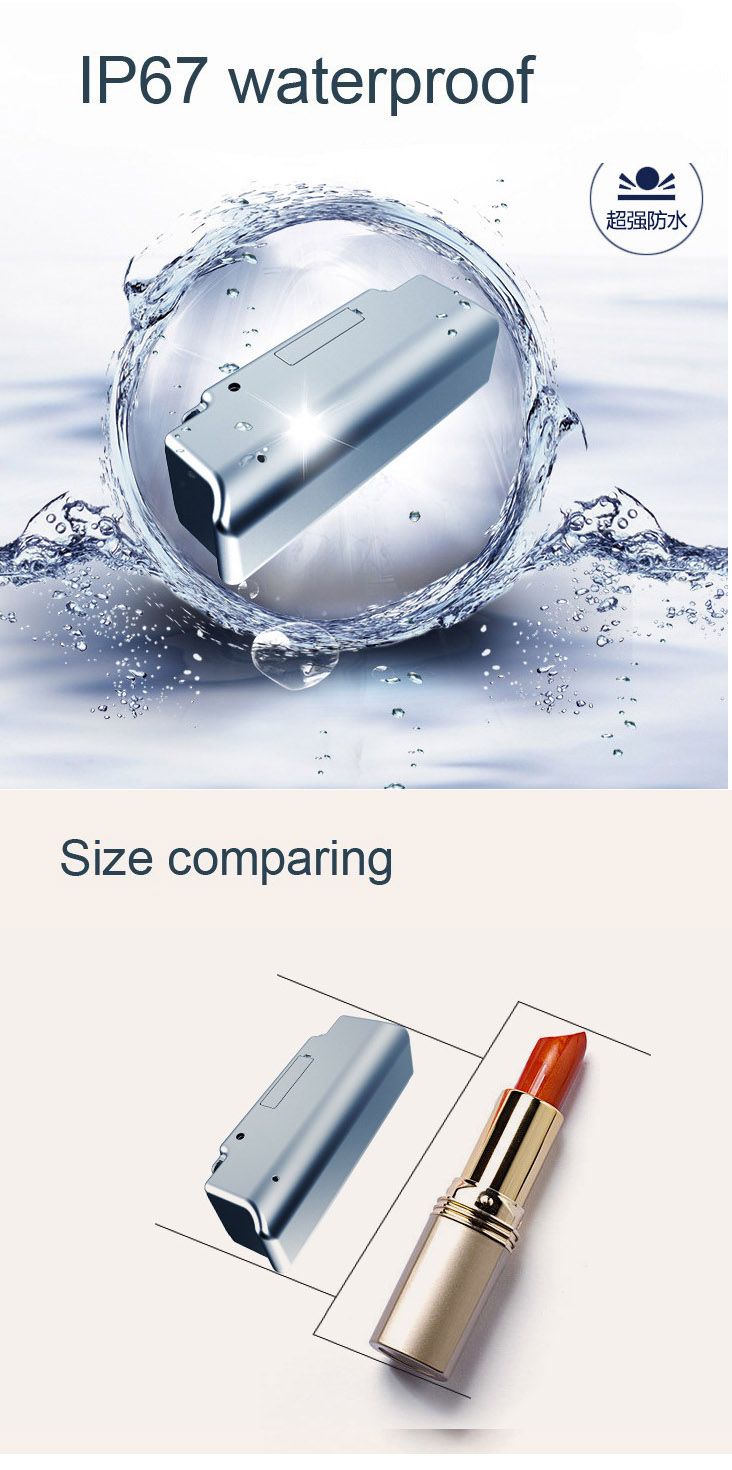

| Waterproof grade | IP67 depth waterproof |
| Hardware parts | CPU | MTK MT6261 |
| GSM frequency band | 850/900/1800/1900MHz |
| GPS chip | MTK3337 |
| GPRS | class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| WIFI location accuracy | 10~50M |
| GPS location accuracy | 5~15M |
| LBS location accuracy | 100-1000M |
| Minimum standby current | less than 0.5 mA |
| Average stndby current | less than 2.5 mA |
| Average working current | around 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | can approval by 3C,CE&ROSH |
| GPS antenna | Built in high sensitivity ceramic antenna |
| GSM antenna | FPC antenna |
| G-sensor | Support |
| MIC | Support |
| Texture of material | ABS environmental protection material |

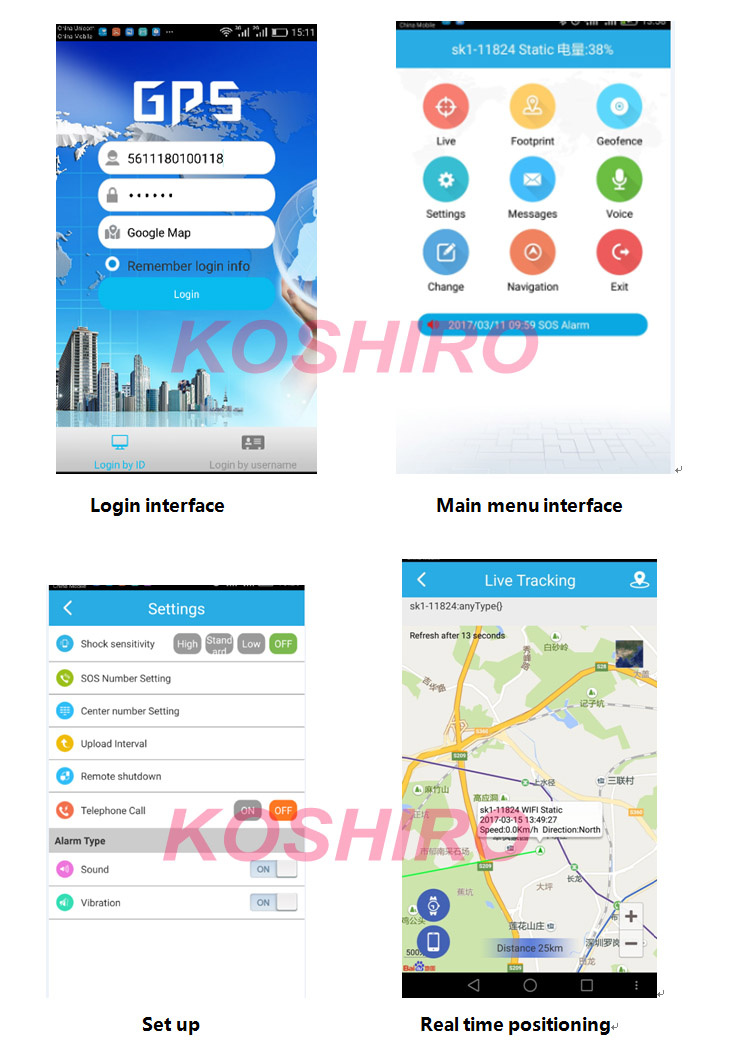

| software parts | supported operating systems | Support android 2.3 and above system, IOS5.0 and above. |
| Language support | Simplified Chinese and English |
| GSM+GPRS+GPS+wifi | GPS+LBS+WIFI Multi-modal positioning(Optional) |
| support AGPS | Cold start 26 seconds positioning |
| call function | Voice monitoring (monitoring) |
| power management | Ultra-low power consumption of power management,intelligent dormancy |
| Smart Geo-fence | Outside the range setting can be automatic alarm |
| historical route | Can check history of three months |
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting parameters |
OEM/ODM customized project would be highly welcome.Certifications
Why choose IHD Technology Limited(KOSHIRO)?
Our R & D team
We specialize in Smart Wearable & Health Life Product field for several years, We have a group of professional and passionate exprot team.
Over 15 Chinese engineers work together to realize a idea to a real product, responsible for such services like external industrial design, internal structure configuration, PCB layout and technique support during all process of ODM development process.
Our Facilities
We have our all workshops for design to production, such as moulds making, plastic injection, CNC prototype making, Silk printing, Painting spray, SMT, Hardware making and final mass assembling line, which enable us to provide one-stop OEM & ODM services all in house.
Thanks in advance!Zoe Liao
TEL:86-13809885387 Web: www.koshiro.cn
| Prod Model: |
KG003 |
| Battery: |
3400mAh |
| Whole Machine Size: |
6cm*4.5cm*0.7cm |
| GPS Chip: |
Mtk3337 |
| GPRS: |
Class12 |
| GPS Signal: |
L1,1575.42MHz C/a |
| GPS Channel Number: |
22 Channels |
| GPS Location Accuracy: |
5-15m |
| GSM Antenna: |
FPC Antenna |
| G-Sensor: |
Support |
| GSM Frequency Band: |
850/900/1800/1900MHz |
KOSHIRO aims to become leading company in Safty/ healthy and devotes to bring people a scientific, high quality of life, healthy, safe, fashionable lifestyle.
IHD Technology Limited over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.
For now, we have wide experience on GPS Tracking devices\Smart Health Watches\ Heart Rate Fitness Pedometer Bracelet etc...Products of high quality, fashionable, widely used in people's life, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
We also have powerful hardware development capabilities. OEM & ODM project are mainly business of us. IHD to always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions and technical problems.
For our current products, we offer beautiful price and can delivery the goods between 2 ~ 15 days.
OEM/ ODM project, Private label service, Package customized are also warmly welcomed.
