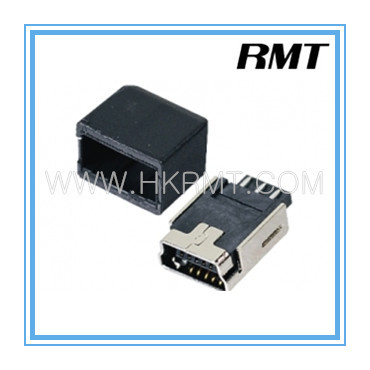

Mini USB Connector (USB145-0245-H6171)

Name: Mini USB Connector (USB145-0245-H6171)
Brand: all-electronics-online.com
SKU: 778161765
Availability: InStock
Rating: 4.6 (68 reviews)

Price:	Negotiable/Piece
Trade Terms:	CFR,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

1.MATERIAL:
1.1 Housing: LCP Black
1.2 terminals:Copper Alloy
Gold plated in contact area:
Tin 40u"min plated in termination
Nickel Plated overall
1.3 Shell:SPCC t=0.40mm,
Nickel 40u"min Plated overall

2.ELECTRICAL CHARACTERISTICS:
2.1 Rating Current :1.5 Ampere
2.2 Rating Voltage :30 V Max
2.3 Contact Resistance:50 Milli ohms
2.4 Insulation Resistance:100 Mega ohms Min.

3.MECHANICAL CHARACTERISTICS:
3.1 Connector Mating force:35N MAX
3.2 Connector Unmating force:7N min
3.3 Durability:5000Cycles.

4.ENVIRONMENT CHARACTERISTICS:
4.1 Operating temperature:-0ºC to +50ºC
4.2 Storage temperature:-20ºC to +60ºC

Prod Model:	USB145-0245-H6171
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Female
Application:	FPC

HongKong RMT Electronics Co., Ltd. is a professional manufacturer engaged in producing and developing switches, jacks and connectors. Our products can be widely used in the precision electronics industry like smartphone, projector, earphone, digital camera, auto electronics and portable DVD and other relative fields. We accept OEM and ODM order, welcome to visit our factory.

Quality is the core of enterprise development. RMT has been developing quickly and healthily these years based on strict quality management. We have strong technical force, advanced testing equipments, a group of specialized R&D engineers and skillful workers. We strictly carry out ISO9001 and formed our own quality system. We strictly carry out this standard in management, which enables us to earn a good reputation among our domestic and overseas customers.

We uphold the "high-quality products with the best price, win-win solution " of operating principles. RMT will provide you with best products and best service.
