Miniature Strain Gauge Force Sensors
Price: |
US $ 90/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Name:
Miniature Strain Gauge Force Sensors
Features:
1. Miniature Strain Gauge Force Sensors utilize strain gauge technology.
2. These force sensors are made of 17-4PH Stainless steel and have good pressure bearing ability.
3. The force sensors offer high accuracy. They have non-linearity of 0.5%.
4. The force sensors are connected to the flexable cable which cab be used drag chains.
Applications:
Miniature Strain Gauge Force Sensors are applied in force measurement is small space installation, such as feeling tester for keyboard switch, compression measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.

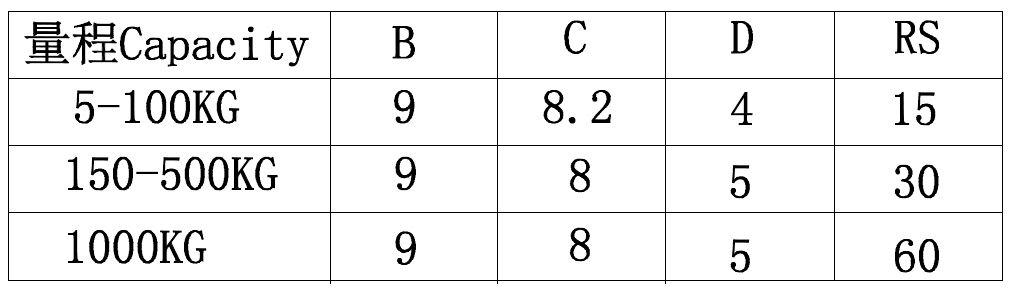

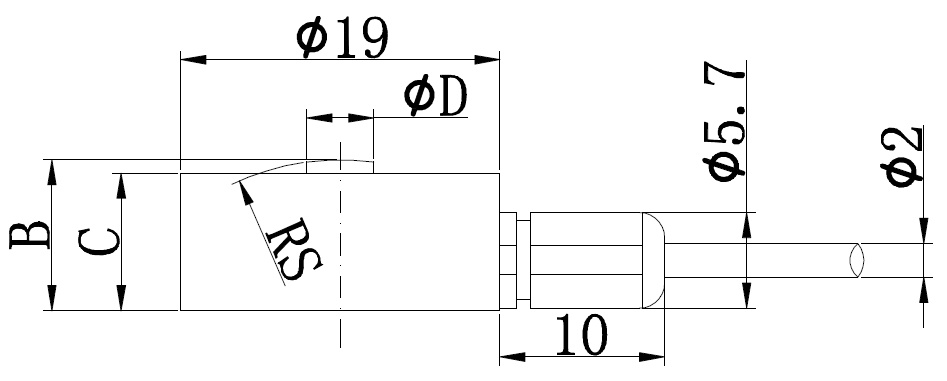

Overall Dimensions:
Capacity:
3, 5, 10, 20, 30, 50, 100, 200, 300, 500, 1000KG
Technical Specifications:
Rated Output | 1.0~1.5mV/V | Material | Stainless Steel |
Zero Balance | ±2%F.S. | Insulation | ≥5000MΩ/100VDC |
Non-linearity | 0.5%F.S. | Recommended Excitation | 5V |
Hysteresis | 0.5%F.S. | Maximum Excitation | 10V |
Repeatability | 0.5%F.S. | Compensated Temp Range | -10 ~ 60ºC |
Creep(30min) | 0.5%F.S. | Operating Temp Range | -20 ~ 80ºC |
Temp Effect on Output | 0.5%F.S./10ºC | Safe Load Limit | 120% |
Temp Effect on Zero | 0.5%F.S./10ºC | Ultimate Load Limit | 150% |
Input Impedance | 350 ± 5Ω | Cable Size | Φ2 ~ 3 × 2m |
Output Impedance | 350 ± 5Ω | Wire Connection | Ex+ : Red; Ex- : Black; Sig+ : Green; Sig- : White |
Our main products are micro force sensors, load cells, pressure sensors, control instrumentation and automation system supplies.
Our products can be applied in the traditional force measurement field, and also widely used in the industrial automation production line, and the new fields, i.e. metallurgy, etc. With our services and quality, we have earned a very high reputation in the domestic, and also our products are exported to the customers worldwide including Germany, Italy, the United States, Russia, Australia and other regions.
If you want to get more information,please feel free to contact me

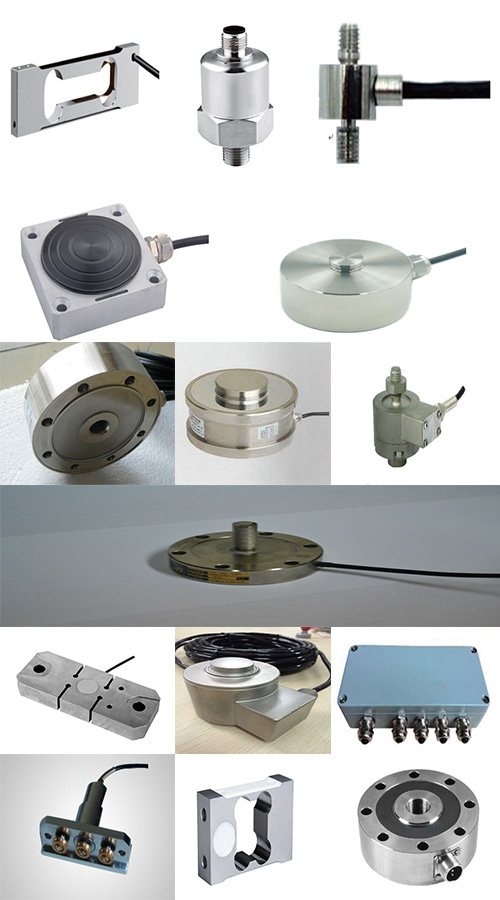

Choose suitable load cell according to your application.
With the development of sensor technology, custom design is getting increasingly common. Customizable variables include:CapacityRated output(mV,0-5V,0-10V,0-20mA,4-20mA)Material(Al,alloy steel and stainless steel)DimensionsElectrical connectionIngress protection classWorking temp.Other parameters are crucial to your application. At SINODER,you can find universal products like: Compression load cell
Tension compression load cell
Strain gauge load cell
Button load cell
Torque transducer
Force Sensor
Weight Load cellSINODER is also an expert in customized force transducers like: Load pins for overload protection
Bolt sensor for fastening force monitoringAnd other tailor-made force sensors for auto industry,robotics,medical equipment,etc. With experienced engineers in force sensor and load cell application area, SINODER knows exactly what you need after you talk to us.Being expert in strain gauge based load cell manufacturing technology and custom-made service, we are confident in providing the most suitable products to meet your applications perfectly. Quality,we not only know its importance,but also act in the same way. Lifelong technical support starts the moment you contact us. Send us an inquiry,we'll get back with solutions! Compression Load Cell Tension Load Cell Torque Transducer Load Pin Force Sensor Load Cells
Prod Model: |
SLFC-19 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
