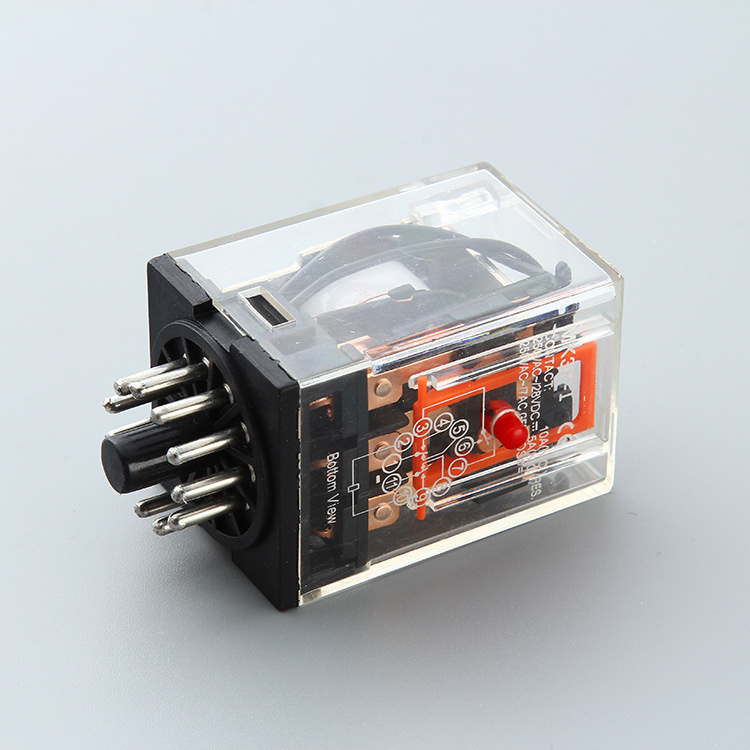

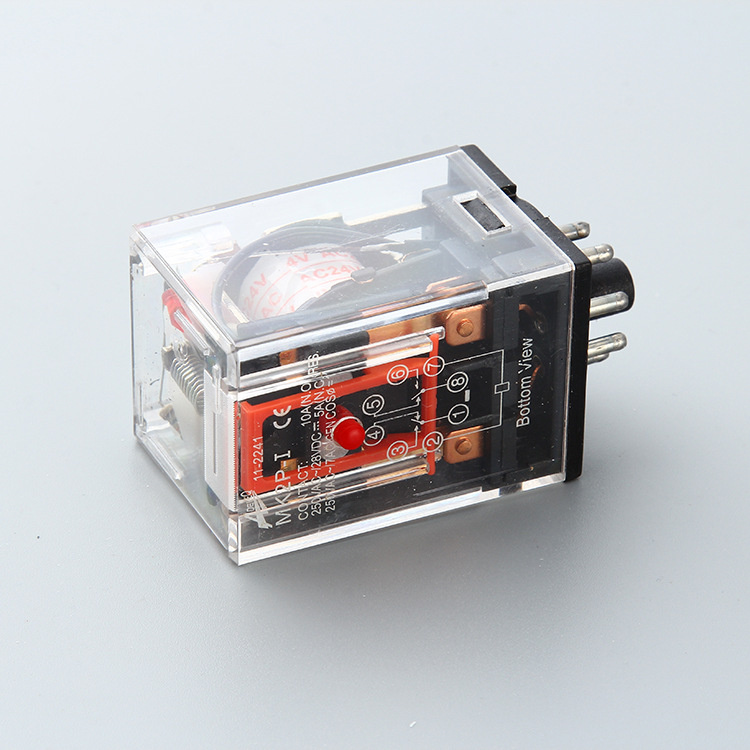

Mk3p-1 10A 3z Miniature Electromagnetic Relay for Industry

Name: Mk3p-1 10A 3z Miniature Electromagnetic Relay for Industry
Brand: all-electronics-online.com
SKU: 834220465
Availability: InStock
Rating: 4.3 (105 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Specifications

11PIN Relay MK3P 10A relay
Good quality
Excellent services
Provide OEM services

Technical Data:

Electrical Relay DC 24V MK3P-1/S 24V Relay 8 Pins General Purpose Relays

Product Model		MK3P
Outline Dimension(L×W×H) (mm)		35×35×53(mm)
Contact Form		3Z,3C
Initial Contact Resistance		100mΩ (1A 6VDC)
Coil Voltage		6VDC~110VDC; 6VAC~240VAC
Operate Time (at nomi. Volt)		10ms
Release Time (at nomi. Volt)		5ms
Coil Power(W)		1.5W, AC:2.5VA
Contact Rating		10A 250VAC/30VDC
Insulation Resistance		100MΩ,500VDC
Dielectric Strengh	Between Open Contact		1000VAC 1min.
	Between Coil and Contact		1500VAC 1min.
Electrical Life		1×105
Mechanical Life		1×107
Max. Switching Voltage		250VAC/30VDC
Max. Switching Current		10A
Max. Switching Power		300W/2500VA
Impact Resistance		Stability 100m/s2 Intensity 1000m/s2
Humidity		95% R.H.+40%
Temperature Range		-55~+70°C
Vibration Resistance		1mm 10~55Hz
Construction		Dust vover

Prod Model:	MK3P-1
