| Prod Model: |
MS-796 |
| Interface: |
BNC\VGA\HDIM |
| Compression Format: |
H.264 |
| Certification: |
Emark |
| Input Channels: |
6 |
| Interface Display: |
Six |
| Brand: |
Mingshang |

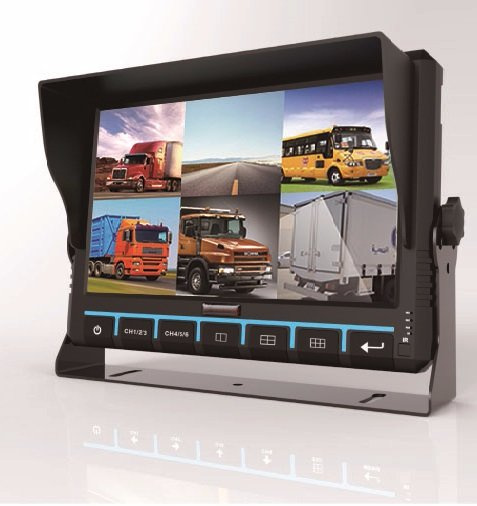

Product Description
1. HD 6 channels, 6 split, 4 split, 2 split, H.264 compression
2. Dual SD memory storage support(Max. 256GB) and SSD support(optional)
3. Built-in GPS module, G-sensor
4. Resolution of monitor: 1280 x 3(RGB) x 720
5. Support CVBS/AHD camera
6. 6CH AV inputs with 1080P/720P/960H/D1
7. 3G/4G/Wi-Fi optional
8. With memory function
9. 6pcs auto trigger for each channel
10. With grid line
11. Support password protection function
12. Built-in circuit protection chip from overvoltage & reversing voltage
13. Professional in vehicle power design, 9-36V DC wide voltage range
14. Support 4 video mode: manual, alarm, timing, trigger
1. support 1080P/720P/CVBS camera
2. six channels,can work with 6 cameras
3. support 4G/3G(optional )
4. Wi-fi optional
5. Built-in GPS,G-sensor
6. touch screen
7. With password protection.
8.support 2 PCS SD card
9. support SSD
10.Can trigger certain recorded footage as events to be overwrite protected
11.GPS tracking: Recorders speed ,location and exact driving route ,G-sensor togther
12.G-sensor :Recognizea sudden movments
13.Delayed power off
Features:
Industrial Linear power IC , Touch screen
HD 6 channels, 6split video H.246 Compression,audio :G.711A
Ø Linux operating system
Ø Touch screen(optional)
Ø 2xSD memory storage support(Max. 256GB) and SSD support(optional)
Ø Built-in GPS module
Ø Resolution of monitor: 1,280 x 3(RGB) x 720 Pixels
Ø Video quality up to 1080P resolution
Ø Supports 6 ch video input,audio intput on/off
Ø External USB2.0 interface, can upgrade the product and download files
Ø Support 4video mode: manual, alarm,, timing, trigger
Ø Additional 4Ch inputs with triggers
Ø Full CH, Auto Scan, Trigger CH & Live display
Ø Support CVBS/960H/AHD 1080p camera
Ø 6CH AV Inputs with 1080p/720P/960H/D1
Ø Date & Time Stamp ,vehicle information,GPS information,ch number on the file
Ø When Playback Recorder still go on
Ø Setup on the LCD menu
Ø Map Tracking available
Ø G-sensor applicable
Ø Built-in Circuit protection chip from overvoltage & reversing voltage
Ø Professional In-Vehicle power design, 9-36V DC Wide Voltage Range
Ø Support password protection function
Ø With memory function
Ø 6pcs auto trigger for each channel
Ø With grid line
with
Specification of monitor:| Panel Size | 9" LED Digital Panel | | Video System | NTSC / PAL Automatic detection | | Resolution | 1,280 x (RGB) 720 Pixels | | Brightness | 450 nits | | Screen Mode | 16 : 9 Wide Screen | | Field of View | Top 85° / Bottom 85° / Left 85° / Right 85° | | Camera Input | 6CH | | Dimmer | Automatic by CDS sensor or Manual Adjustment | | Audio Output | 0.5W speaker | | Impact Rating | 6G | | Camera Connector | 4 Pin aircraft | | Power Input | DC9-36V / Automatic Power On/Off by ACC | | Operating Temp. | -20°C ~ +75°C / -4F° ~ +167F° | | Storing Temp. | -30°C ~ +85°C / -22F° ~+185F° | | Weight | 600g |
|
Ÿ Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity
Ÿ 6CH AV Inputs with AHD 1080N/720P/960H/D1/CIF optional,
Ÿ 6CH local recording with 1080N resolution in real time
Power:
Ÿ Professional In-Vehicle power design, Liner power IC 9-36V DC Wide Voltage Range
Ÿ Multi protection circuits like under-voltage, short, reversed plug-in
Ÿ Smart power management system, shutdown under low voltage, low consumption
Data Storage:
Ÿ Special file management system to encrypt and protect the data
Ÿ Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
Ÿ Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
Ÿ Support SSD
Ÿ Support 2pcs SD card storage, maximum 256GB
Transmission Interface:
Ÿ Support GPS/G-sensor
|
|
| Technical parameter: |
| Item | Device parameter | Performance |
| System | Main processor | Hi3520DV300 |
| | Operating system | Embedded Linux OS |
| | Operating language | English |
| | Operating interface | Touch screen/ support mouse |
| | Password security | User password/Admin password |
Audio
&
Video
| Video standard | PAL/NTSC |
| | Video compression | H.264 |
| | Image resolution | 1080N/720P/960H/D1/CIF |
| | Playback quality | 1080N/720P/960H/D1/CIF |
| | Compound mode | A variety of ways |
| | Image display | Single/split/QUAD/2ch display optional |
| | Audio Compression | G.711A |
| | Audio recording | Audio & Video synchronized recording |
| Recording & Playback | Recording mode | Manual/Alarm/Auto |
| | Video bit rate | Full frame 4096Mbps,6 classes image quality optional |
| | Audio bit rate | 8KB/s |
| | Storage media | SD card + SSD storage |
| | Video inquiry | Inquiry by channel/Recording type |
| | Local playback | Playback by file |
| Firmware upgrading | Upgrading mode | Manual/Automatical |
| | Upgrading method | USB disk |
| Interface | AV input | 6ch aviation interface |
| | SSD | 1SSD |
| | SD card | 2 SDXC High speed card (up to 256GB) |
| | USB interface | 1 USB 2.0 (support U disk/mouse/download) |
| | Ignition input | 1 ACC signal |
| | UART | 1 LVTTL Level |
| | Disk lock | 1 |
Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd
Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.
MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for
- Commercial and School Buse
- RV's and Motorhomes.
- Cargo and Delivery Vans.
- Trucks and Trailers.
Products:
1. Trailer camera system
2. Forklift camera system
3. HD heavy duty camera system in wired and digital wireless
4. Mobile DVR
5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat
6. Recordering 4CH wireless camera system
MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.
MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).
MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
