| Prod Model: |
stabilizer |
| Series: |
SBW |
| Type: |
Auto Voltage Regulator |
| Capacity: |
SBW(6-60kVA) |
| Effeiciency: >96%: |
Output Voltage: 380V |
| Waveform Distortion: <3%: |
Response Time: <0.5 |
| Input Voltage: 380V/400V: |
Ambient Temp: -10c~+40c |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SBW |
| Frequency: |
Industrial Frequency |
| Brand: |
Kewang |
Product Description

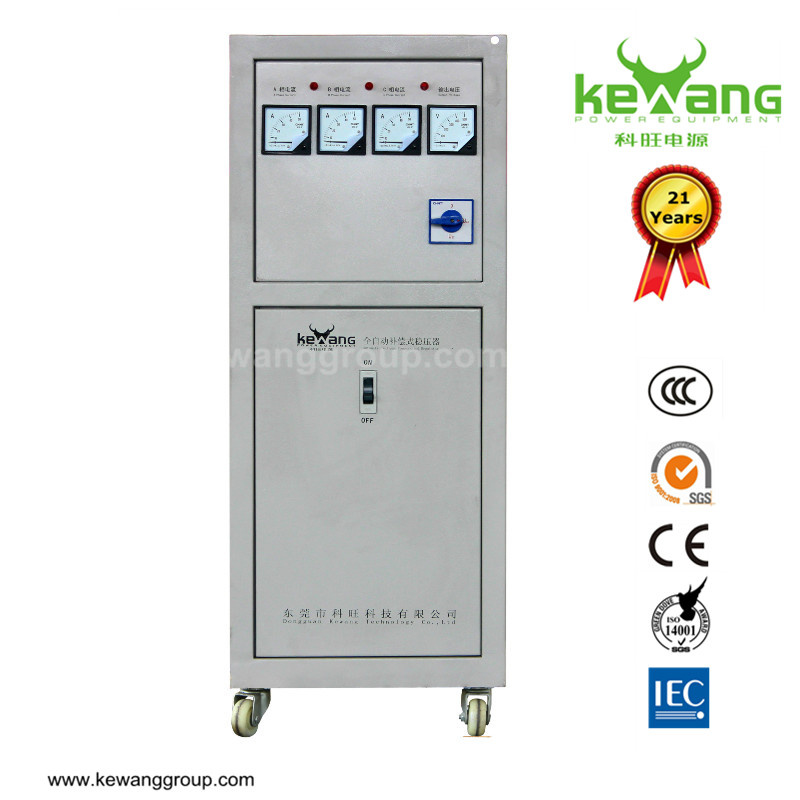

Most Populart High quality AC fully automatic stabilizer
SBW/DBW series Automatic voltage regulator is designed to stabilize the AC voltage. Our highlight of design is by using the superposition principle, compensation method to make the most of the stability of the system output power directly from the power grid.When the grid voltage fluctuation or load changes caused by the voltage fluctuation, can automatically maintain the stability of voltage output. We have variety, complete specifications of such kind of products with small volume, light weight, load wide adaptability, no additional additional waveform distortion, high reliability and can work continuously for a long time, convenient in operation and maintenance. Widely used in industrial and mining enterprises, household appliances, medical equipment, mechanical processing, testing equipment, elevators, school, etc.
Features:
--Auto/Manual operation and manual regulation functions.
--LED display for input voltage, output voltage, output current.
--Digital MCU is controlling output voltage. Voltage precision is adjustable.
--Contactless carbon brush, High Reliability and strong resistance ability to overload.
--Stepless voltage regulation to stabilize output voltage.
--Good adaptability to variant loads and ambient.
Technical parameters:
| Capacity range | DBW 3~20KVA | SBW 6~60KVA |
| Input voltage | Single phase 220V ±15%/ ±20%/±30% | 3 Phase 380V/400V±15%/ ±20%/±30% |
| Output voltage | Single phase 220V | 3 Phase 380V/400V |
| Voltage regulation accuracy | ±2~±5 %(settable) |
| Frequency | 50Hz 60Hz |
| Response time | < 0.5s |
| The efficiency | > 96% |
| Waveform distortions | <1% |
| The electric strength | 1500V/60s | 2000V/60s |
| insulation resistance | > 5MΩ |
| Ambient temperature | -10ºC~ +40ºC |
| relative humidity | < 90% |
| Altitude | < 1000m |
Specifications:
| Model | Capacity | Phase | Dimensions(mm) | Weight(kg) | Carton |
| SBW-6 | 6 | 3 | 430*480*760 | 48 | 1 |
| SBW-10 | 10 | 3 | 430*480*760 | 65 | 1 |
| SBW-15 | 15 | 3 | 430*570*760 | 75 | 1 |
| SBW-20 | 20 | 3 | 450*500*1100 | 130 | 1 |
| SBW-30 | 30 | 3 | 450*500*1100 | 150 | 1 |
| SBW-45 | 45 | 3 | 450*550*1260 | 163 | 1 |
| SBW-60 | 60 | 3 | 450*550*1260 | 192 | 1 |
| | | | | | |
| DBW-3 | 3 | 1 | | | 1 |
| DBW-5 | 5 | 1 | 350*360*350 | 25 | 1 |
| DBW-10 | 10 | 1 | 450*480*800 | 80 | 1 |
| DBW-15 | 15 | 1 | 450*480*800 | 90 | 1 |
| DBW-20 | 20 | 1 | 450*480*800 | 136 | 1 |
Application:
COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, production lines, CNC, factory robotics, heavy load machinery, precision machinery.
MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipment.
TELECOM: Data exchange center, Mobile base stations, control centers and transmission relay stations.
Installation site should be no serious effect on the transformer insulating gas, steam, chemical deposition, dust, dirt, and other explosive corrosive medium; It cannot be installed in a condition of significant vibration turbulence
Company View
Kewang was established by the owner Wanghua Fang in 1995 with headquarter in Songshan Lake National High-Tech Industrial Development Zone, Donguan city, Guangdong Province, China. It has a total construction of 50.000s square meters which consist of four subsidiaries, Dongguan Kewang Technology Co., Ltd, Dongguan Kewang Network Power Co., Ltd, Jiangxi Fushanhuitian Industrial Co., Ltd, Myanmar Best Power Industrial and operating Co., Ltd.
Our company is engaged in manufacturing varieties of voltage stabilizer, special transformer, reactor, UPS, frequency converter, generator, high and low voltage transmission and distribution engineering and Energy saving engineering as well as magnetic devices of R&D production.
As a leading power supply company, the attention of Kewang has been significantly placed in quality with all products. 65 % of total 700 employees are qualified with higher education and are often trained by South China University of Technology and Wuhan University to maintain consistent growth, which enables Kewang Group to expand business world widely. It has been awarded with an ISO9001certification, ISO14001 certification; most products have been recognized with CE, UL, and 3C.
With solid science and technology strength, four among 11 projects have been gained the identification of Guangdong Science and Technology Department and achieved first and second prize of Science and Technology. Kewang Group is a member of China Power Supply Society and qualified of manufacturing electric power facilities that is lower than 10kv.
Our Team
We possess a team of 700 with highly skills and experiences, and this make it possiable to achieve the firm's predefined goals and reach the targets. These professionals, of whom half are with a bachelor degree or more, are recruited on the basis of their skills and ability to perform. To manage their operations, in the most efficient and effective manner, the team has been sorted into a number of highly operational units. In addition to this, the professionals are trained on a highly regular basis, for reasons of keeping them at par with the ever changing market.
Why Us
We are amongst the leading manufacturers, suppliers and exporters of this highly commendable range of Industrial Machinery. To live up to this market standing, we engage in the utilization of high grade raw materials and modern machines, in compliance with the set industry norms and guidelines. This ensures the product's performance, capacity, strength and service life. In addition to this, the range is made available in the market at the most reasonable rate possible and is delivered in the timeliest manner.
Infrastructure
The highly advanced infrastructural facility at Electro Magnetic Industries, has been laced with all the necessary machinery and equipment, which helps us in the attainment of a number of the firm's predefined goals and targets. For reasons of attaining smoother and effective management of the firm's operations, the facility has been parted into several highly operational units. In addition to this, the facility is regularly upgraded, for reasons of attaining a better position in the market.
Quality Assurance
To us at Electro Magnetic Industries, providing quality is something of high importance. Thus we engage in the utilization of high grade raw materials and modern machines, as per the norms and guidelines of the industry. This ensures the product's performance and longer service life. in addition to this, the offered range is known to be processed through several rounds of quality examinations, where all manufacturing defects are eliminated with high level of precision and quick response. .
FAQ
Q1: What about the Guarantee?
A: 12 months (for free) from the date of B/L.
Warning:
1). The efficiency of our Voltage Regulators / Stabilizers are 90% to 95% (some series of them reaches 95%), please don't let them work overload!
2). Please make sure that all the electric wires are connected correctly
according to the electric diagram!
Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, We do OEM to customers oversea (not for Chinese customers).
Q3: For your products, can we take our Favourite Colours?
A3: Yes. But we need certain quantity ,any colors or types are avariable as you like.
Q4: Is OEM/ODM available?
A4: Yes, it is! Customized products are provided.
Q5: How about the Packing?
A5:All exported goods are packed with wooden cases, other kinds of case are also avriable as requried.
Q6: How about the Delivery Time?
A6: In generally, it takes 3 days to produce the goods after deposit or L/C.
Q7: What is your monthly output?
A7: 6000pcs (products below 1KVA are not counted).
Q8: What is the MOQ?
A8: For the small capacity products (Automatic Voltage Regulators/Stabilizers below 5KVA ) of the default configuration, it is 5 sets. For the big capacity products, it is 1 set.
Q9: How about the Delivery Terms?
A9: By sea or by air or by road, FOB ,CFR, CIF, etc. any is acceptable .Besides, some items can be sent by international express, such as DHL,TNT,UPS,EMS, Fedex, etc.
Q10: Can you offer Form A or Form E or C/O ?
A10: Yes, no problem, we can apply for it from our local government.
Q11: I would like to know your Certificates?
A11: ISO9001:2008 ( Register Number : UQ110457R0) (Website :www.uicc-web.com)
ISO14001:2004 ( Register Number :UE120063R0) (Website :www.uicc-web.com)
CE can made according to customers' requirements
Fifth-Class Qualification of Transmission and Distribution projects.
License of Telecom Equipments Network (issued No. 25-4751-011468)
Member of CPSS (ZHGT ZI No. 654)
High-Tech Enterprise
Q12 :And patents too
1.)Patent Name : UPS power with dual core isolation transformer leakage inductance
Patent Number : ZL200420095777.2
2.) Patent Name : Three-phase UPS load output isolation transformer balanced structure
Patent Number : ZL200520067082.8
3.) Patent Name : Adjustable Precision winding mode for the square core transformer and reactor coils
Patent Number : ZL201220003826.X
4.) Patent Name : An improved three phase shift reactor
Patent Number : ZL201220004052.2
5.) Patent Name : An improved phase-shifting rectifier transformer
Patent Number : ZL201220035747.7
6.) Patent Name : Oblique laminations for transformer means sewn directly or reactor core in square
Patent Number : ZL201220035746.2
7.) Patent Name : An easy cooling coil transformers and reactors
Patent Number : ZL201220202948.1
8.) Patent Name : A co-yoke filter reactor
Patent Number : 201,210,144,509.4
9.) Patent Name : PV isolation transformer cores for tensioning devices
Patent Number : ZL201320174097.9
10.) Patent Name : Winding mold for photovoltaic reactor with iron core
Patent Number : ZL201320174024.X
11.) Patent Name : Parking solar charging station
Patent Number : ZL201220732233.7
12.) Patent Name : An inverter PV filter reactor coils
Patent Number : 201,320,816,933.9
13.) Patent Name : For transformer or reactor coil end insulating structure
Patent Number : 201,320,817,109.5
