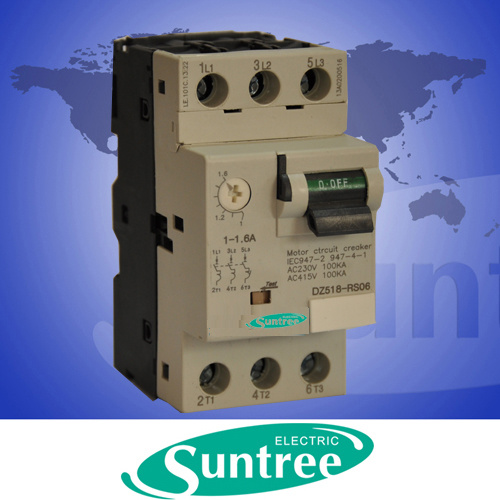

Motor Protective Circuit Breaker MPCB (GV2-RS/LS) MPCB
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
GV2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Working Voltage: |
690V |
| Certificate: |
Ce-LVD, RoHS |
| Frequency: |
AC 50Hz (60Hz) |
| All Standard: |
IEC947-2 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Certification: |
CE |
| Structure: |
Moulded Case Circuit Breaker |
Product Description
Application
GV series motor protection circuit breakers are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.
| Type | Standard power rating of 3-phase motors 50/60Hz in category AC-3 | Setting range |
| 220V | 380V | 415V | 440V | 500V | 660V |
| KW | KW | KW | KW | KW | KW |
| GV1-M01 | - | - | - | - | - | - | 0.1-0.16 |
| GV1-M02 | - | - | - | - | - | - | 0.16-0.25 |
| GV1-M03 | - | - | - | - | - | - | 0.25-0.4 |
| GV1-M04 | - | - | - | - | - | 0.37 | 0.4-0.63 |
| GV1-M05 | - | - | - | 0.37 | 0.37 | 0.55 | 0.63-1 |
| GV1-M06 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | 1-1.6 |
| GV1-M07 | 0.37 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GV1-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| GV1-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6 |
| GV1-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| GV1-M20 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 10-16 |
| GV1-M21 | 5.5 | 10 | 9 | 9 | 11 | 15 | 16-20 |
| GV1-M22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20-25 |
| GV2-M01/ME01 | - | - | - | - | - | - | 0.1-0.16 |
| GV2-M02/ME02 | - | - | - | - | - | - | 0.16-0.25 |
| GV2-M03/ME03 | - | - | - | - | - | - | 0.25-0.4 |
| GV2-M04/ME04 | - | - | - | - | - | 0.37 | 0.4-0.63 |
| GV2-M05/ME05 | - | - | - | 0.37 | 0.37 | 0.55 | 0.63-1 |
| GV2-M06/ME06 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | 1-1.6 |
| GV2-M07/ME07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GV2-M08/ME08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| GV2-M10/ME10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6.3 |
| GV2-M14/ME14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| GV2-M16/ME16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 9-14 |
| GV2-M20/ME20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 13-18 |
| GV2-M21/ME21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 17-23 |
| GV2-M22/ME22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20-25 |
| GV2-M32/ME32 | 7.5 | 15 | 15 | 15 | 18.5 | 26 | 24-32 |
| GV3-M06/ME06 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | 1-1.6 |
| GV3-M07/ME07 | 0.37 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GV3-M08/ME08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| GV3-M10/ME10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6 |
| GV3-M14/ME14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| GV3-M20/ME20 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 10-16 |
| GV3-M25/ME25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 16-25 |
| GV3-M40/ME40 | 11 | 18.5 | 22 | 22 | 25 | 33 | 25-40 |
| GV3-M63/ME63 | 15 | 30 | 33 | 33 | 40 | 55 | 40-63 |
| GV3-M80/ME80 | 22 | 40 | 45 | 45 | 55 | 63 | 56-80 |
