Dehler Technology Co., Ltd. >> Mould Case   Circuit Breaker

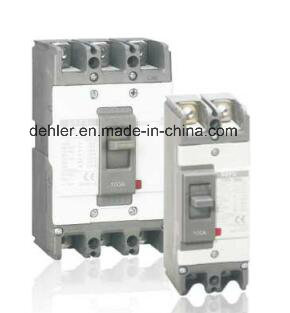

Mould Case   Circuit Breaker

Mould Case   Circuit Breaker
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: DL-100AF
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Manual Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCCB
Poles Number: 3
Certification: CCC

Product Description

Item No. 100AF
Number of poles2PCBN102C
 3PCBN103C
 4PCBN104C
Rated current(A) 15-100
Rated operational voltage(V) Ue AC 690
Rated insulation voltage(V) Ui AC 750
Rated impulse withstand voltage(kV) Uimp8
Release type Magnetic pressure
Overload protection bimetal
Instantaneousel63S6 unadjustable
mounting screw fixing
Our company supplies different kinds of products.High quality and favorable price.We're pleased to get your Inquiry and we will come back to as soon as possible.We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.To perfect our service, we provide the products with good quality at the reasonable price.
